Automatic Level Control Suspension Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

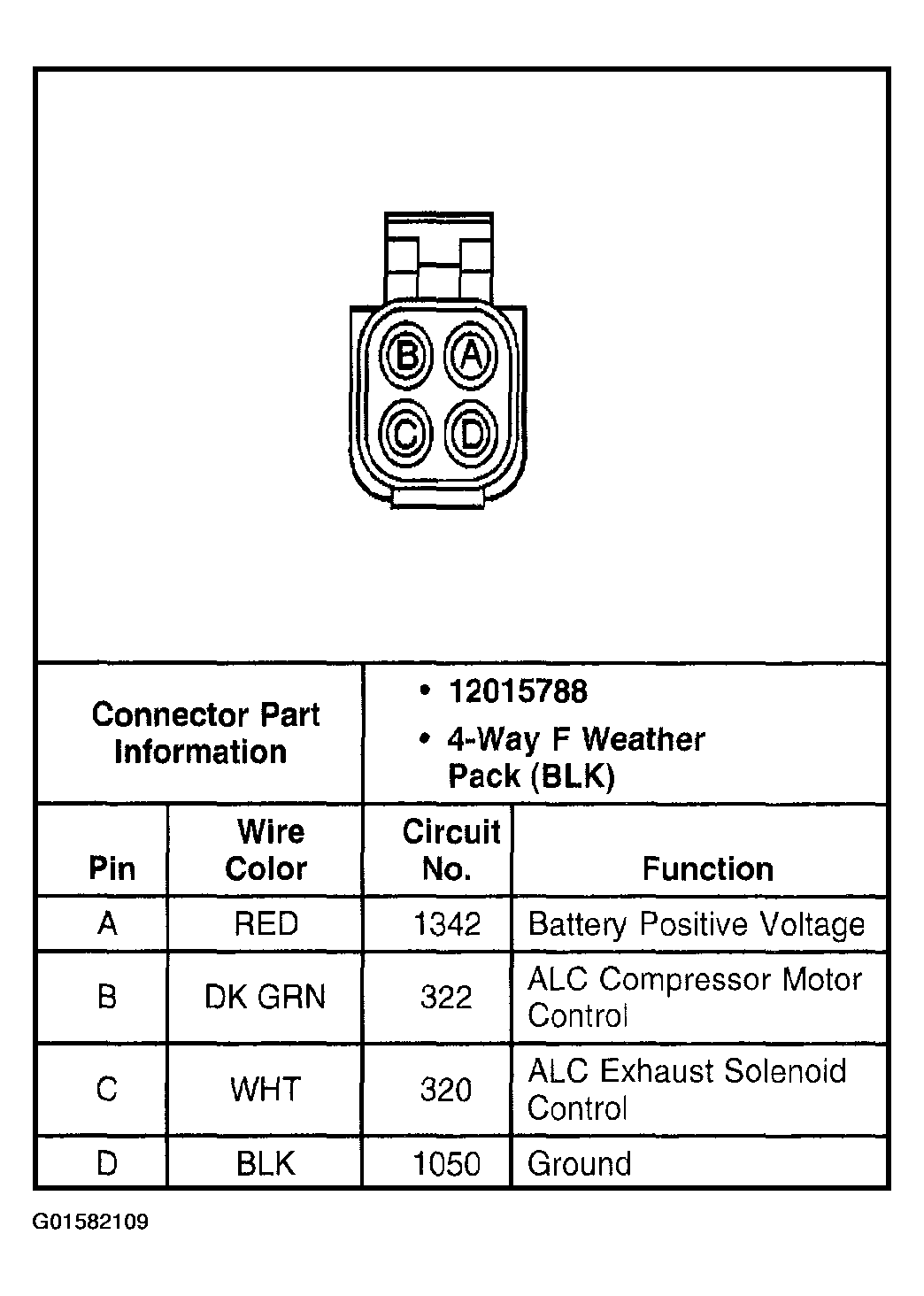

Fig 1: Automatic Level Control (ALC) Compressor

Courtesy of GENERAL MOTORS CORP.

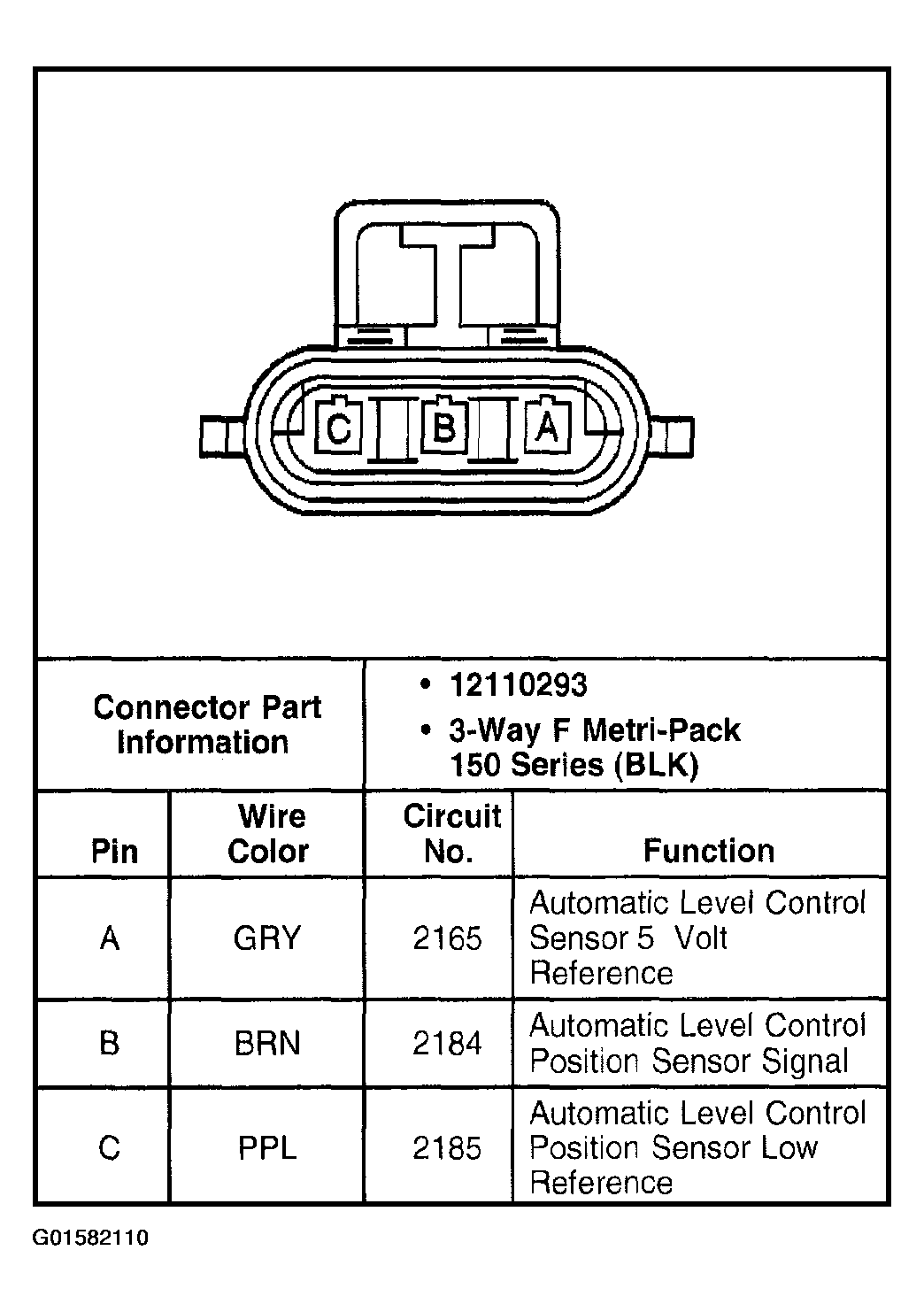

Fig 2: Automatic Level Control (ALC) Sensor

Courtesy of GENERAL MOTORS CORP.
