Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

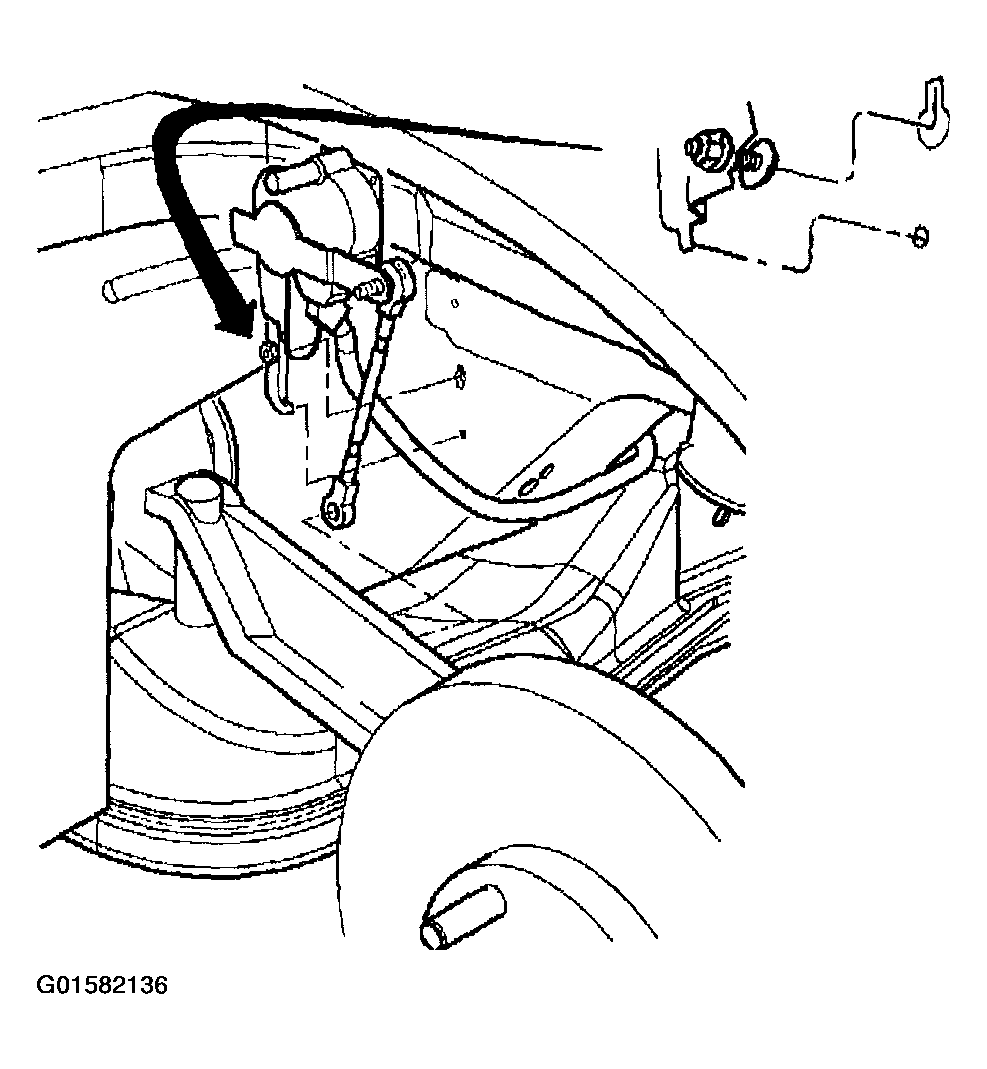

- Insert the head of the sensor mounting stud into the key hole.
- Slide the sensor upward until the anti-rotation tab engages in the lower hole.
- Tighten the sensor mounting nut.
Tighten
Tighten the nut to 9 N.m (80 in lbs).
- Connect the sensor link on the ball stud.
- Connect the height sensor connector.
- Install the wheel on the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
