Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat cushion outer trim panel. Refer to Trim Panel Replacement - Front Seat .
Remove the screws from the seat switch to the trim panel.

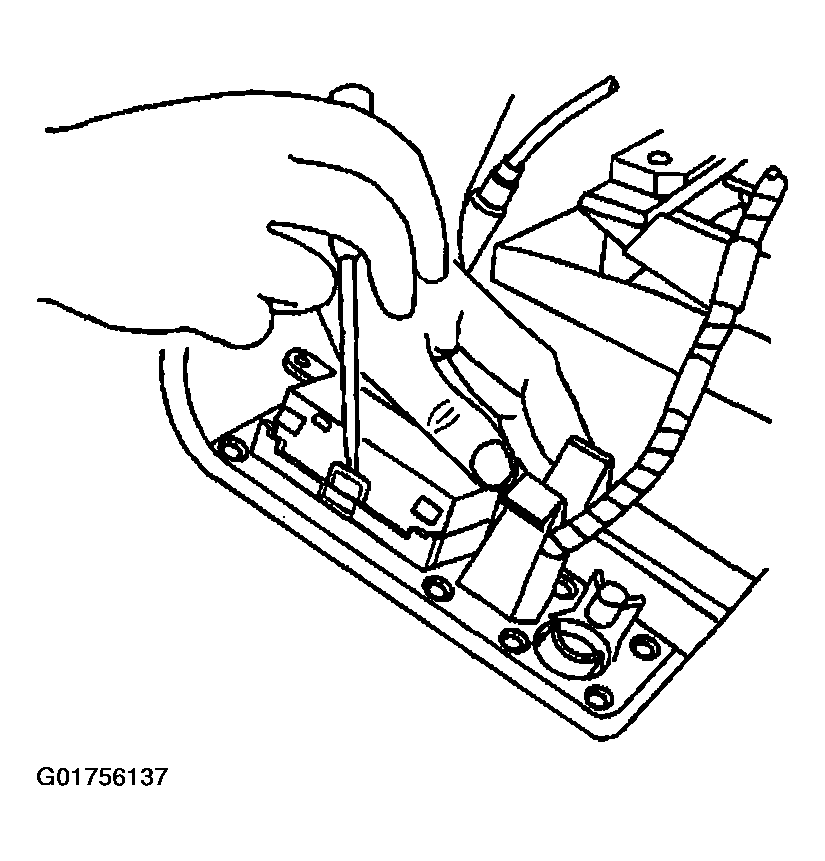

Fig 1: Identifying Seat Switch-To-Trim Panel Screws
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the power front seat switch.

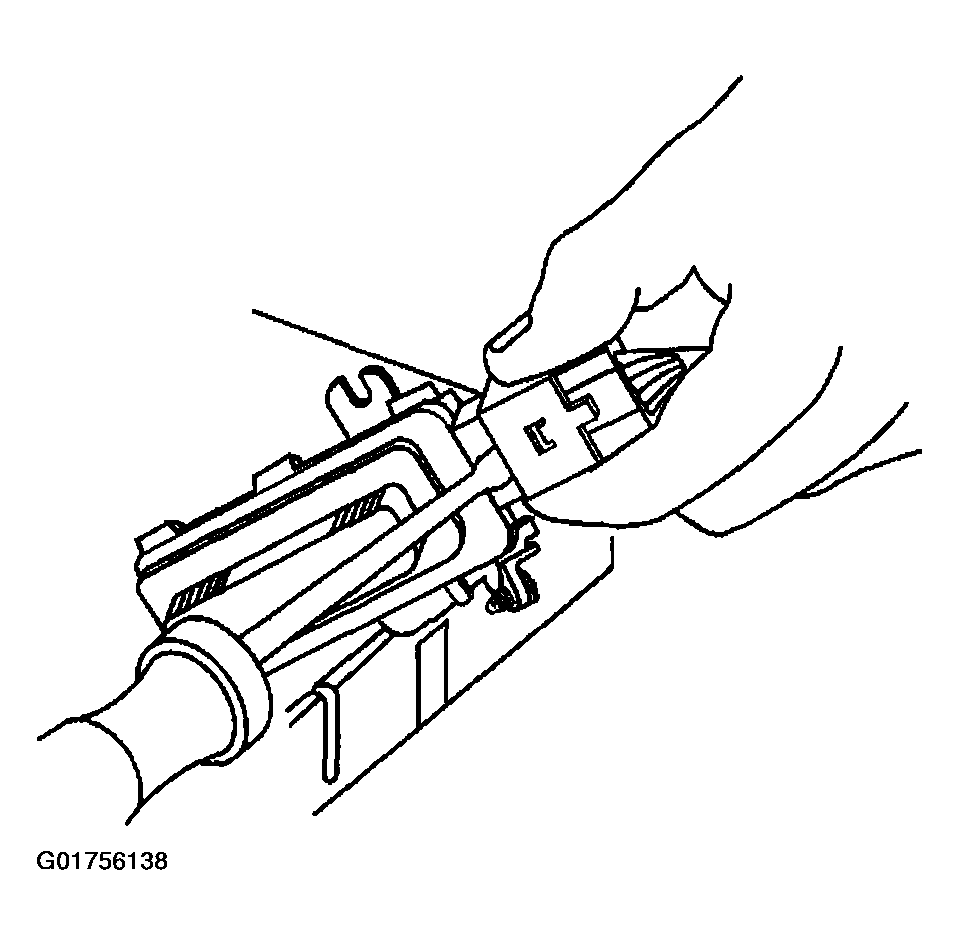

Fig 2: Removing Power Front Seat Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the power front seat switch from the vehicle.
