Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the finish panel to the seat.

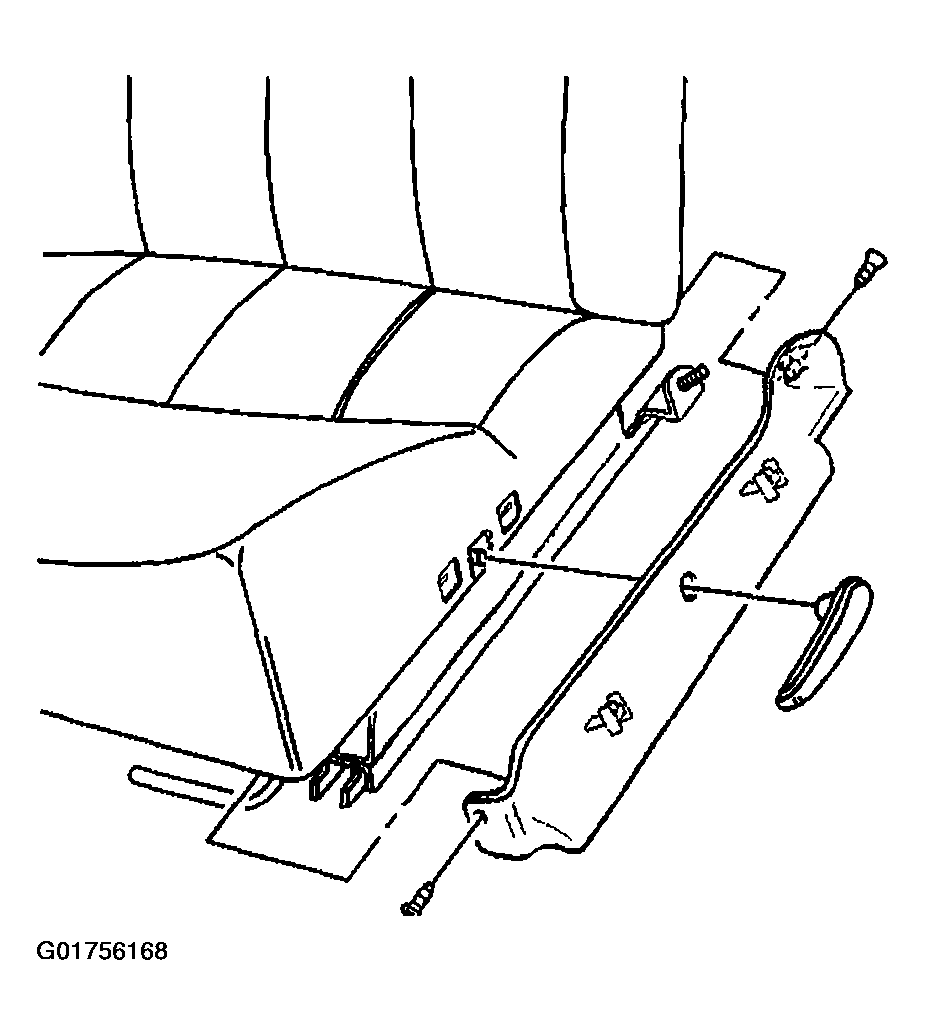

Fig 1: Identifying Front Seat Trim Panel

Courtesy of GENERAL MOTORS CORP.

Connect the power seat switch electrical connector, if equipped.
Use new clips in order to snap the finish panel to the seat cushion frame.
NOTE: Refer to FASTENER NOTICE .
Install the finish panel screws. Tighten the screws to 3 N.m (27 lb in).
Install the retainer to the base of the recliner handle.
Install the recliner handle.
