Power Door Systems Component Views: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

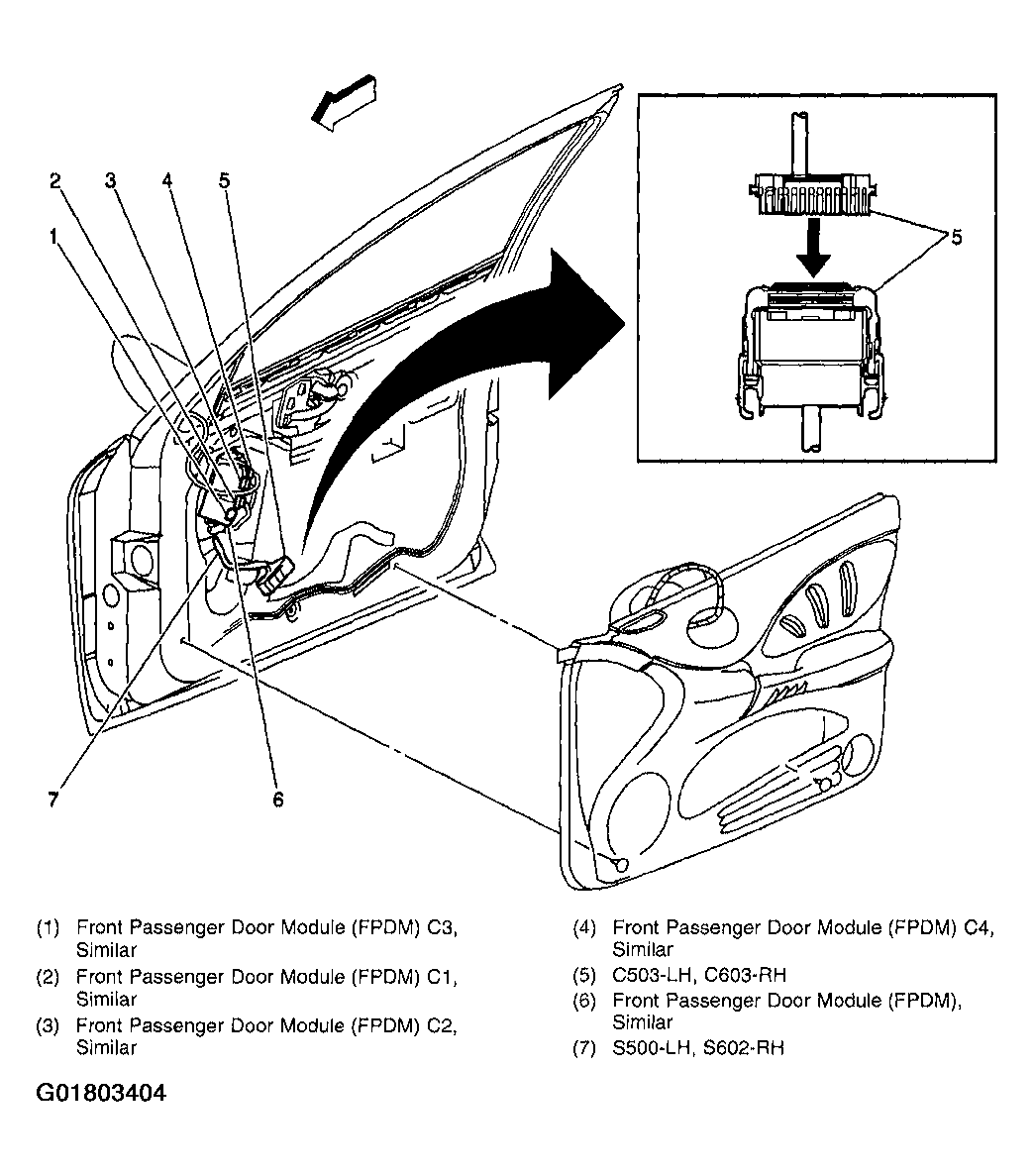

Fig 1: Front Door Passenger Module (FDPM)

G01803404

Courtesy of GENERAL MOTORS CORP.

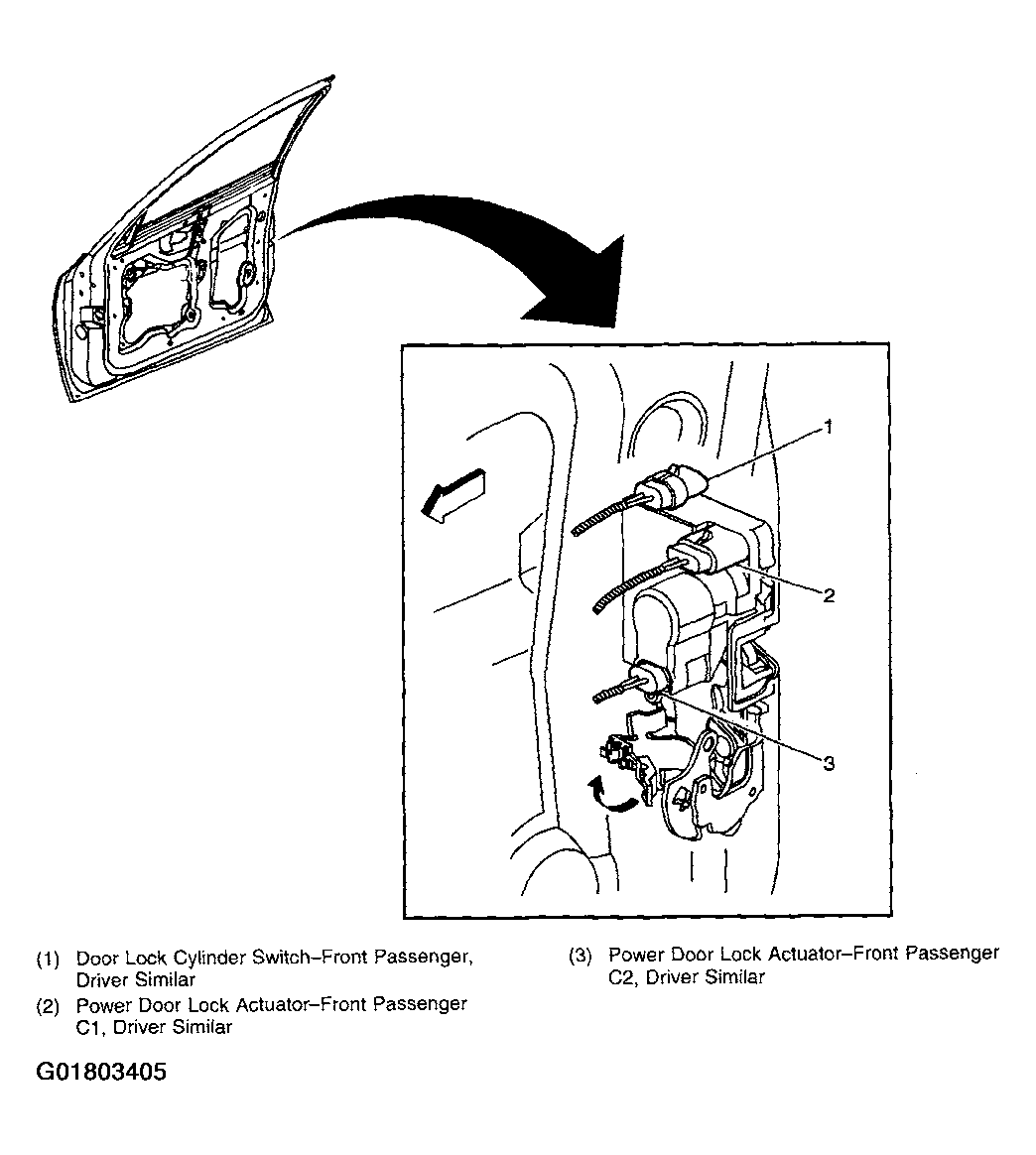

Fig 2: Right Front Door Latch Assembly

G01803405

Courtesy of GENERAL MOTORS CORP.

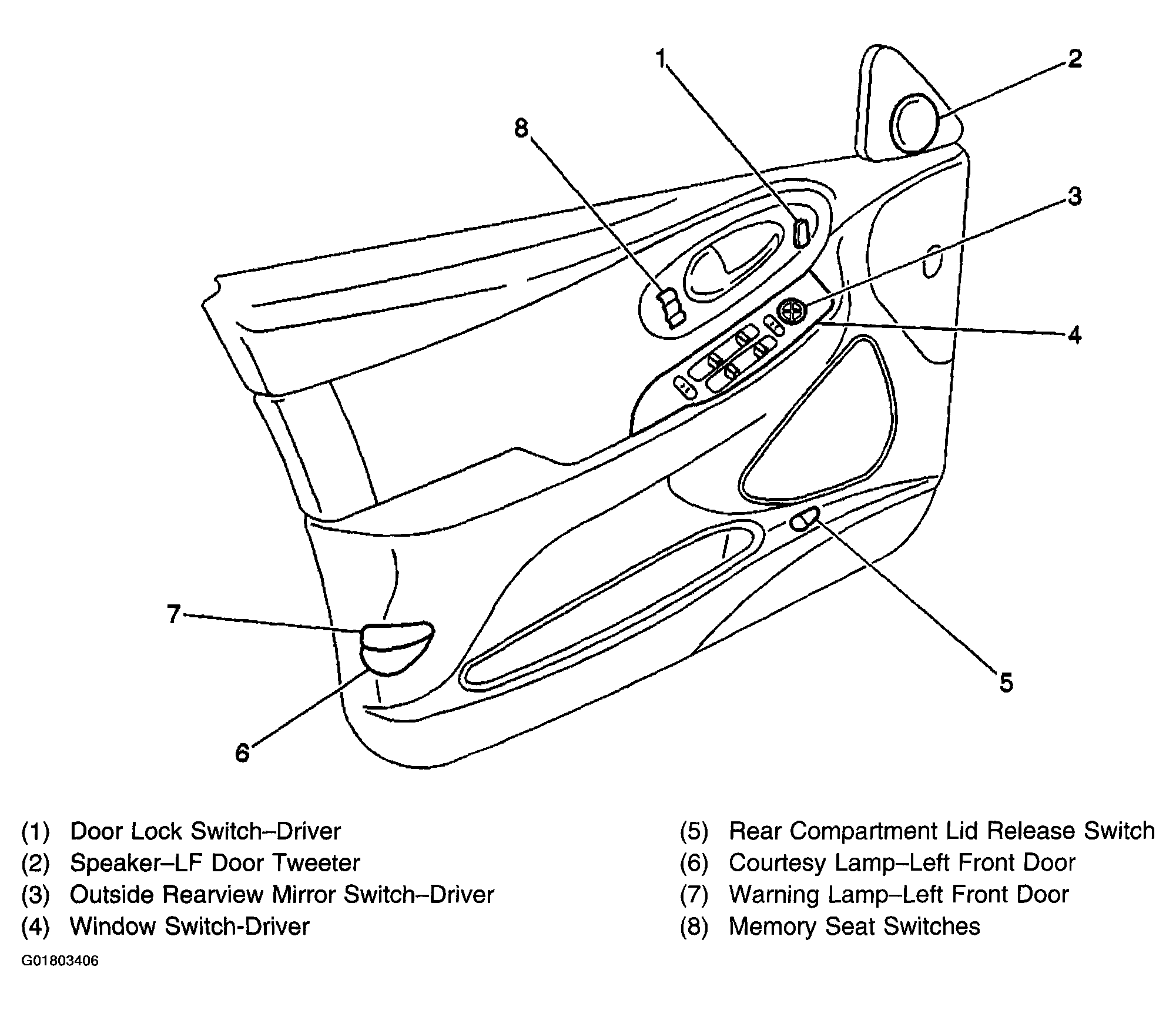

Fig 3: Left Front Door Trim Panel

G01803406

Courtesy of GENERAL MOTORS CORP.

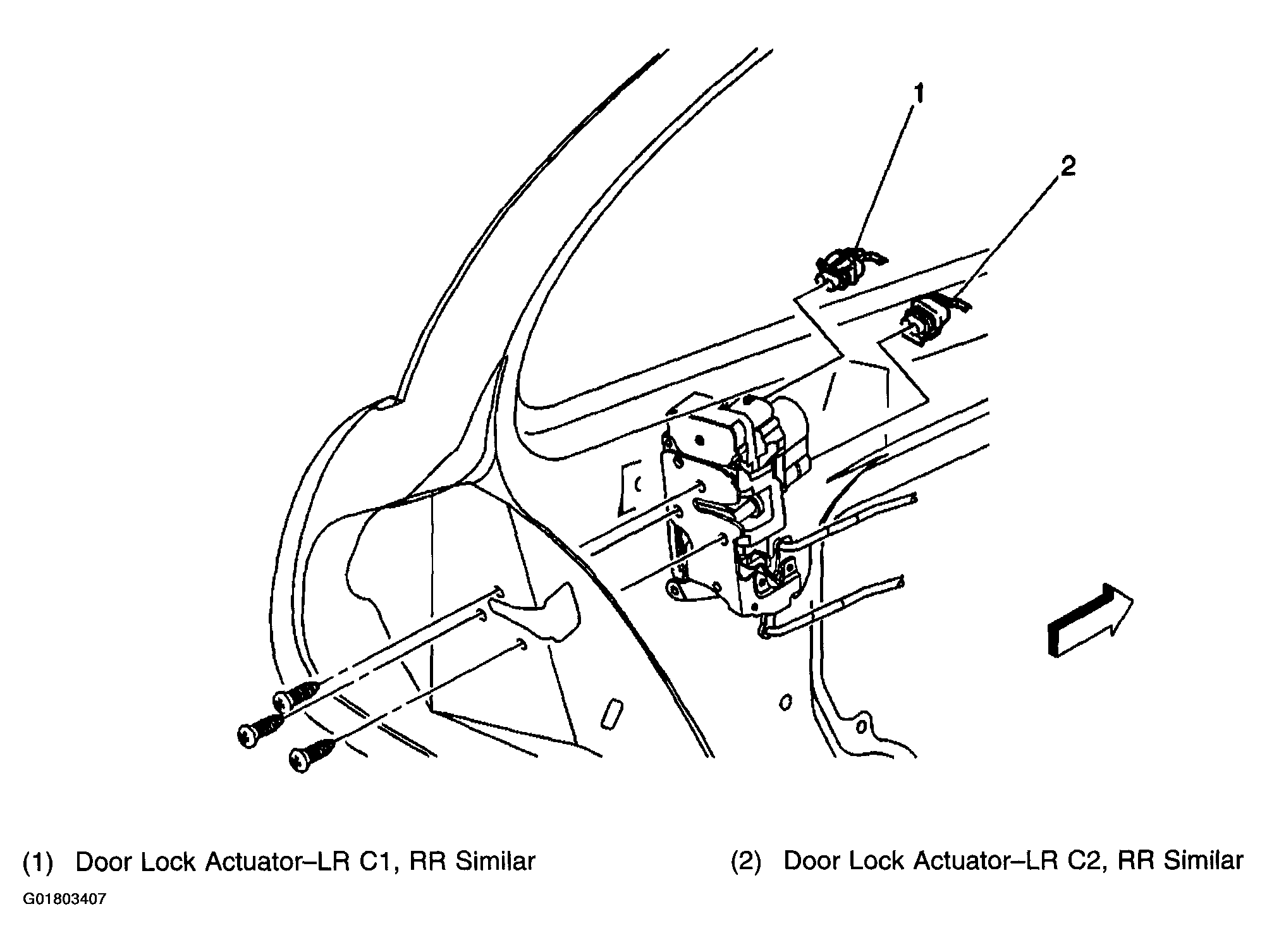

Fig 4: Left Rear Power Door Lock Actuator

G01803407

Courtesy of GENERAL MOTORS CORP.

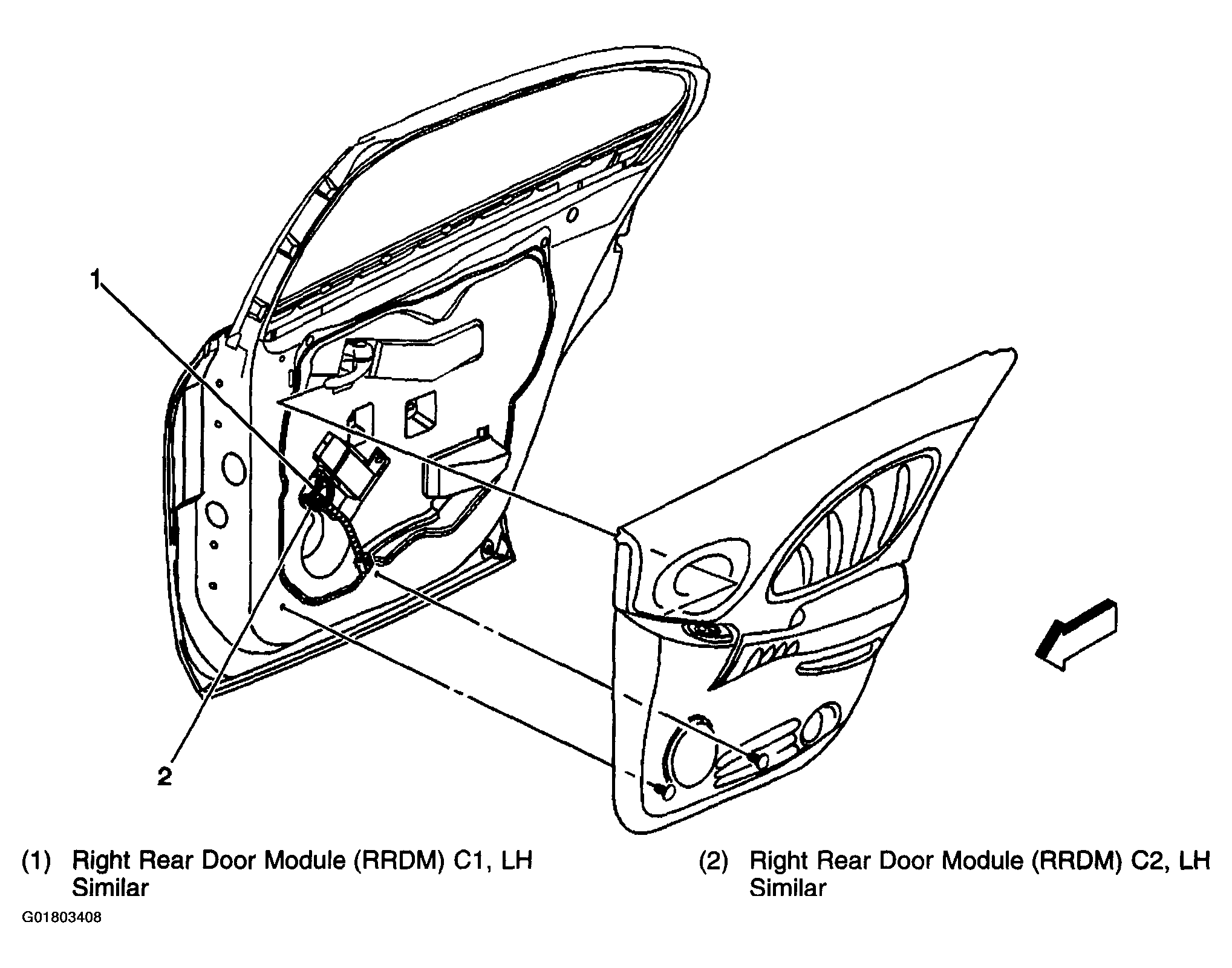

Fig 5: Right Rear Door Module (RRDM)

G01803408

Courtesy of GENERAL MOTORS CORP.

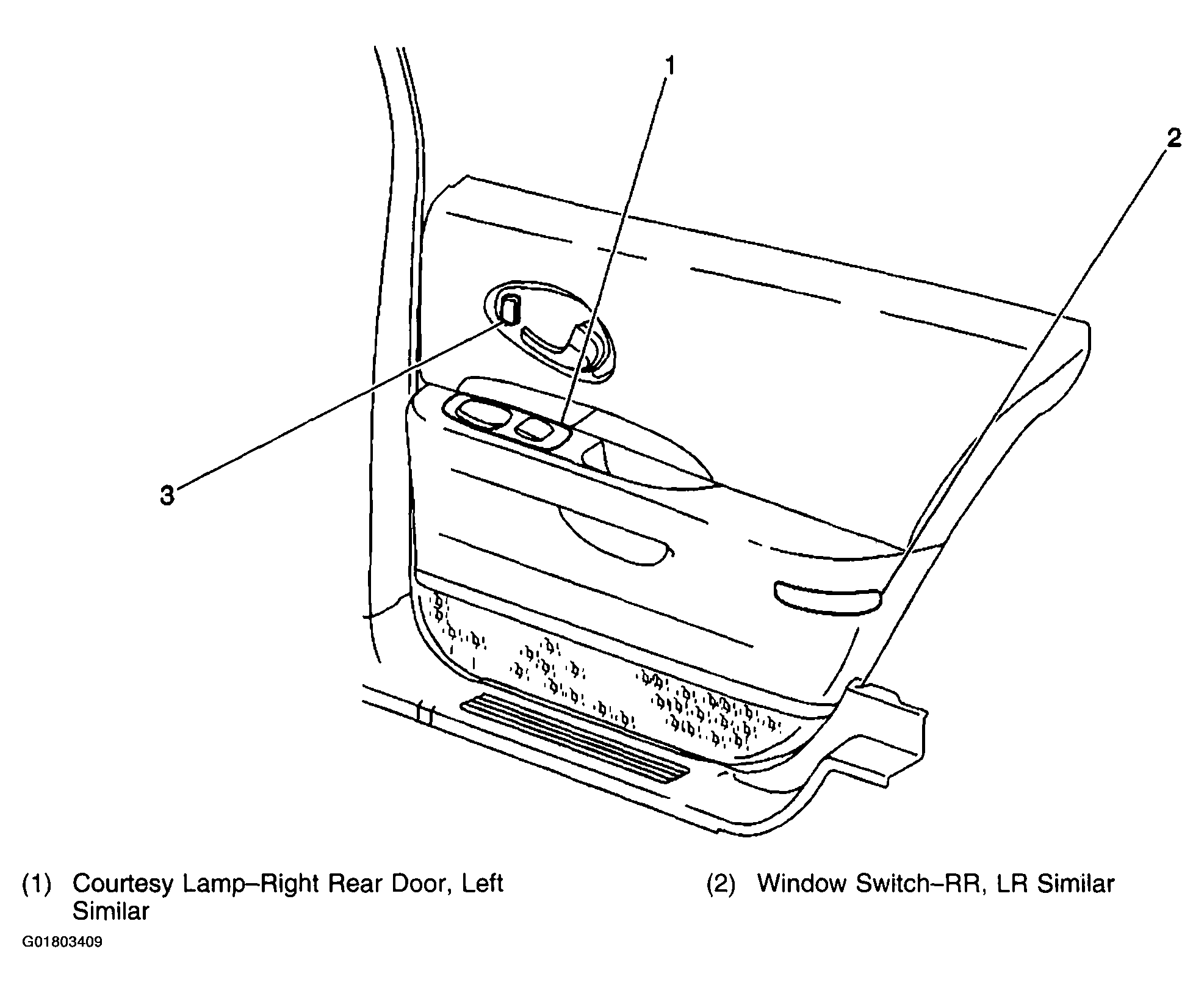

Fig 6: Right Rear Door Trim Panel

G01803409

Courtesy of GENERAL MOTORS CORP.

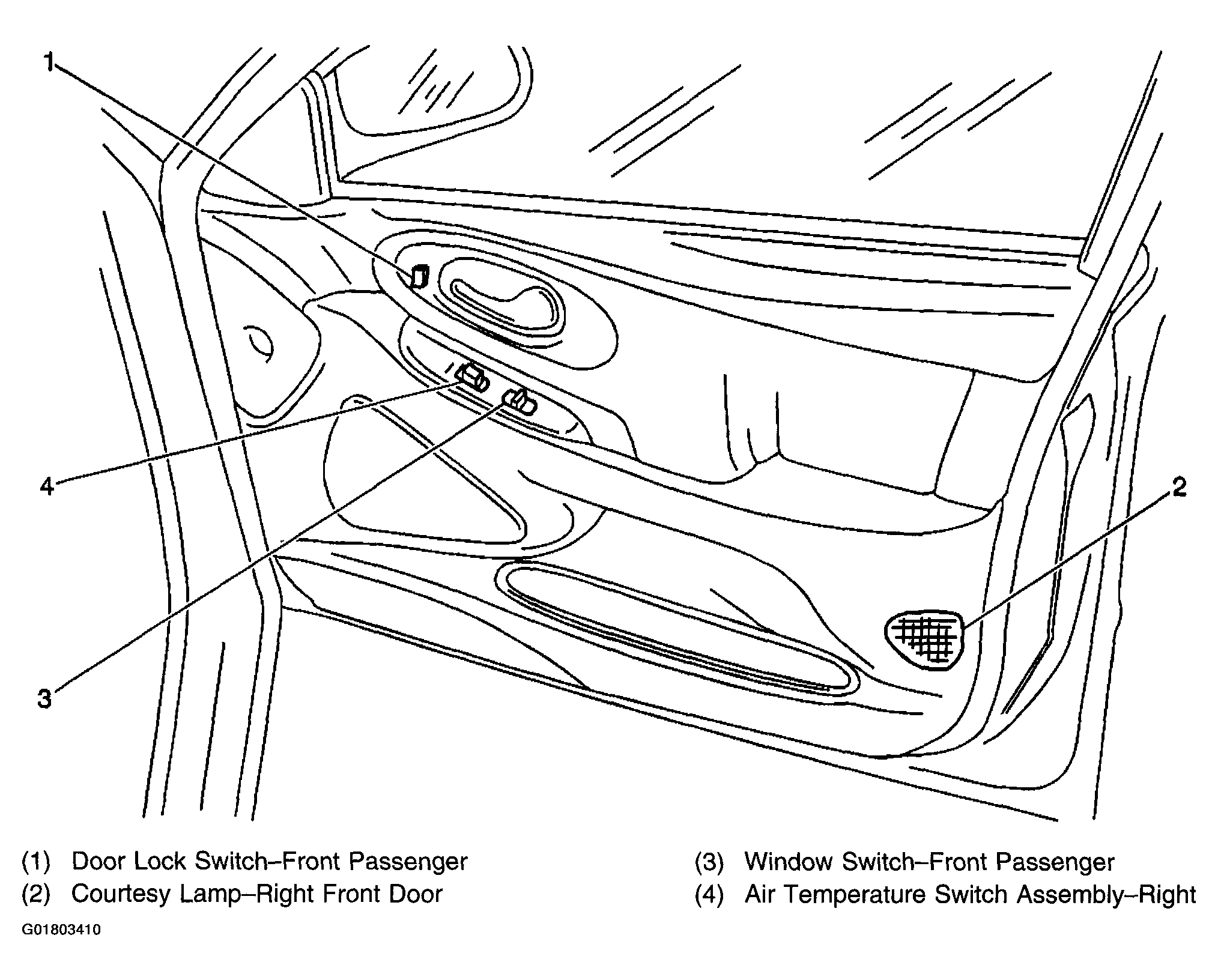

Fig 7: Right Front Door Trim Panel

G01803410

Courtesy of GENERAL MOTORS CORP.

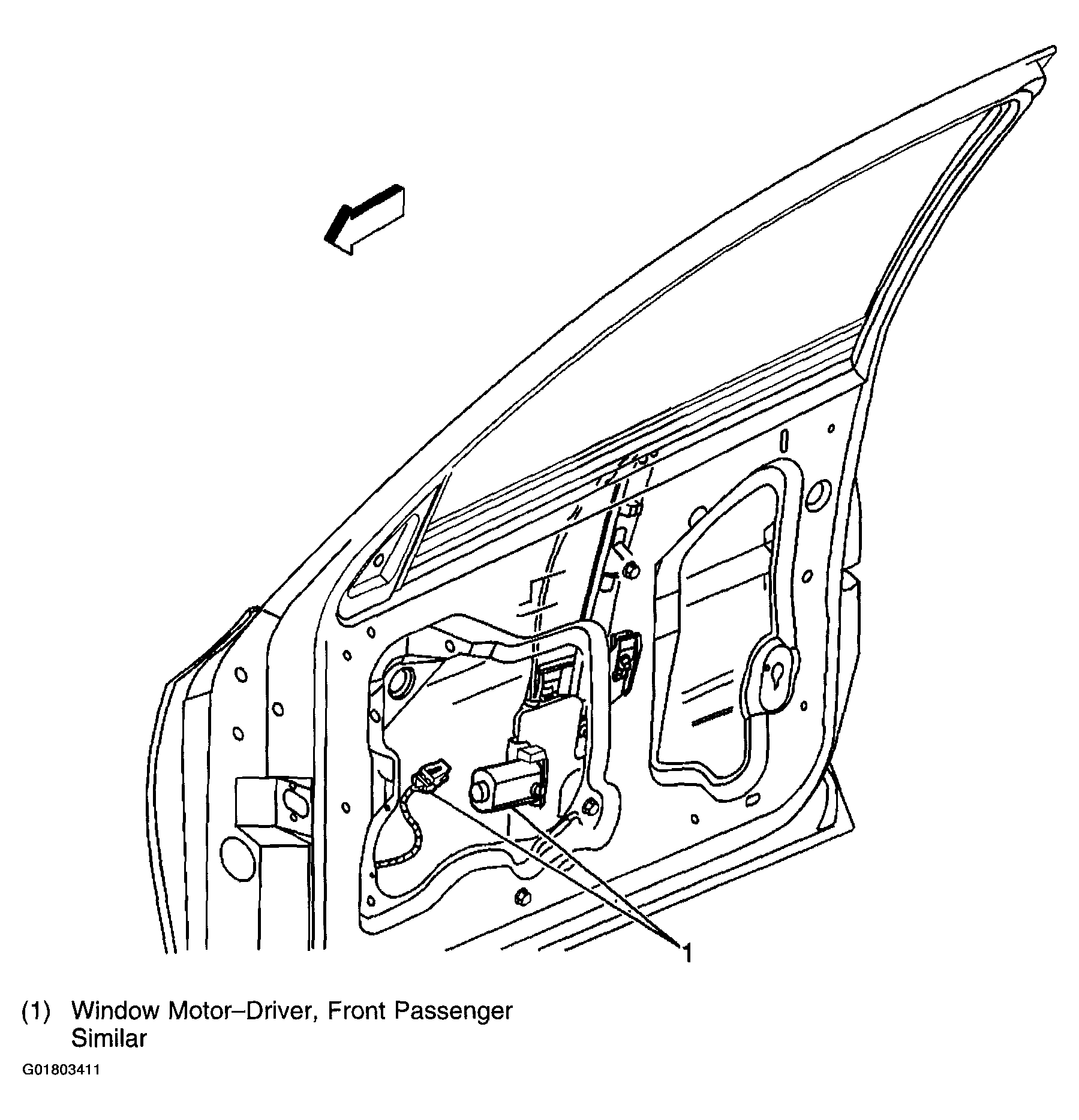

Fig 8: Driver Power Window Motor

G01803411

Courtesy of GENERAL MOTORS CORP.
