Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door jamb switch to the vehicle. Fully seat the locking tabs.
  2. Connect the electrical connector to the switch.
  3. Install the instrument panel sound insulator (right side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
    Fig 1: Instrument Panel Sound Insulator - Right Side Only
    G01476275Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel sound insulator (left side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.
  5. Connect the battery negative cable.

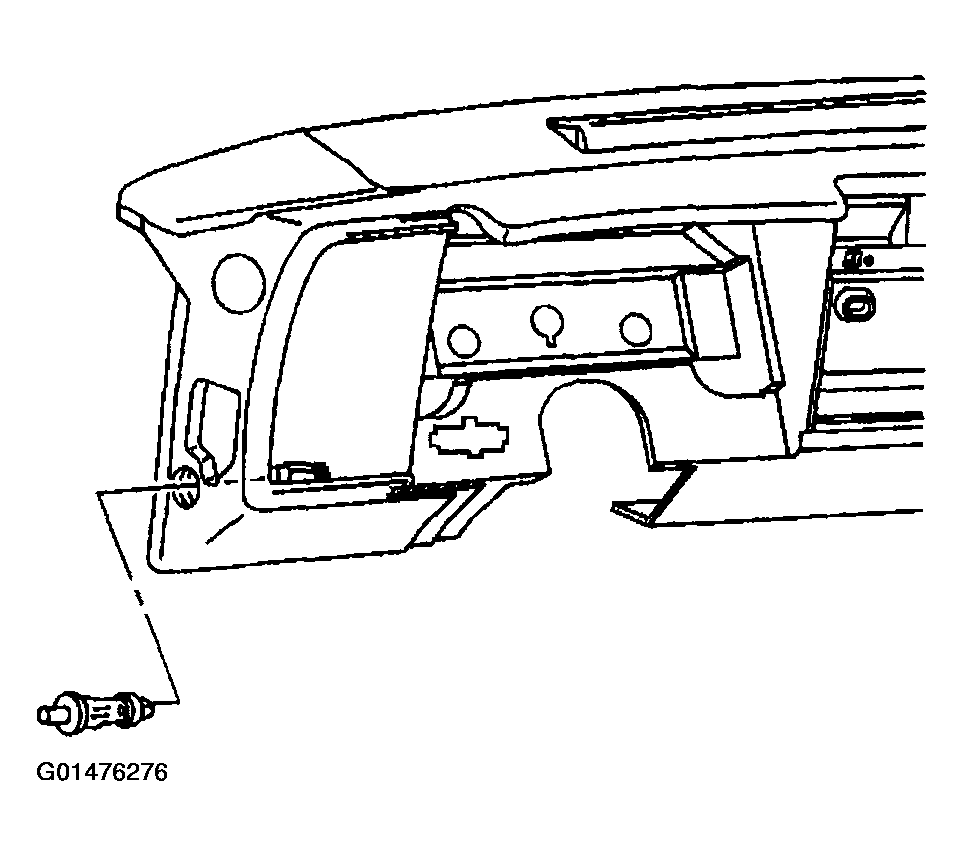

    Fig 2: Instrument Panel Sound Insulator - Left Side Only
    G01476276Courtesy of GENERAL MOTORS CORP.
