Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

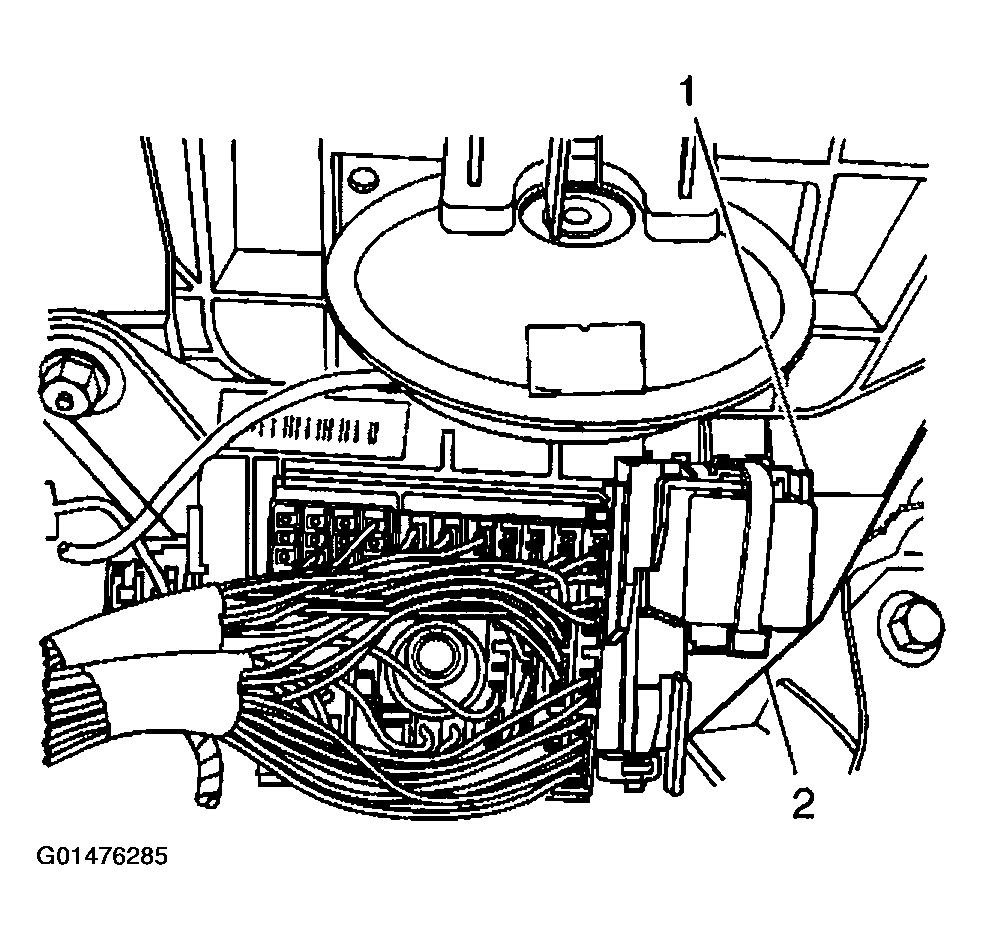

Install the hazard/turn signal flasher (1) to the C203 body harness connector (2).
Install the plastic retainer and ensure the hazard/ turn signal flasher will not work its way loose over time.

Fig 1: Hazard/Turn Signal Flasher
Courtesy of GENERAL MOTORS CORP.
Lift the glove box retaining tab (1) to install the glove box to its original position.
Close the glove box.

Fig 2: Installing Glove Box By Lifting Glove Box Retaining Tab
Courtesy of GENERAL MOTORS CORP.
