Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the compass sensor to the overhead console.
Install the overhead console. Refer to DRIVER INFORMATION CENTER REPLACEMENT (WITHOUT SUNROOF) or DRIVER INFORMATION CENTER REPLACEMENT (WITH SUNROOF) .
Calibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION .

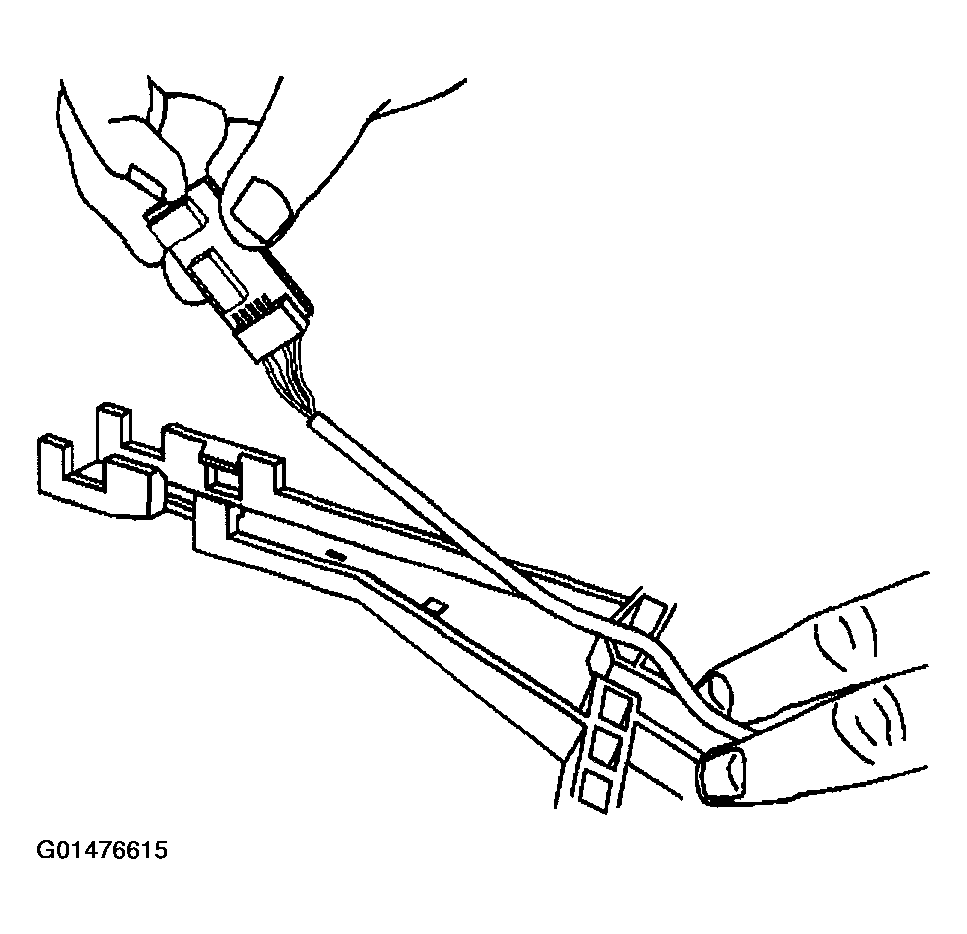

Fig 1: Installing Compass Sensor To Overhead Console
Courtesy of GENERAL MOTORS CORP.
