Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

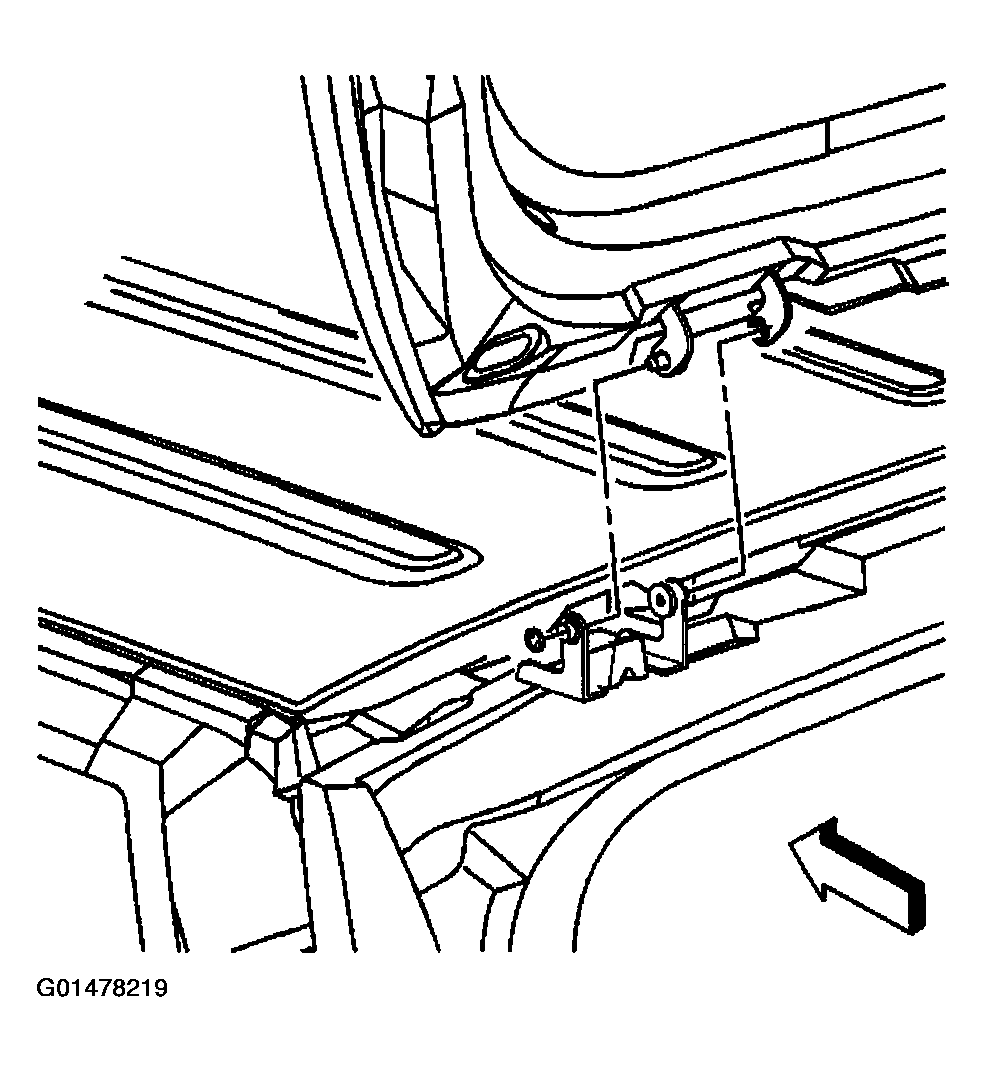

- With an assistant, install the liftgate by sliding the liftgate hinge ears to the left to rest on the pins.
- Install the hinge pins.
- Install the hinge pin retaining clips.
- Install the liftgate struts. Refer to STRUT REPLACEMENT - LIFT GATE .
- Connect the washer fluid hose.
- Connect the electrical connectors, as needed.
- Install the roof rear header garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- REAR UPPER in Interior Trim.
- Install the liftgate window. Refer to WINDOW REPLACEMENT - LIFT GATE .
