Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
- With an assistant, install the pickup box to the vehicle.
- Install the screws that retain the fuel filler neck to the pickup box.
- Install the ground wire that retains the fuel filler neck to the pickup box.
- Install the license plate lamp. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) or LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) .
- Install the wiring harness ground wire to the frame.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

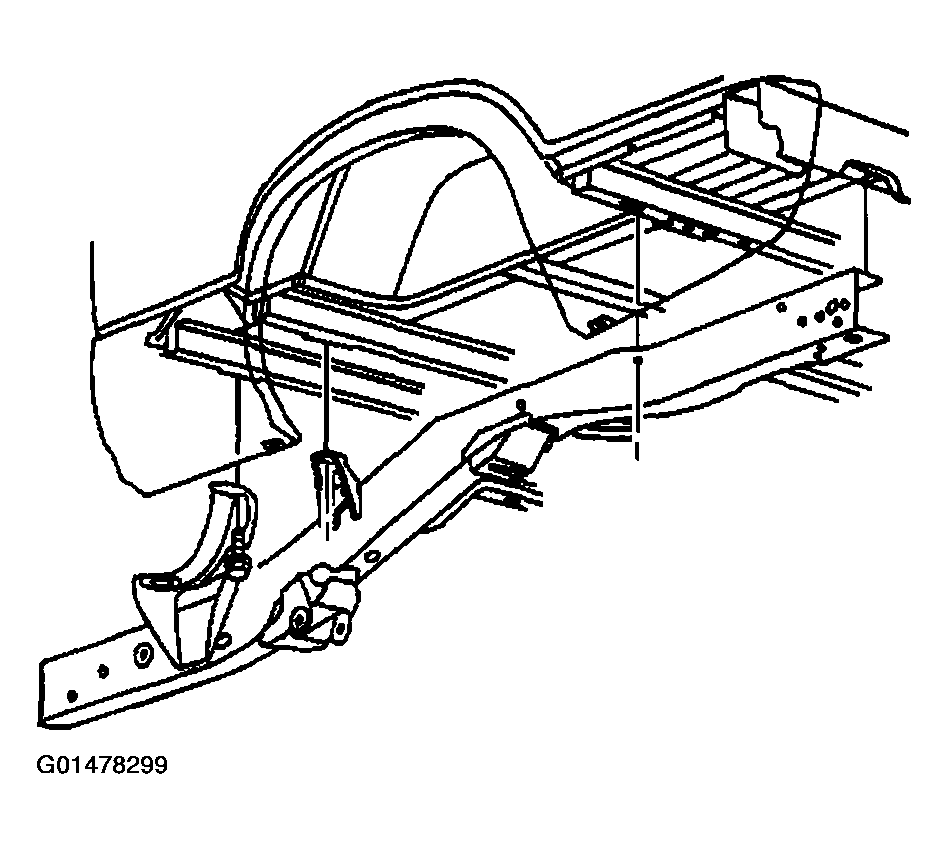

- Install the bolts that retain the frame to the pickup box.
Tighten
Tighten the bolts to 70 N.m (52 lb ft).
- Install the rear tail lamp assemblies. Refer to TAIL LAMP ASSEMBLY AND/OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT (PICKUP) or TAIL LAMP ASSEMBLY AND/OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT (UTILITY) in Lighting Systems.
