Interior Lights Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

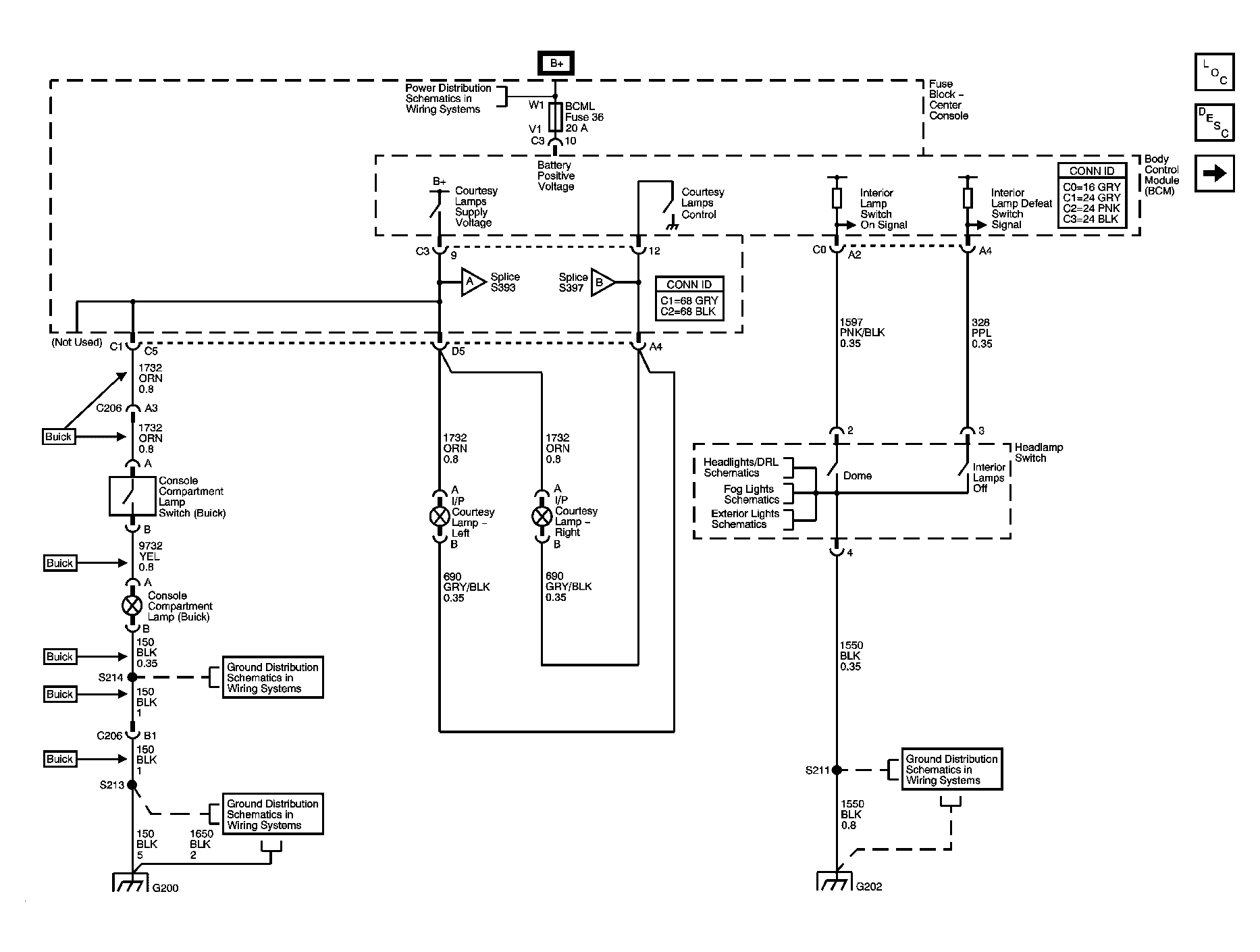

Fig 1: I/P Lighting, Lamp Control Schematic

GM828668

Courtesy of GENERAL MOTORS CORP.

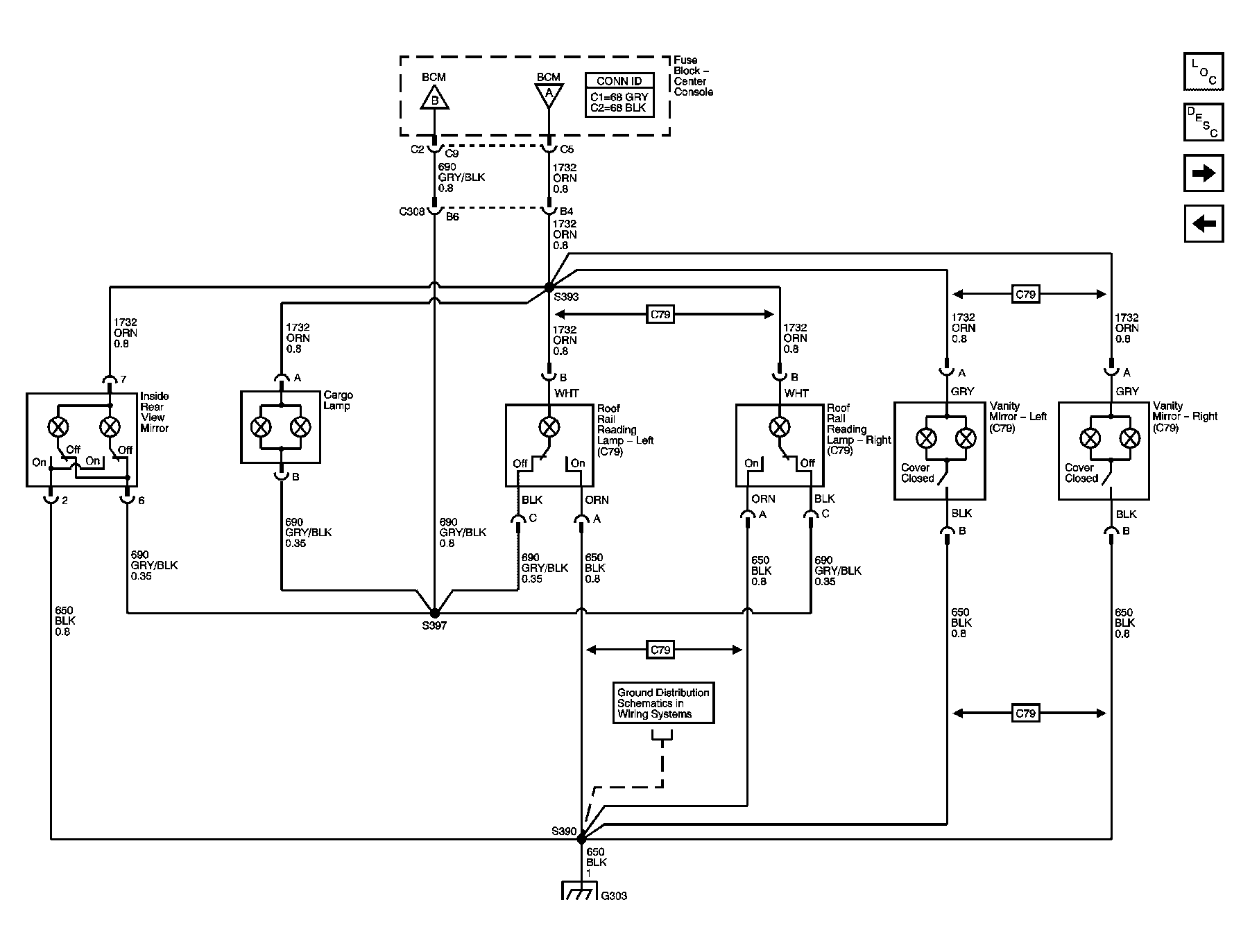

Fig 2: Roof Lighting Schematic - Pontiac

GM629003

Courtesy of GENERAL MOTORS CORP.

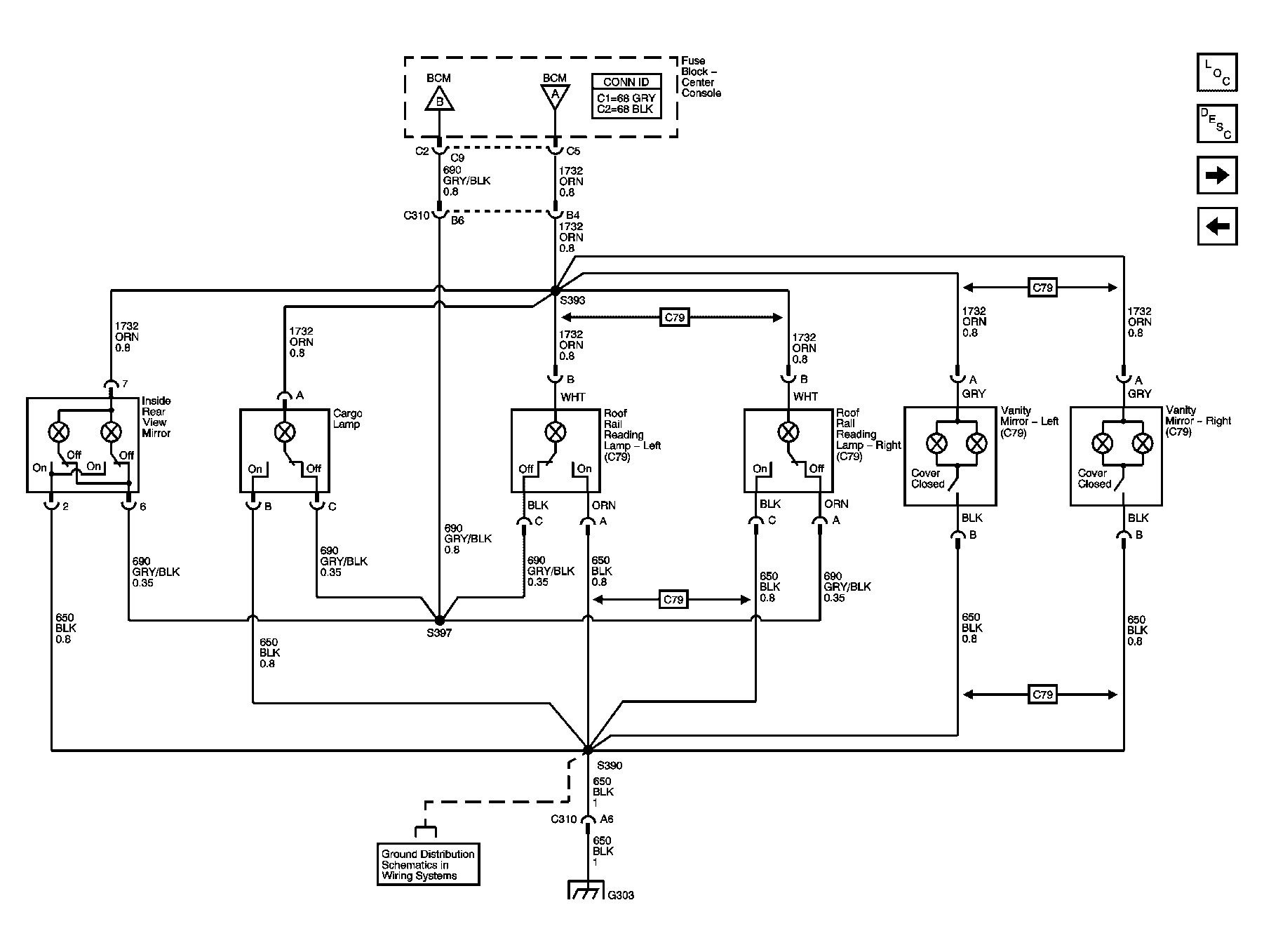

Fig 3: Roof Lighting Schematic - Buick

GM828674

Courtesy of GENERAL MOTORS CORP.

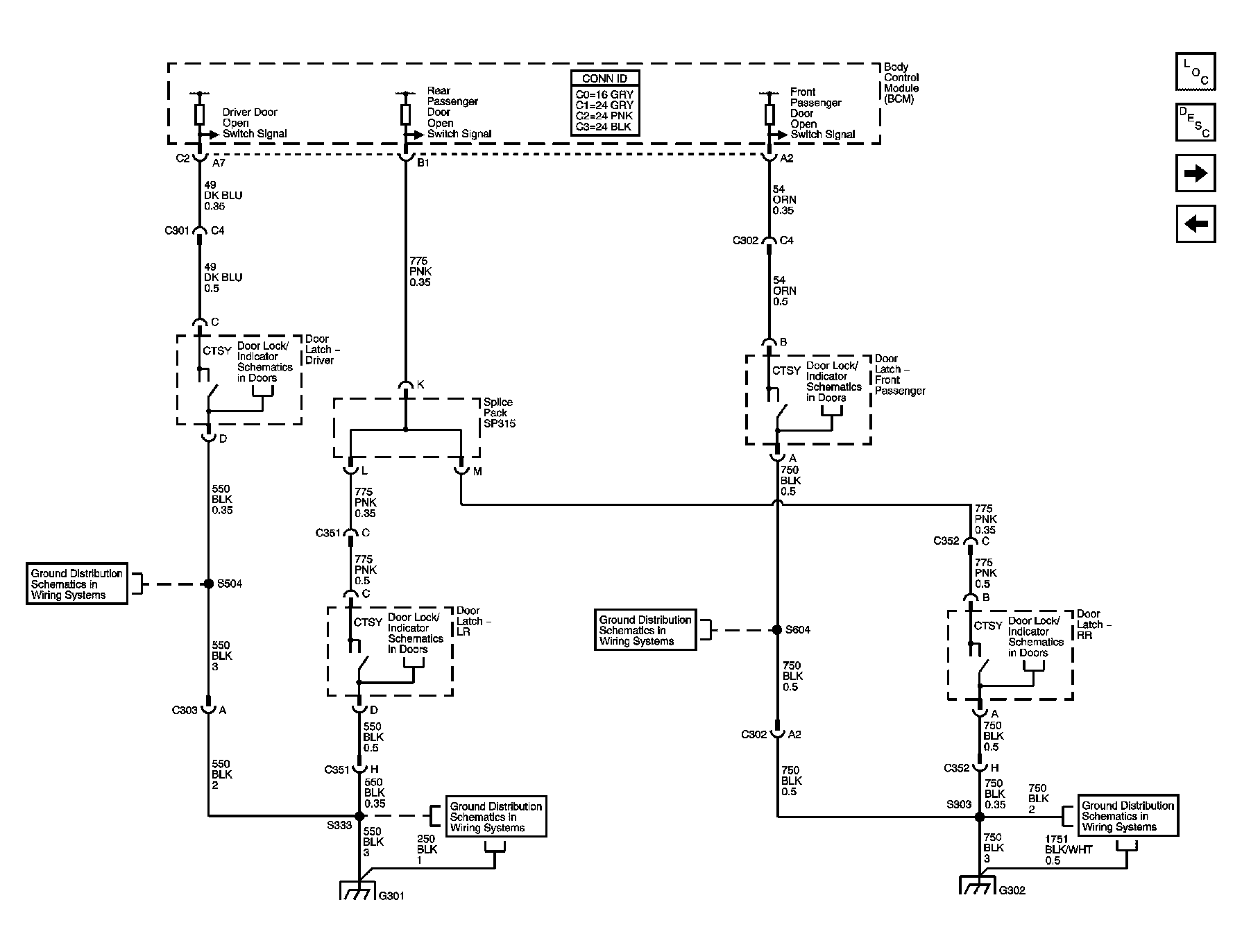

Fig 4: Door Switches Schematic

GM629413

Courtesy of GENERAL MOTORS CORP.

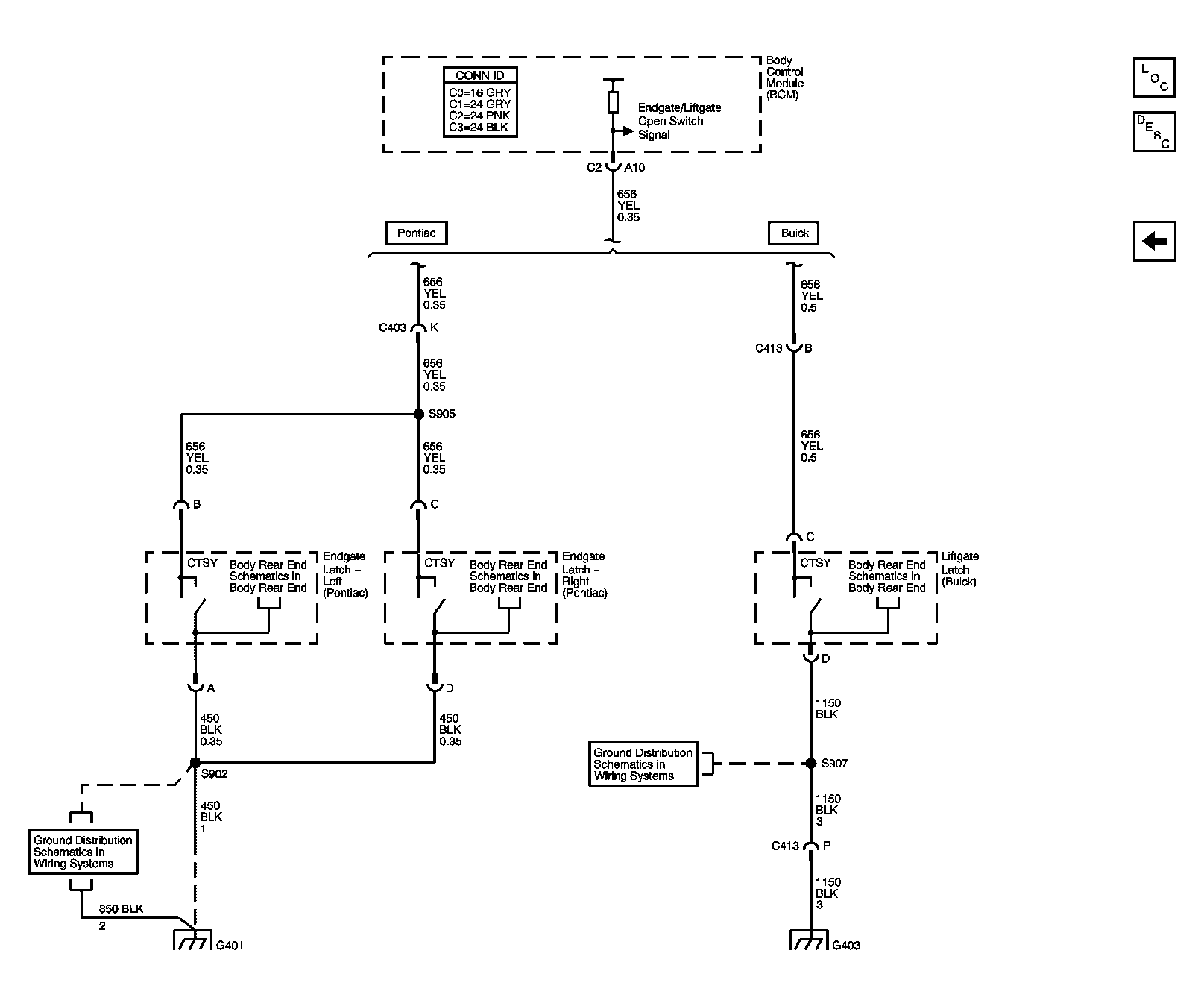

Fig 5: Lift Window, Endgate & Liftgate Switches Schematic

GM828676

Courtesy of GENERAL MOTORS CORP.
