Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

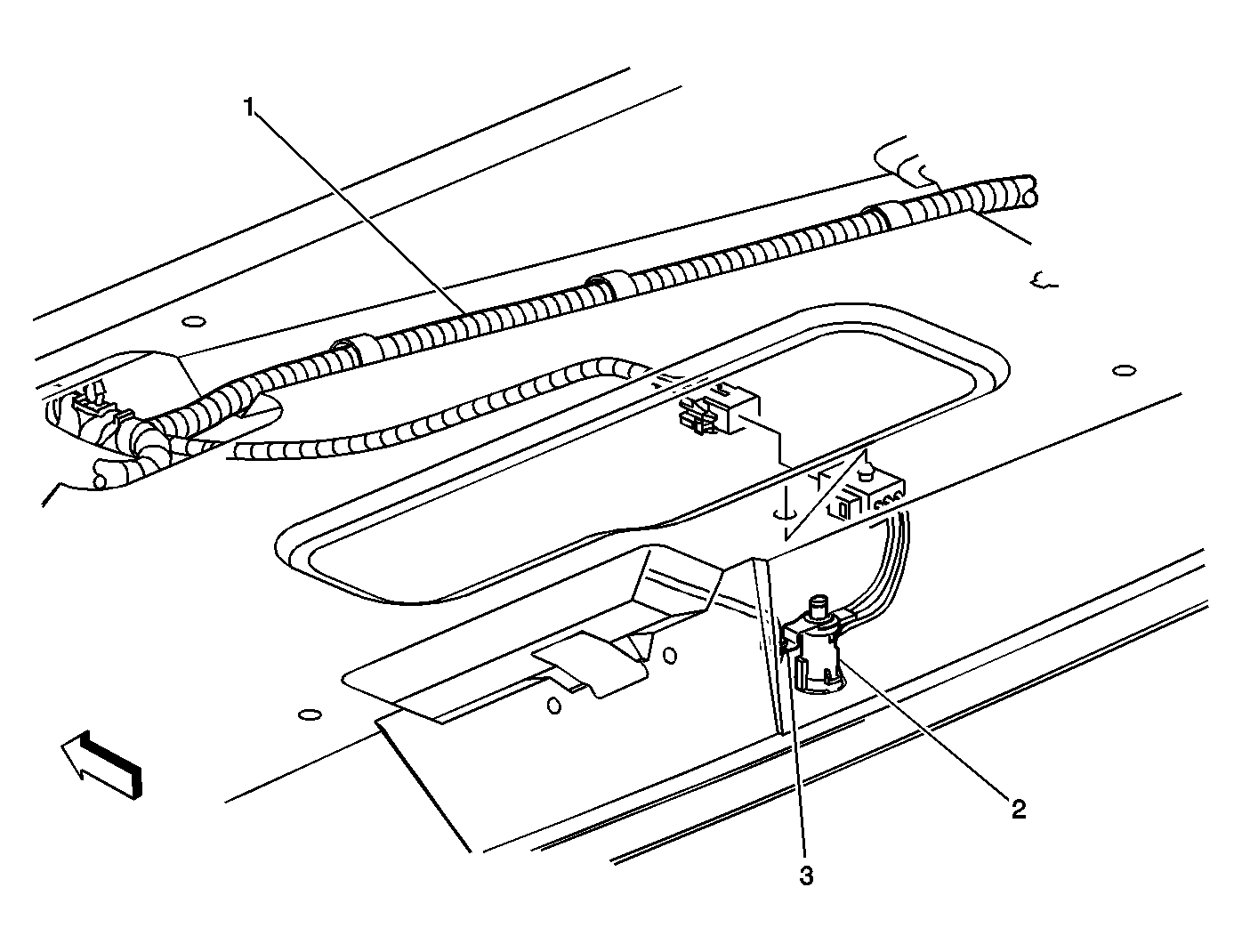

Fig 1: Lock Cylinder Switch Component View - Endgate - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Endgate Harness
2	Lock Cylinder - Endgate
3	Lock Cylinder Switch - Endgate

Fig 2: Endgate Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C403
2	Endgate Harness
3	Endgate Latch - Right C1
4	Endgate Latch- Right C2
5	Lift Window Release Actuator - Right C1
6	Lift Window Release Actuator - Right C2
7	Lock Cylinder Switch - Endgate
8	Lift Window Release Actuator - Left C2
9	Lift Window Release Actuator - Left C1
10	Endgate Latch - Left C2
11	Endgate Latch - Left C1

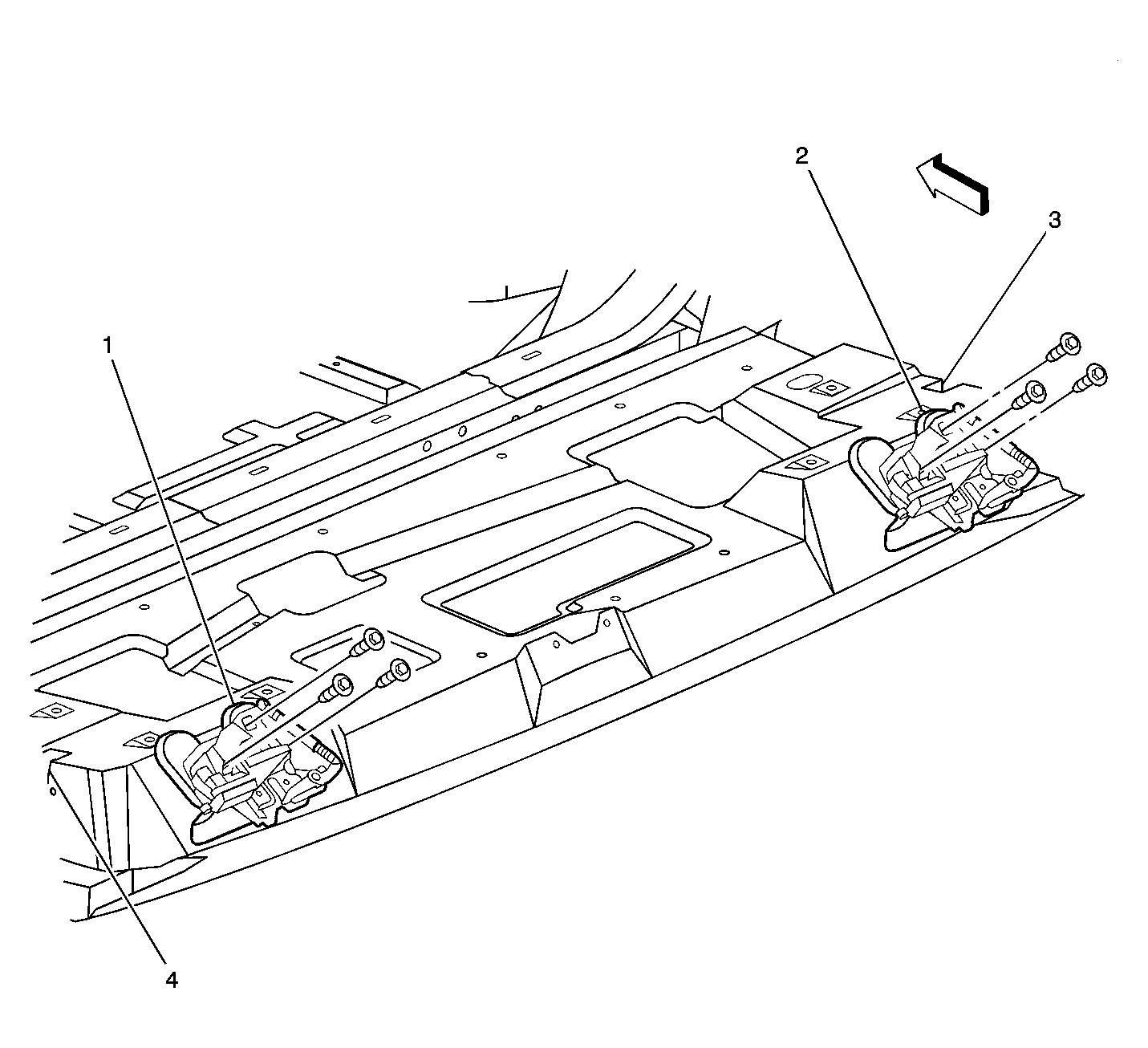

Fig 3: Lift Window Release Actuators Component View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lift Window Release Actuator and Ajar Switch - Left
2	Lift Window Release Actuator and Ajar Switch - Right
3	Endgate Lock Actuator and Ajar Switch - Right
4	Endgate Lock Actuator and Ajar Switch - Left

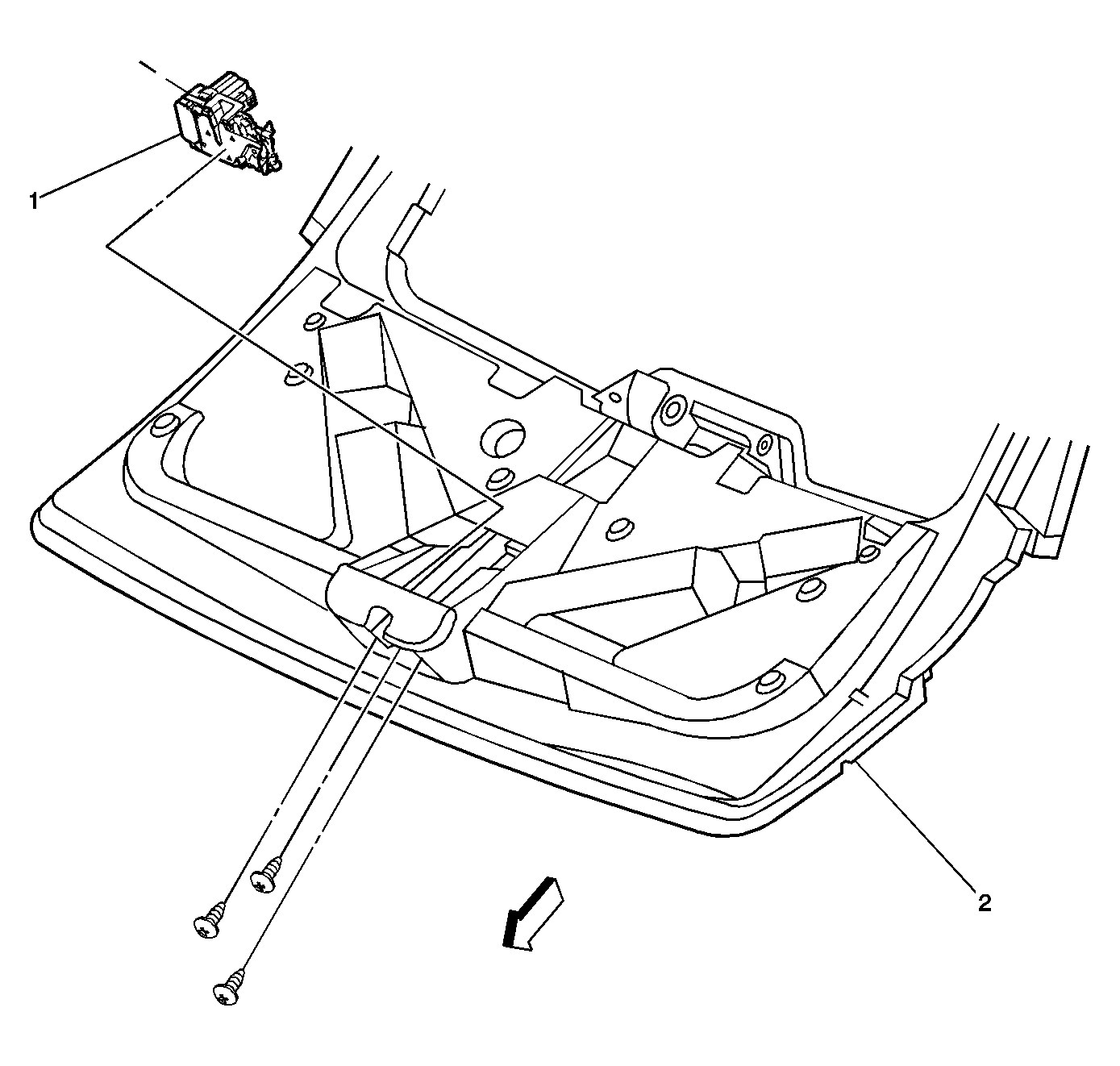

Fig 4: Liftgate Lock Actuator Component View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Latch
2	Liftgate
