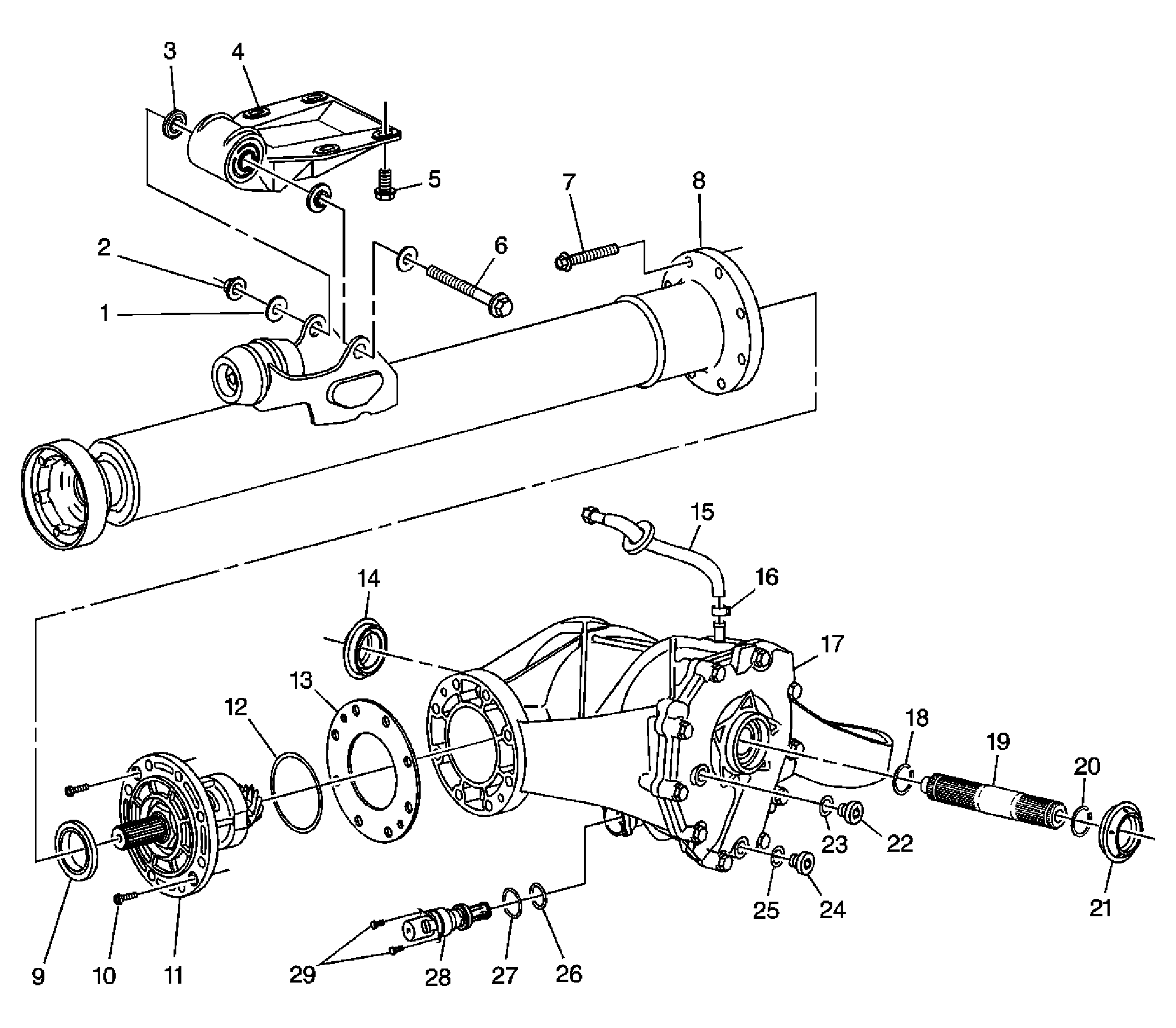

Differential Carrier Assembly Disassembled Views
WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Washer |
| 2 | Nut |
| 3 | Spacer |
| 4 | Bracket |
| 5 | Bolt |
| 6 | Bolt |
| 7 | Bolt |
| 8 | Torque Tube Assembly |
| 9 | Oil Seal |
| 10 | Bolt |
| 11 | Pinion and Housing Assembly |
| 12 | O-Ring |
| 13 | Shim |
| 14 | Oil Seal (Right) |
| 15 | Vent Hose Assembly |
| 16 | Clamp |
| 17 | Differential Assembly |
| 18 | Snap Ring |
| 19 | Axle Shaft |
| 20 | Snap Ring |
| 21 | Oil Seal (Left) |
| 22 | Fill Plug |
| 23 | Gasket |
| 24 | Drain Plug |
| 25 | Gasket |
| 26 | O-Ring |
| 27 | O-Ring |
| 28 | Clutch Pump Check Valve |
| 29 | Bolts |
