Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat back recliner handle.
1. With a suitable blunt ended tool inserted between the cushion and the handle push the handle retaining spring clip down.
2. Pull the handle from the shaft.

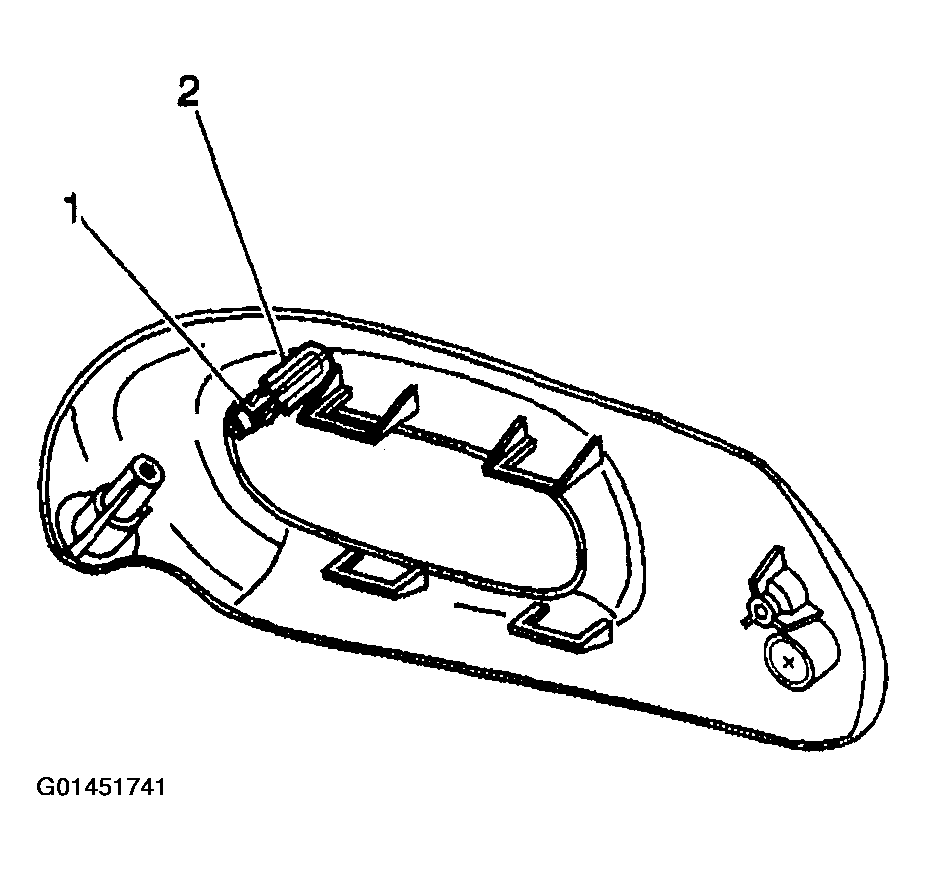

  Fig 1: Seat Back Recliner Handle
  Courtesy of GENERAL MOTORS CORP.
Remove the screws attaching the seat side trim panel.

Fig 2: Removing Screws Attaching Seat Side Trim Panel
Courtesy of GENERAL MOTORS CORP.
Rock the panel side to side working the barrel post clip (1) out of the seat frame.
Reposition panel away from the seat:

Fig 3: Removing Barrel Post Clip From Seat Frame
Courtesy of GENERAL MOTORS CORP.
Disconnect the switch harness.
Remove the switch.

Fig 4: Switch
Courtesy of GENERAL MOTORS CORP.
