Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the bolts attaching the shoulder harness guide bracket.
Tighten

Tighten the shoulder harness guide bracket bolts to 27 N.m (20 lb ft).

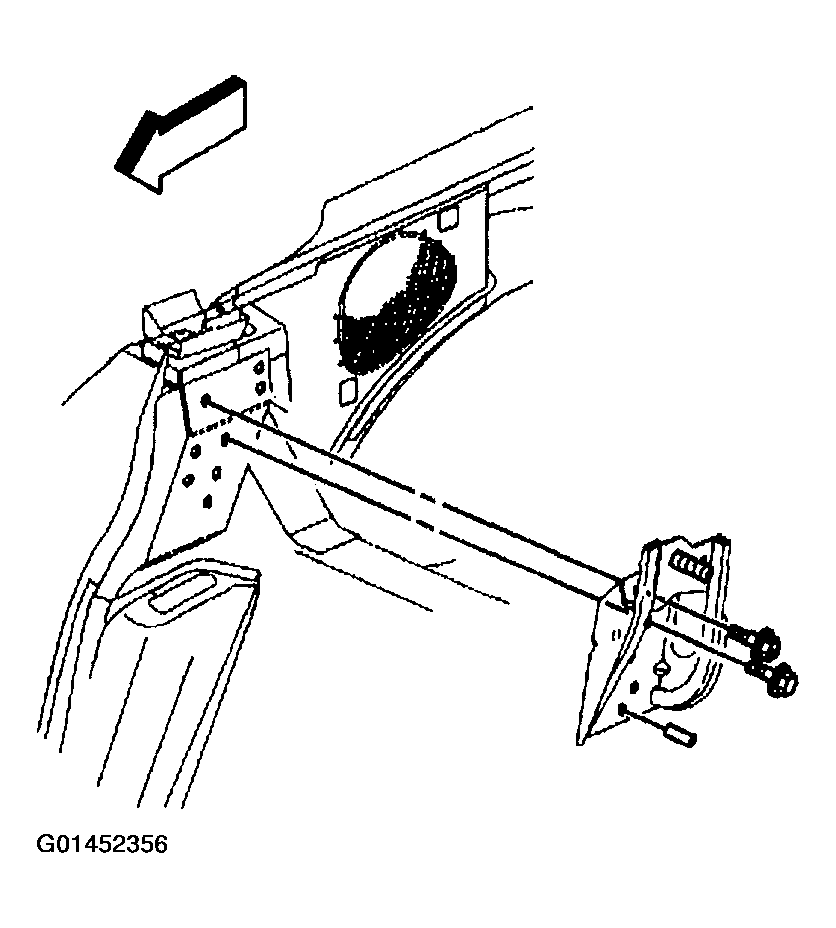

Fig 1: Installing Bolts Attaching Shoulder Harness Guide Bracket
Courtesy of GENERAL MOTORS CORP.
Install the folding top. Refer to FOLDING TOP REPLACEMENT in Roof.

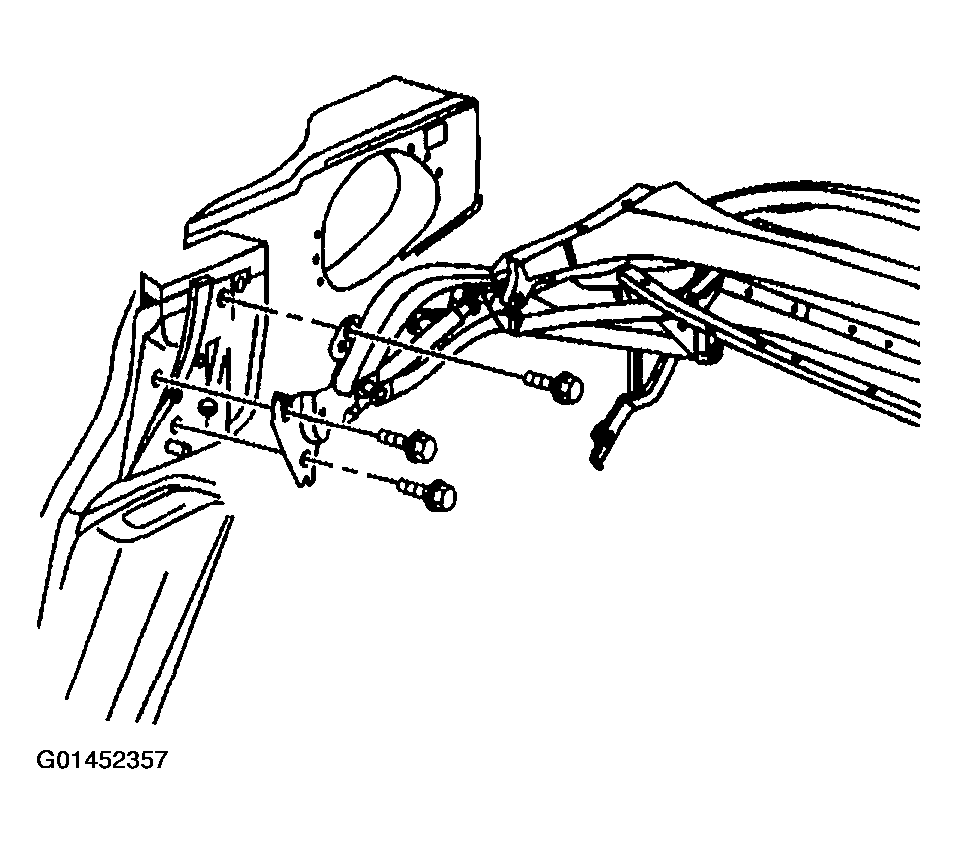

Fig 2: Installing Folding Top
Courtesy of GENERAL MOTORS CORP.
