Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel control switches using a small flat bladed tool.

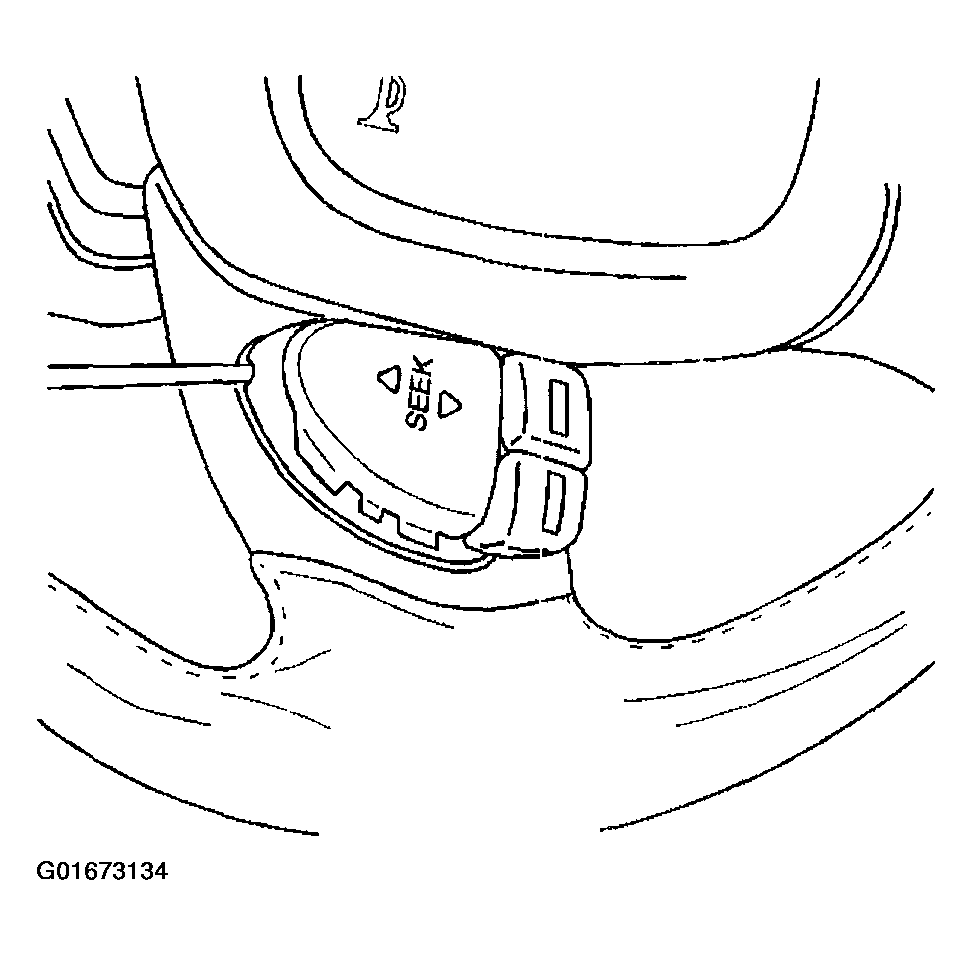

    Fig 1: Removing Steering Wheel Control Switch Assembly
    G01673134Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors.

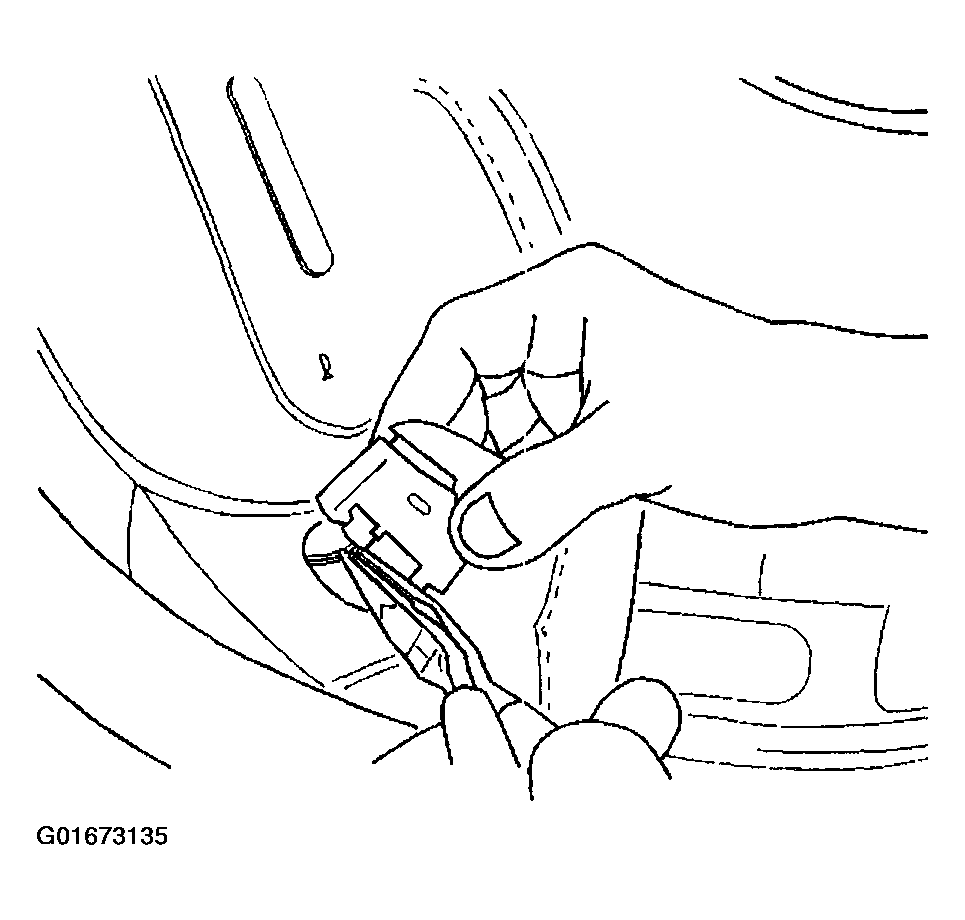

    Fig 2: Disconnecting Steering Wheel Control Switch Assembly Electrical Connectors
    G01673135Courtesy of GENERAL MOTORS CORP.
