Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the battery. Refer to Battery Replacement .
  3. Remove the battery tray bolts.
  4. Remove the battery tray.

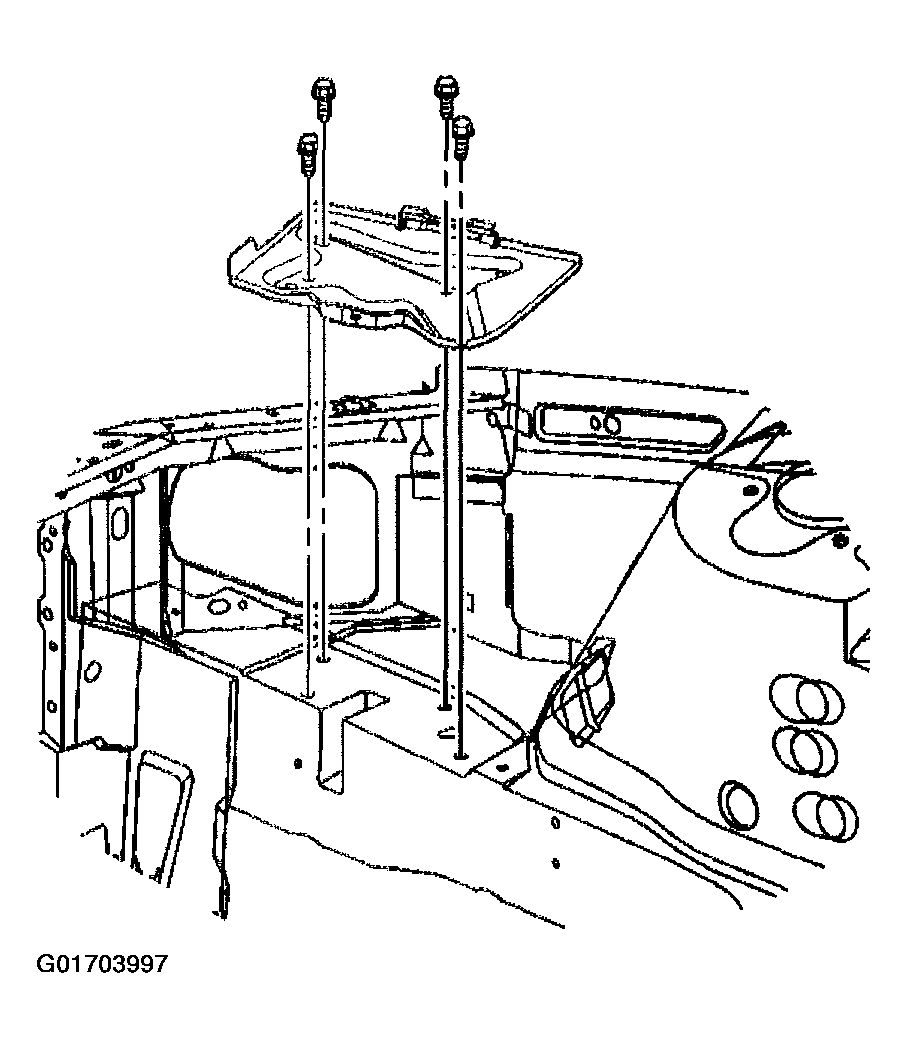

    Fig 1: Battery Tray & Bolts
    G01703997Courtesy of GENERAL MOTORS CORP.
