Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Position the washer hose to the vehicle.
Route the washer hose pump end down alongside the right front inner fender and into the right front inner fender area.
Connect the washer hose to the air inlet grille panel.

Fig 1: Connecting Washer Hose To Air Inlet Grille Panel
Courtesy of GENERAL MOTORS CORP.
Connect the washer hose to the wiper arms.

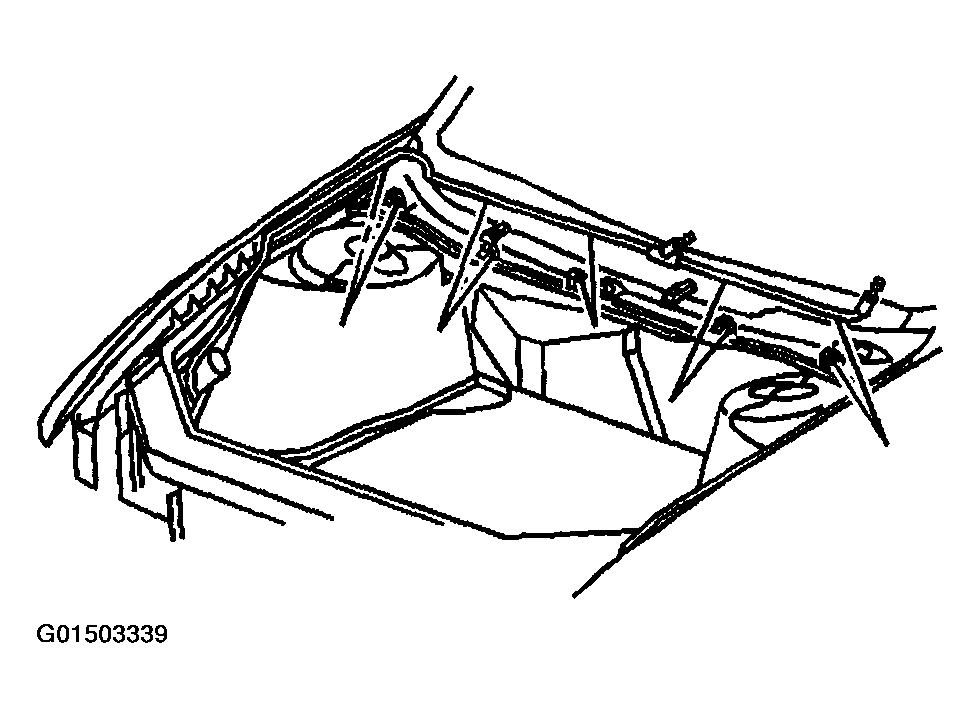

Fig 2: Connecting Washer Hose To Wiper Arms
Courtesy of GENERAL MOTORS CORP.
Raise the vehicle.
Connect the Washer hose to the washer pump.
Install the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
Close the hood.

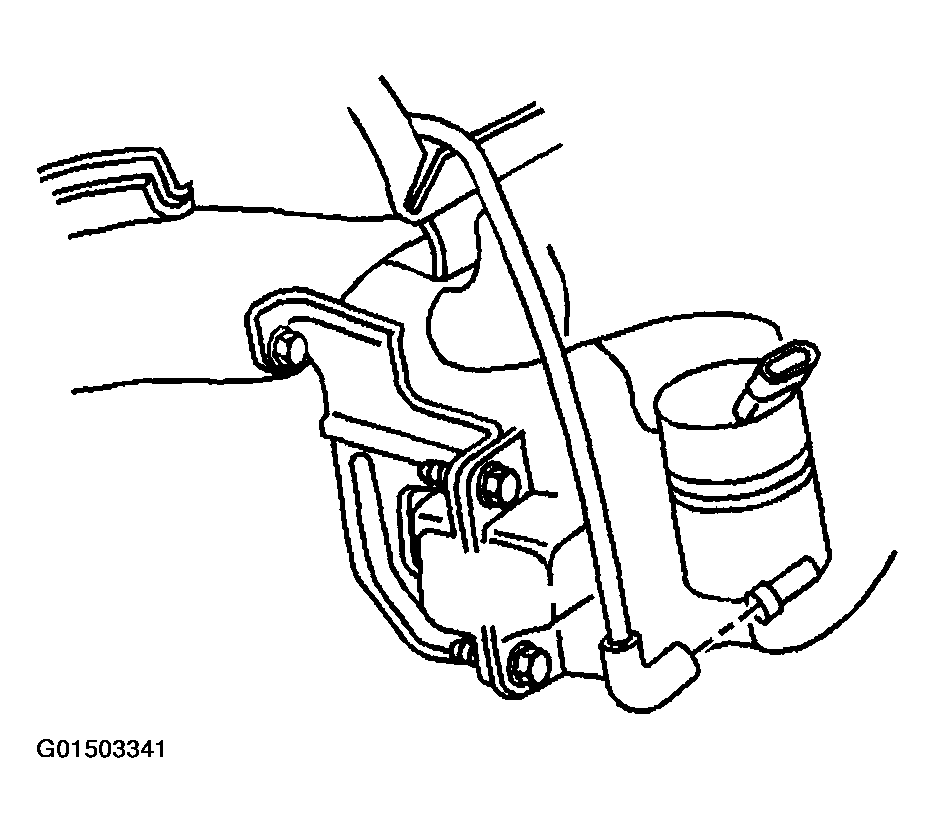

Fig 3: Connecting Washer Hose To Washer Pump
Courtesy of GENERAL MOTORS CORP.
