Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper end of the assist rods on to the ball joint on the hood.

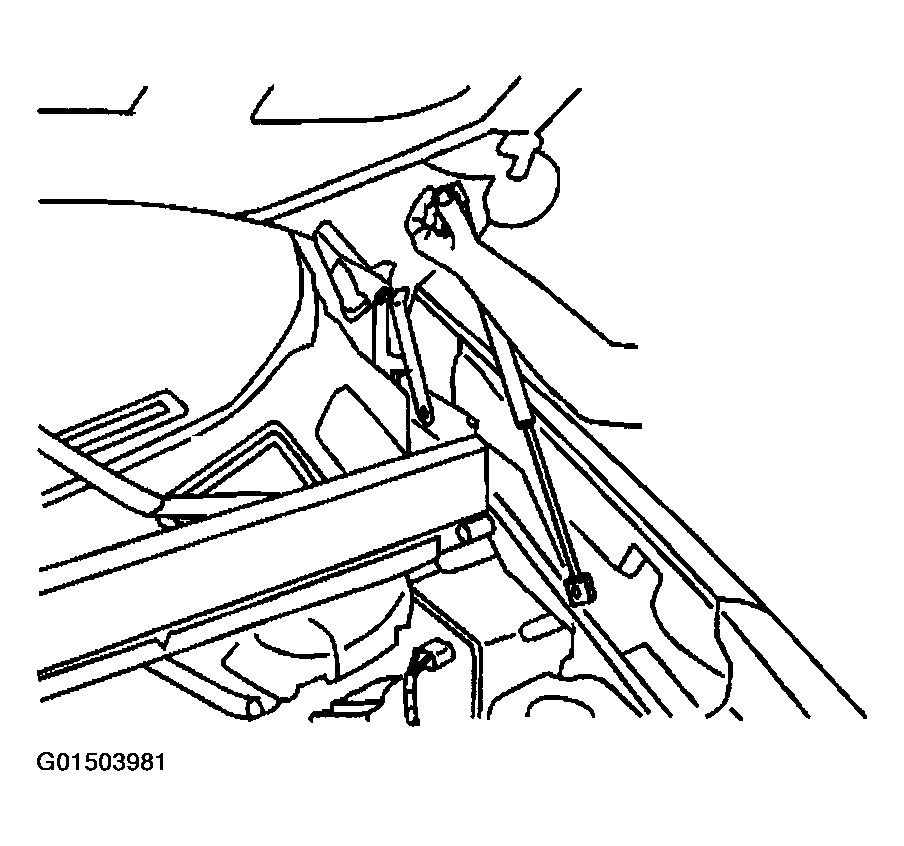

Fig 1: Installing Upper End Of Assist Rods On To Ball Joint On Hood
Courtesy of GENERAL MOTORS CORP.
Install the lower end of the assist rods on to the ball joint on the lower hood hinge
Remove the support from the hood.
Close the hood.

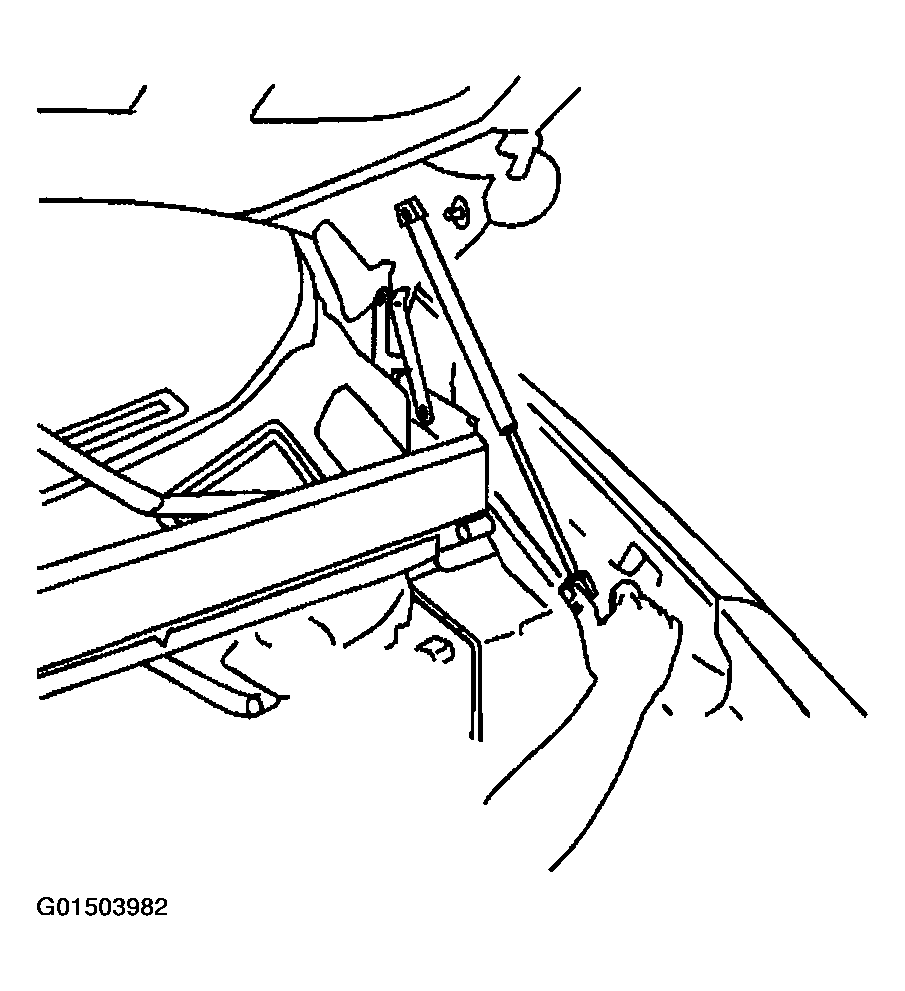

Fig 2: Installing Lower End Of Assist Rods On To Ball Joint On Lower Hood Hinge
Courtesy of GENERAL MOTORS CORP.
