Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not bend the headlining too much when installing the headlining.
- Install the headliner to the vehicle through the right front door.

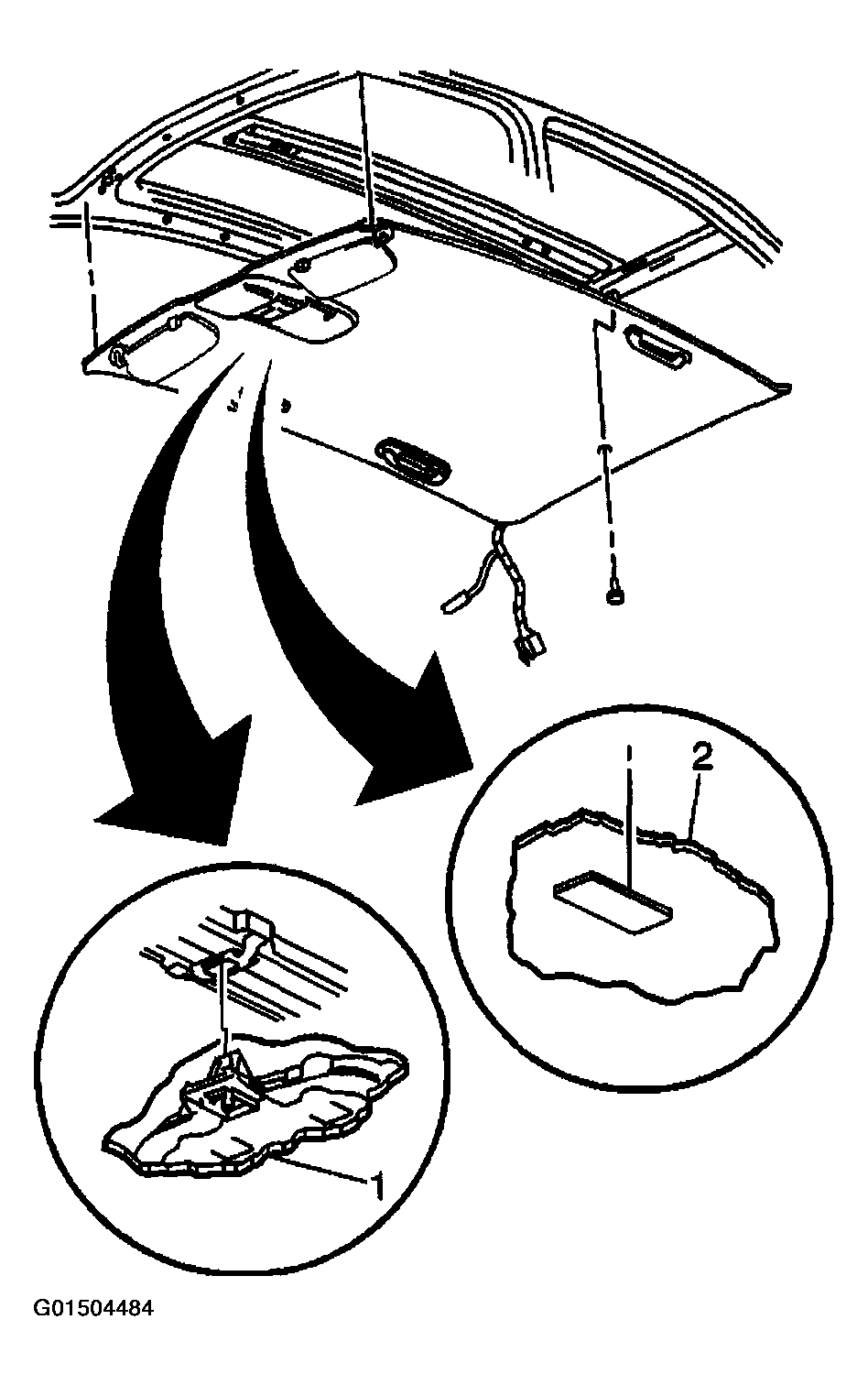

- Align the sunshade holes (1) in the headlining with the respective hole in the body structure.
- Connect the headliner electric harness at the right side of the rear window shelf.
- Install the push-in retainers (2) to the headliner.
- Install the door opening weatherstrip seal in order to hold the headliner in place on both the front and the rear doors.
- Install the finish lace around the sunroof opening. Refer to FINISHING LACE REPLACEMENT in Roof.
- Install the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) .
- Install the windshield pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR in Roof.
- Install the side rail lamps. Refer to ROOF SIDE RAIL LAMP REPLACEMENT (COUPE) or ROOF SIDE RAIL LAMP REPLACEMENT (SEDAN) in Roof.
- Install the assist handle. Refer to ASSIST HANDLE REPLACEMENT - FRONT and to ASSIST HANDLE REPLACEMENT - REAR .
- Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (WITH STORAGE) or CONSOLE REPLACEMENT - OVERHEAD (W/OUT STORAGE) .
- Connect the electric connector to the rear view mirror.
- Install the sunshade anchors. Refer to SUNSHADE ANCHOR REPLACEMENT .
- Install the sunshades. Refer to SUNSHADE REPLACEMENT .
