Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left and right side stabilizer shaft insulators (1) to the stabilizer shaft (2).
    Fig 1: Installing Insulators To Stabilizer Shaft
    G01673315Courtesy of GENERAL MOTORS CORP.
  2. Install the left and right side stabilizer shaft insulator brackets.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten

    Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  4. Lower the vehicle.

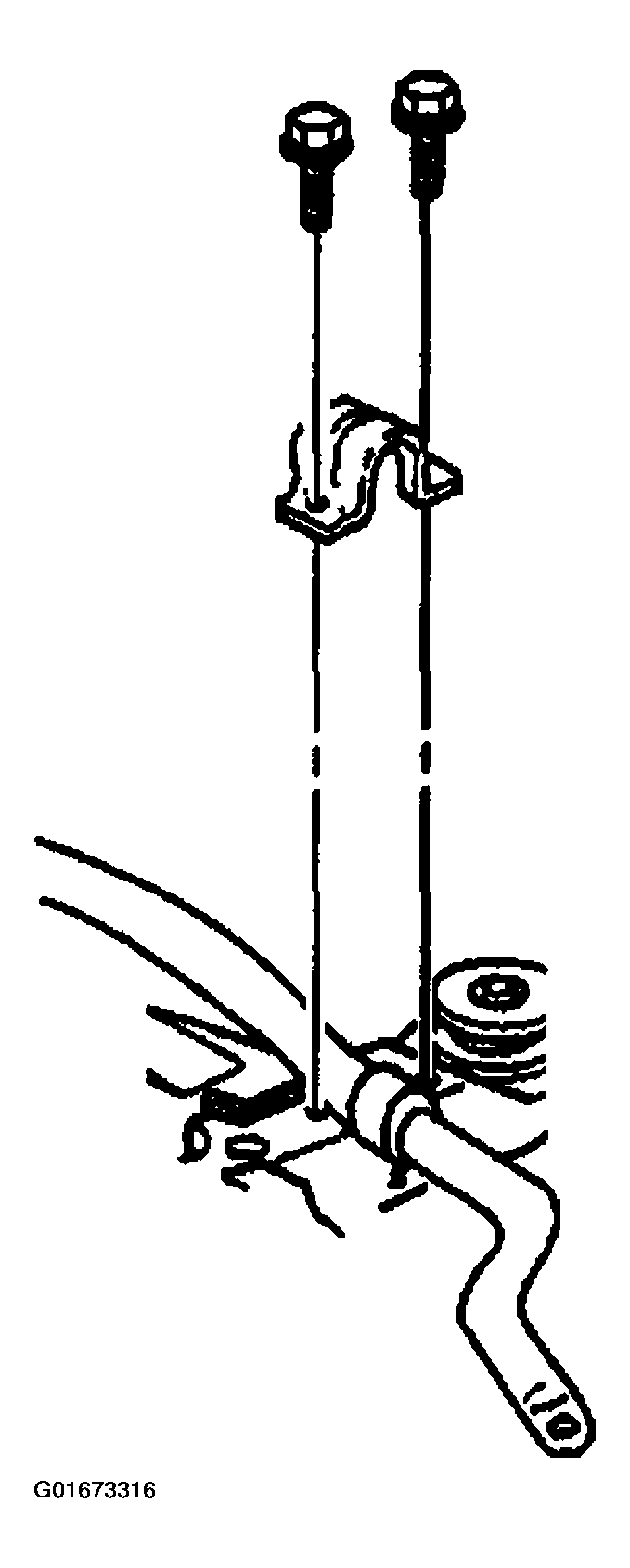

    Fig 2: Installing Insulator Brackets
    G01673316Courtesy of GENERAL MOTORS CORP.
