Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

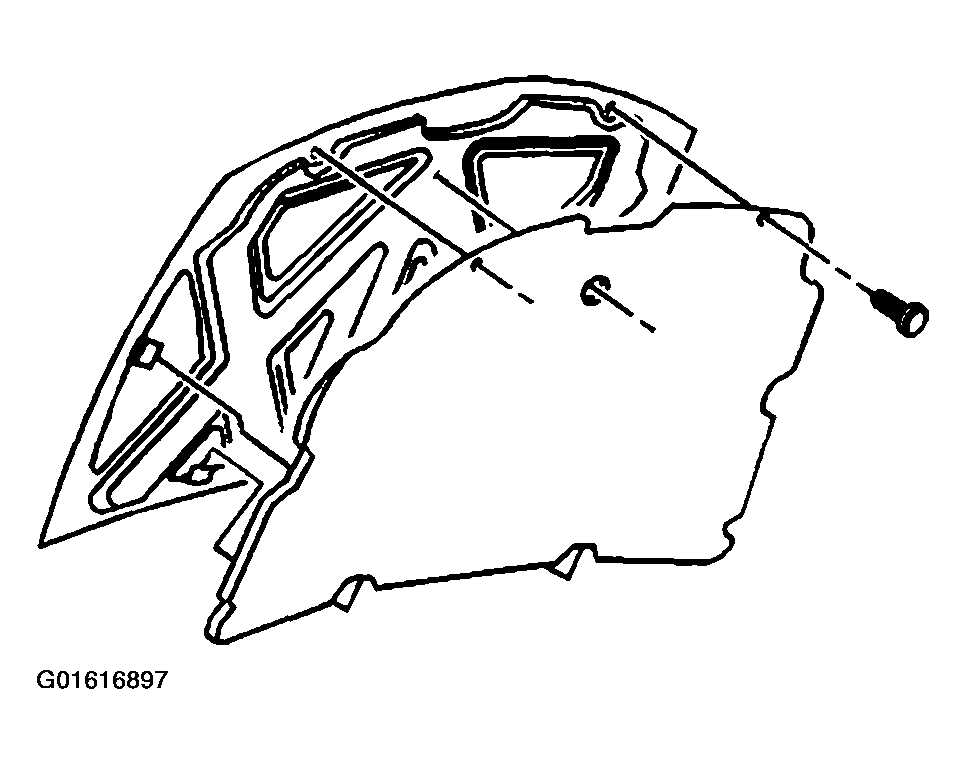

- Install the hood insulator to the hood.
- Align the hood insulator retainers holes to the holes in the hood.
- Install the hood insulator push-in retainers to the hood insulator.
- Close the hood.
Courtesy of GENERAL MOTORS CORP.
