Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE in Bumpers.
Disconnect the electrical connector from the front fog lamp assembly.

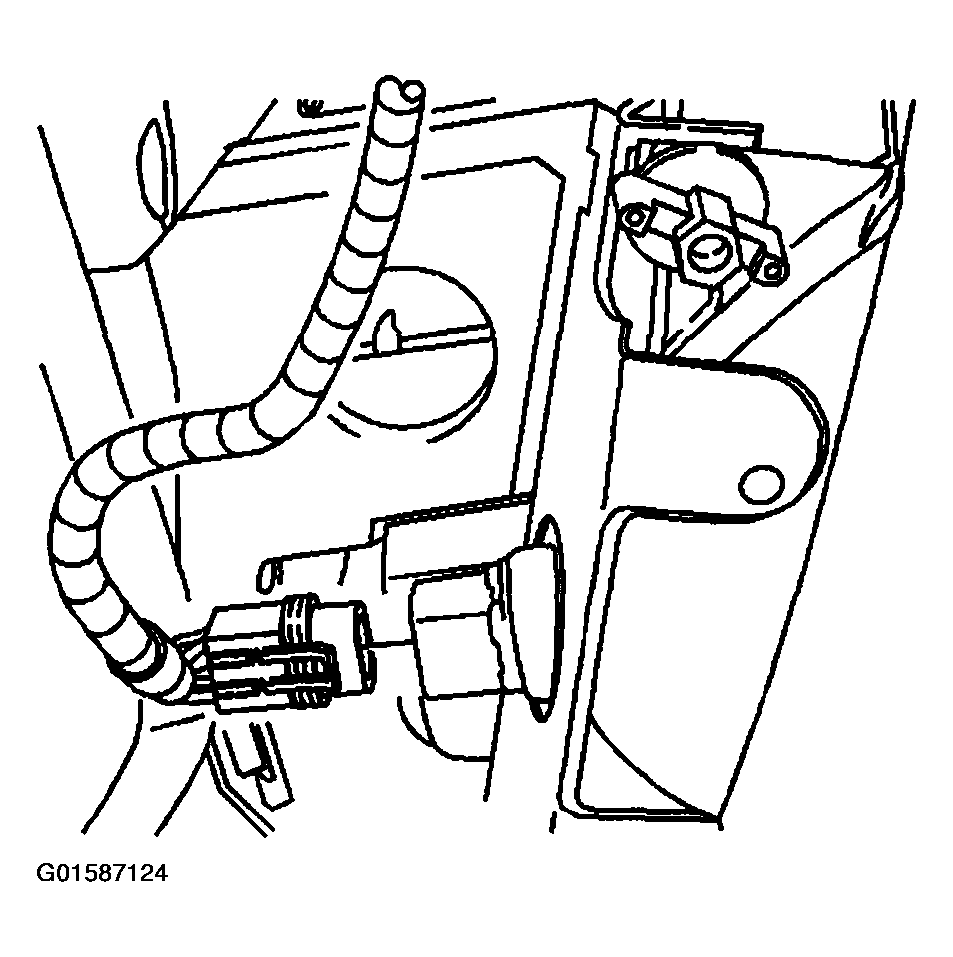

Fig 1: Disconnecting Electrical Connector From Front Fog Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

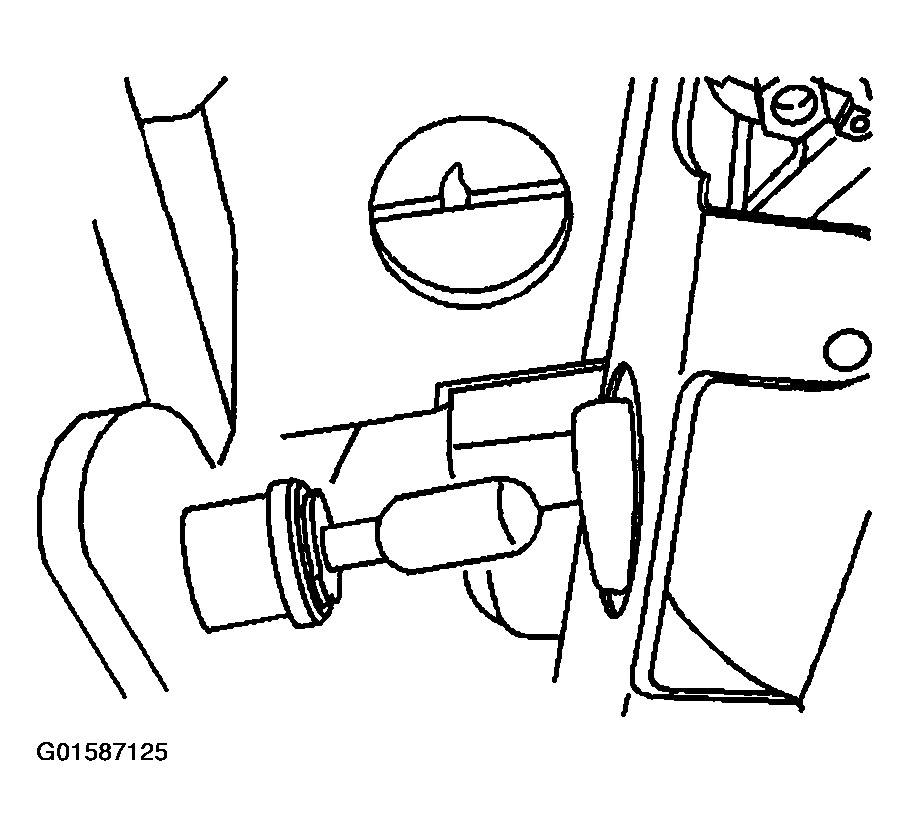

Fig 2: Removing Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the front fog lamp nuts from the front bumper impact bar.
Remove the front fog lamp assembly from the vehicle.

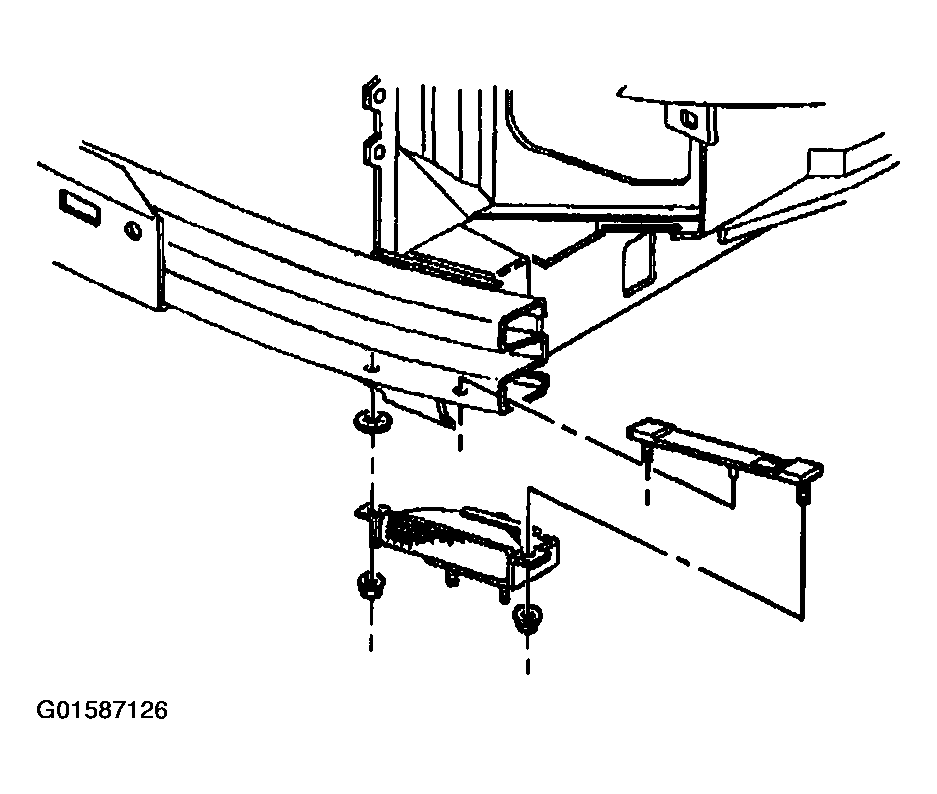

Fig 3: Removing Front Fog Lamp Assembly & Retaining Nuts
Courtesy of GENERAL MOTORS CORP.
