Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the hazard and turn signal flasher.
  2. Position the flasher to the BCM bracket, then slide the flasher to the left to secure the flasher tabs into the retaining slots on the bracket.
  3. Install the I/P driver knee bolster bracket. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.
  4. Install the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages, and Console.
  5. Install the left I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.

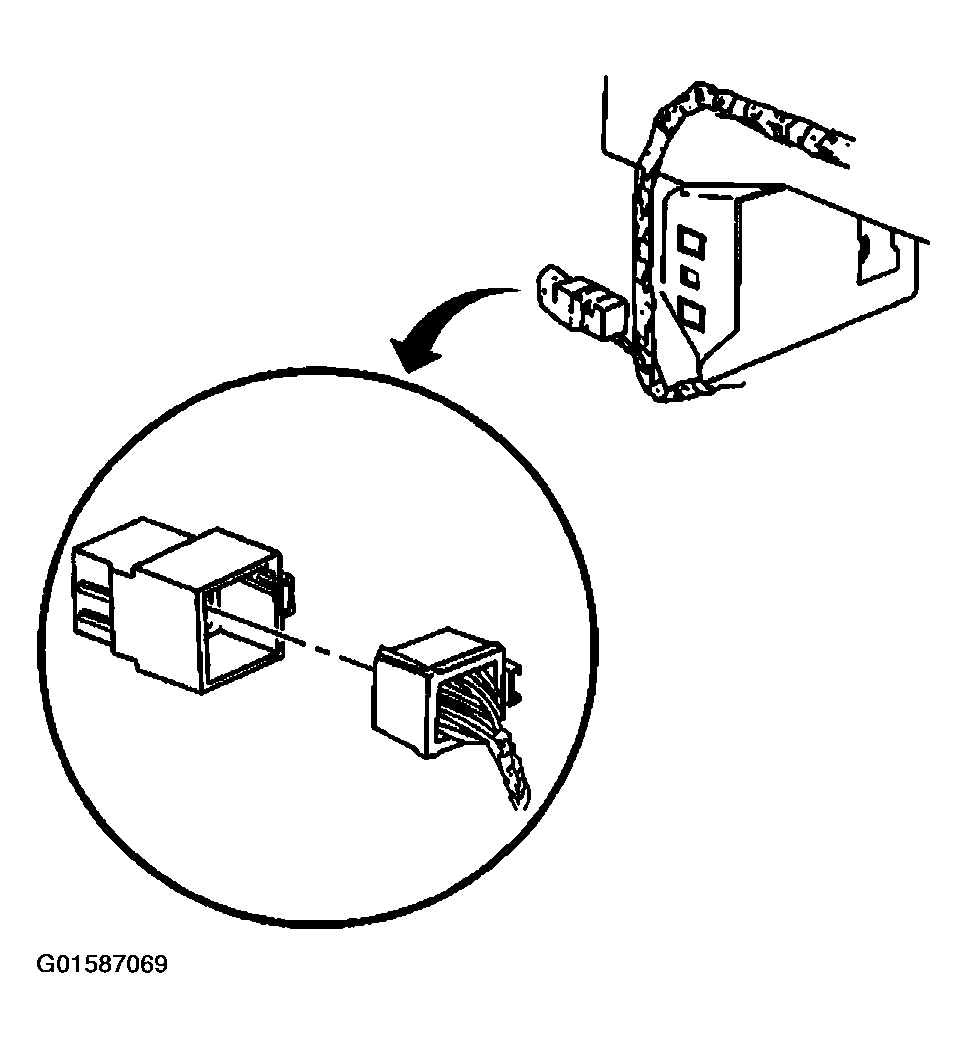

    Fig 1: Connecting Electrical Connector To Turn Signal/Hazard Warning Flasher
    G01587069Courtesy of GENERAL MOTORS CORP.
