Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment door.
  2. Depress the retaining tabs on the top and bottom of the I/P compartment lamp switch.
  3. Push the switch out of the opening.
  4. Disconnect the electrical connector from the IP compartment lamp switch.

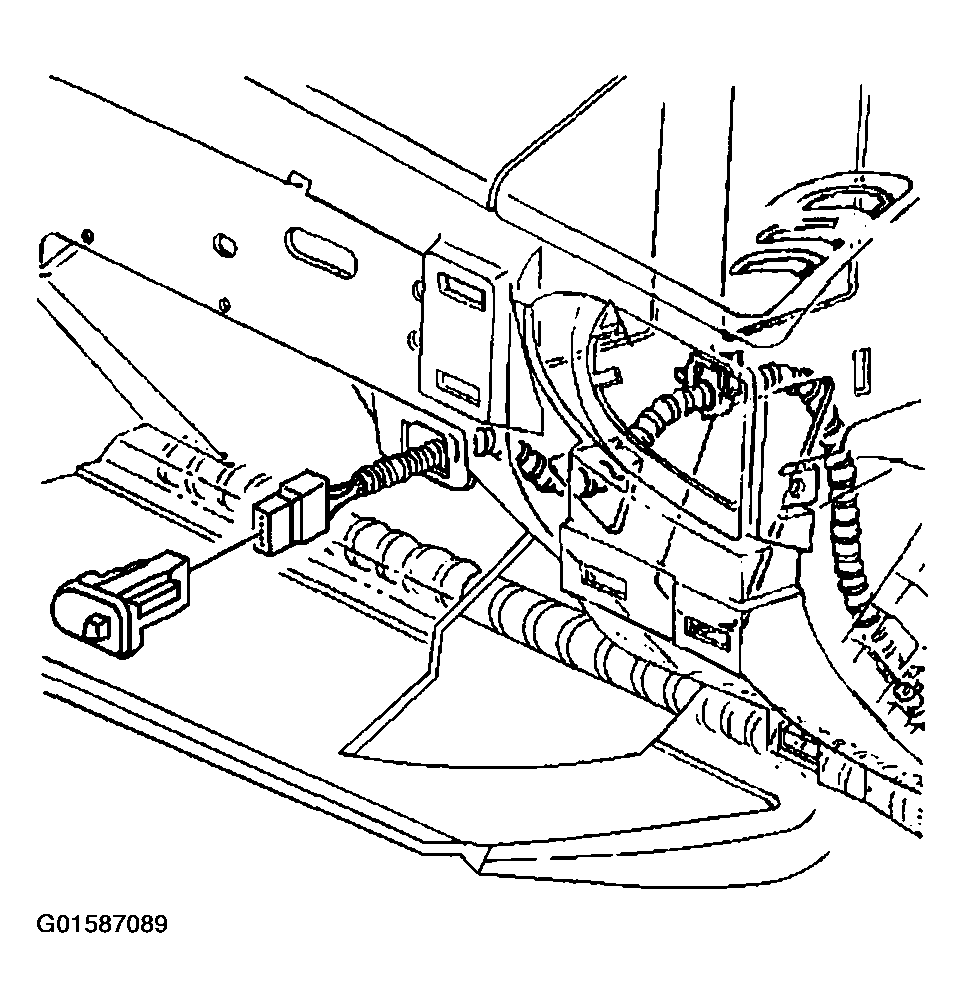

    Fig 1: Disconnecting I/P Compartment Lamp Switch Electrical Connector
    G01587089Courtesy of GENERAL MOTORS CORP.
  5. Remove the I/P compartment lamp switch.
