Removal Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
When removing a power window switch, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the power window switch if a flat-bladed tool, awl, or metal object is used to remove the power window switch from the wiring harness.
IMPORTANT:
The front end of the mounting plate (by mirror select switch) has a hard plastic lip. The mounting plate must be slid to the rear to remove this front retaining lip.
- Apply protective coating/tape at the rear of the front door power window switch mounting plate (right and/or left door).
- Remove the front door power window switch mounting plate from the front door trim panel using a small, flat bladed tool, inserted at the rear of the front door mounting plate.
Press forward in order to release the mounting plate.

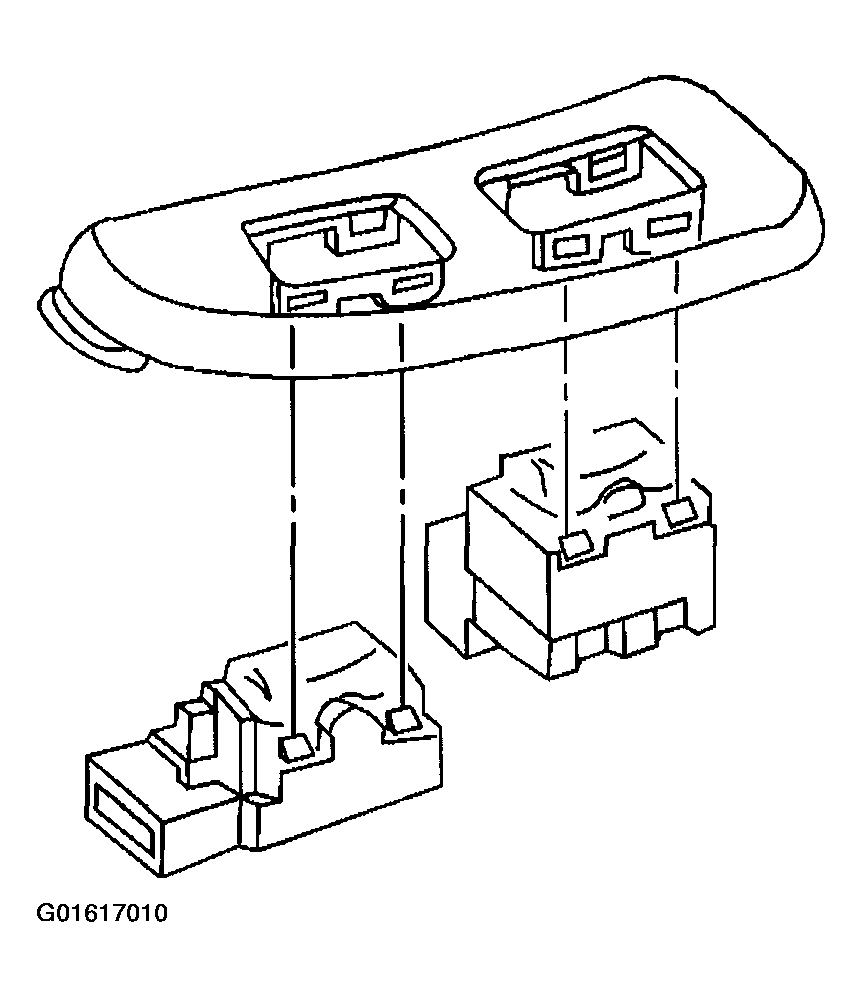

- Remove the front door power window switch from the mounting plate.

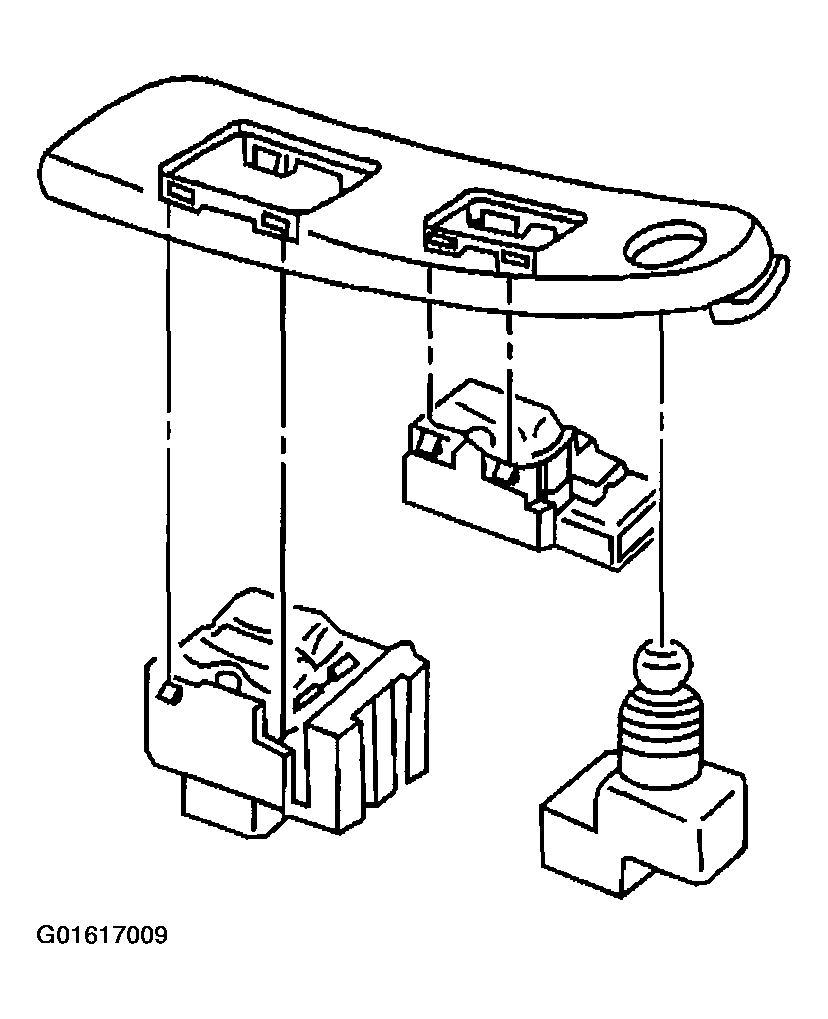

- Remove the power mirror switch.
- Disconnect the electrical connector from the front door power mirror switch.
- Disconnect the electrical connector from the front door power window switch.
- Remove the door lock switch.
- Disconnect the electrical connector from the front door lock switch.
