Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Open the front door.
Using J 36604, remove the door hinge spring from the door hinge.
Remove the door hinge spring from the vehicle.

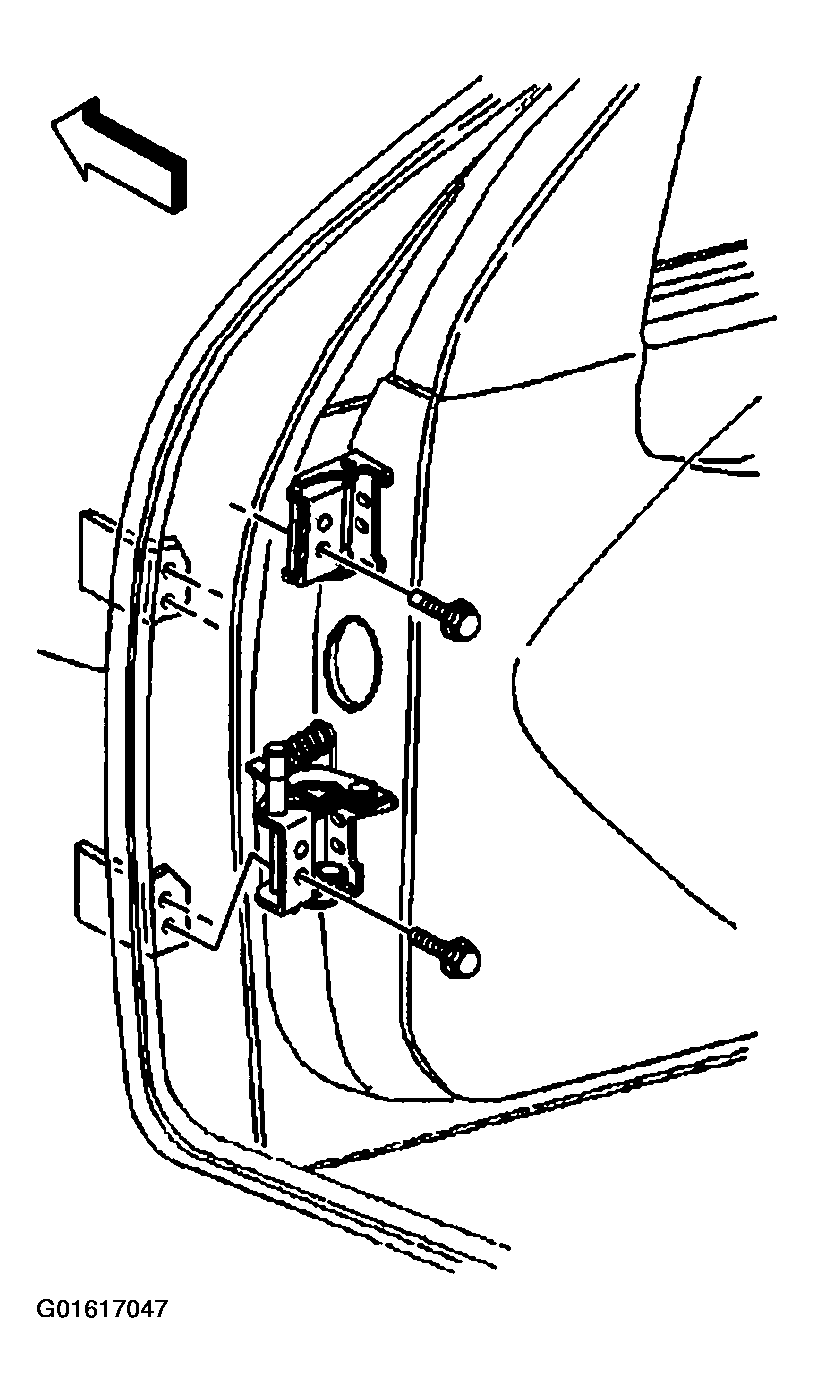

Fig 1: Front Door Hinges
Courtesy of GENERAL MOTORS CORP.
