Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully flex the cables and install them to the motors and horizontal/vertical actuators.
  2. Firmly push the oblong connector at the end of the horizontal and vertical drive cables into the motors.
  3. Install the power seat adjuster. Refer to Seat Adjuster Replacement - Front (Two-Way Manual)  or Seat Adjuster Replacement - Front (Six-Way Power) .

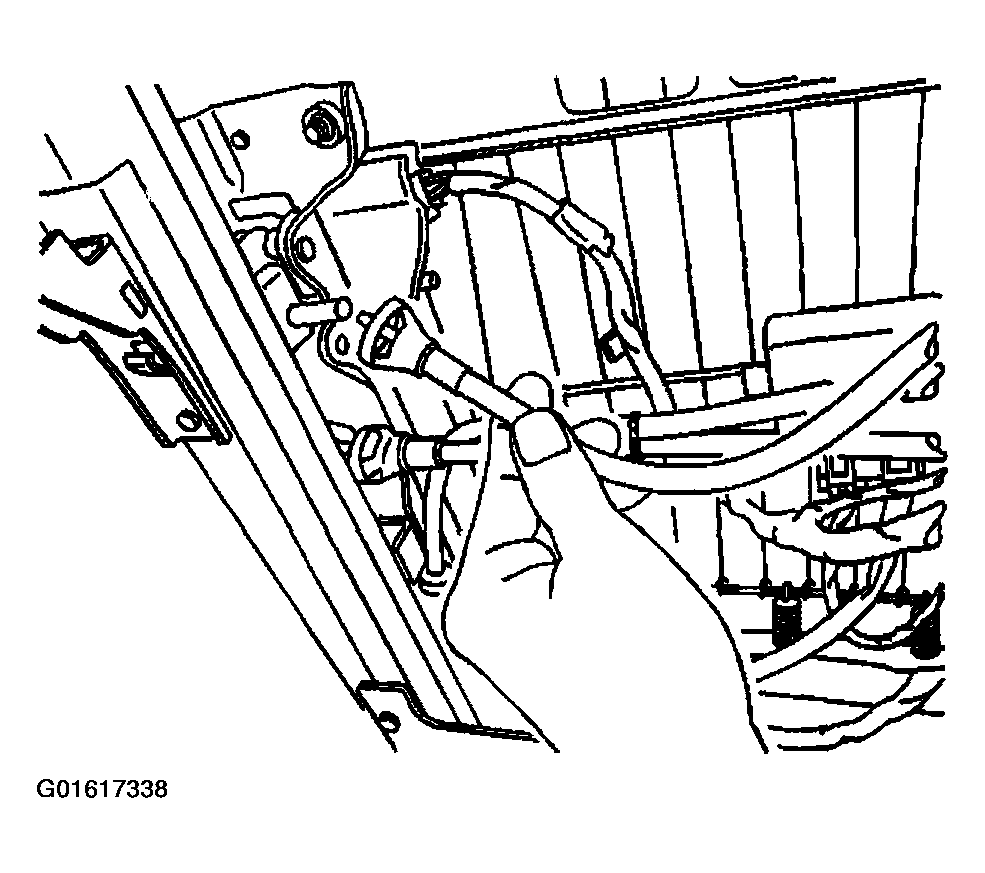

    Fig 1: Installing Drive Cable
    G01617338Courtesy of GENERAL MOTORS CORP.
