Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

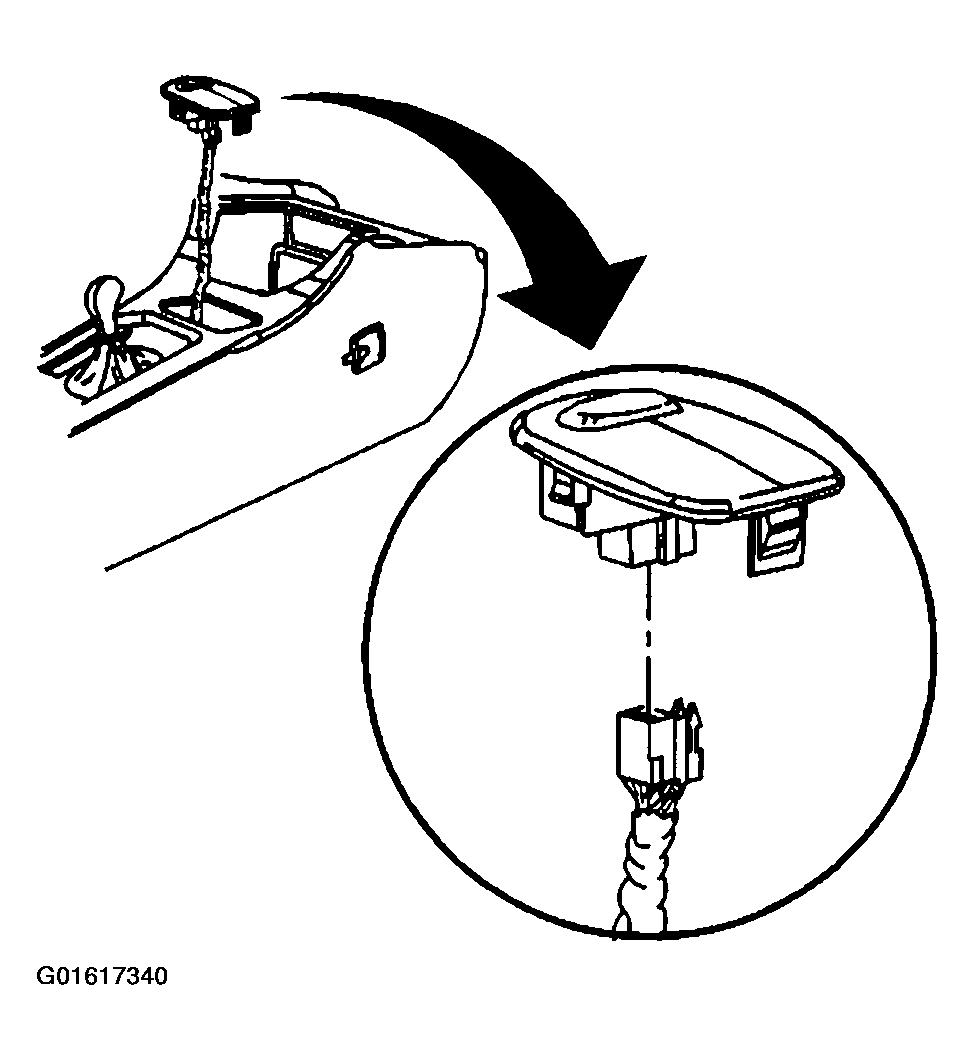

- Install the heated seat switch to the front floor console trim plate, pressing into place until fully seated.
- Connect the electrical connector to the console wiring harness.
- Install the trim plate to the front floor console. Refer to TRIM PLATE REPLACEMENT -- FRONT FLOOR CONSOLE .
