Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back pad. Refer to Seat Back Pad Replacement - Front .
  2. Remove the recliner to seat back frame pivot bolts.
  3. Remove the roll pins (2) from the recliner to seat back. Discard the roll pins.
  4. Remove the seat back from the recliner.

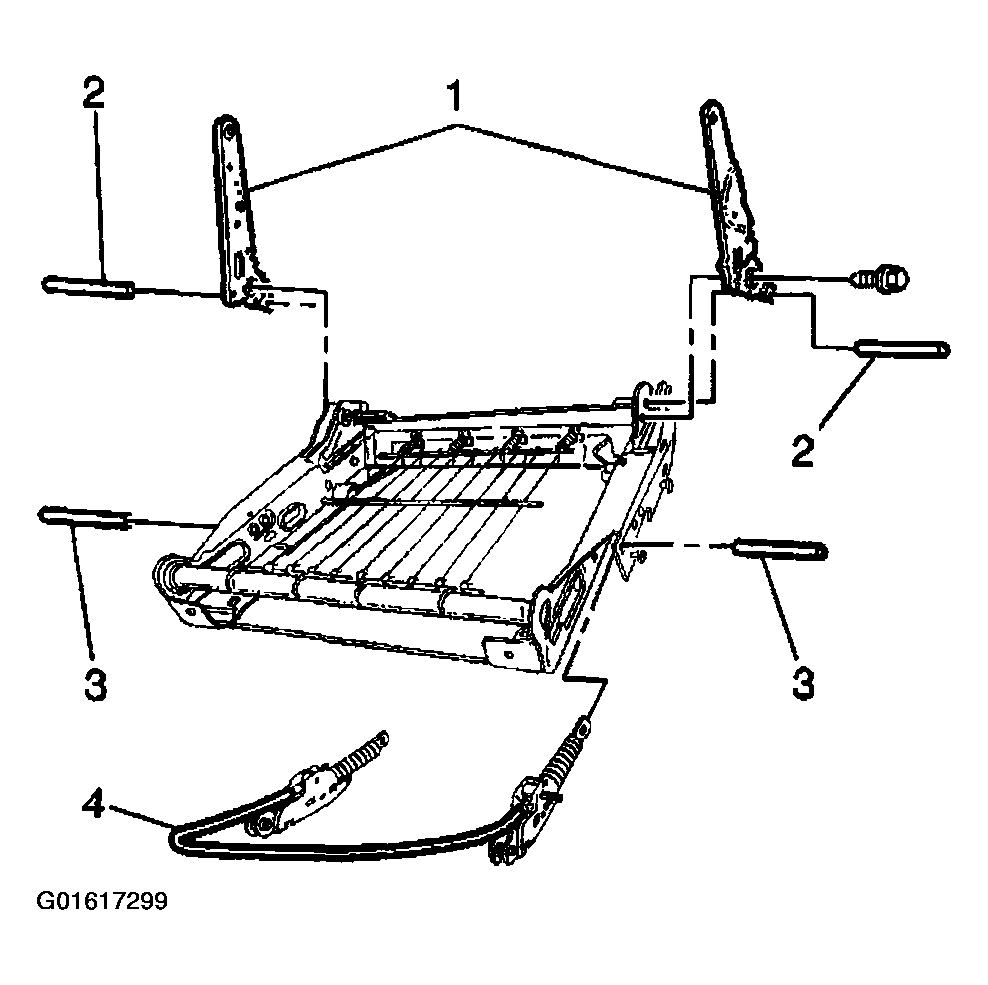

    Fig 1: Exploded View Of Front Seat Back Frame
    G01617299Courtesy of GENERAL MOTORS CORP.
