Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat back pad to the seat frame.

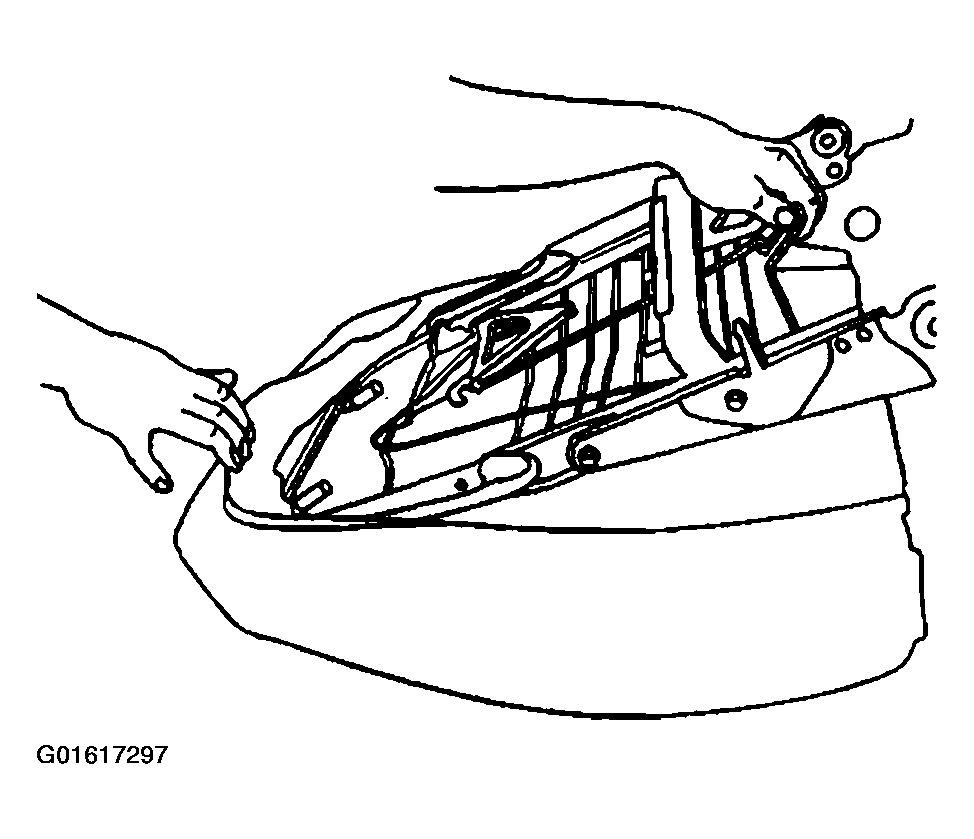

    Fig 1: Installing Seat Back Pad To Frame
    G01617297Courtesy of GENERAL MOTORS CORP.
  2. Install the hog rings securing the seat back pad to the frame.
  3. Install the front seat back cover. Refer to Seat Back Cover Replacement - Front .

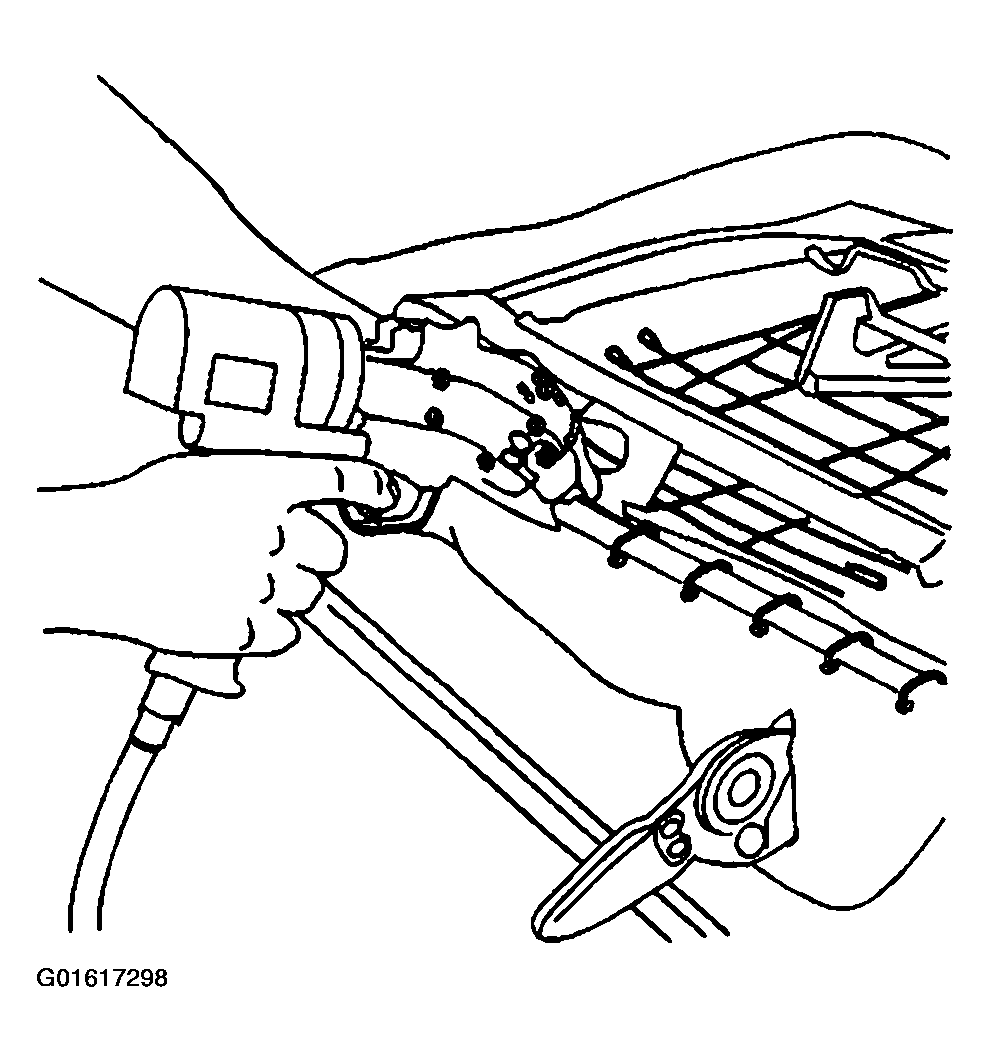

    Fig 2: Installing Hog Rings
    G01617298Courtesy of GENERAL MOTORS CORP.
