Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outer trim panel from the front seat cushion. Refer to Trim Panel Replacement - Front Seat .
  2. Remove the screws from the seat switch to the trim panel.

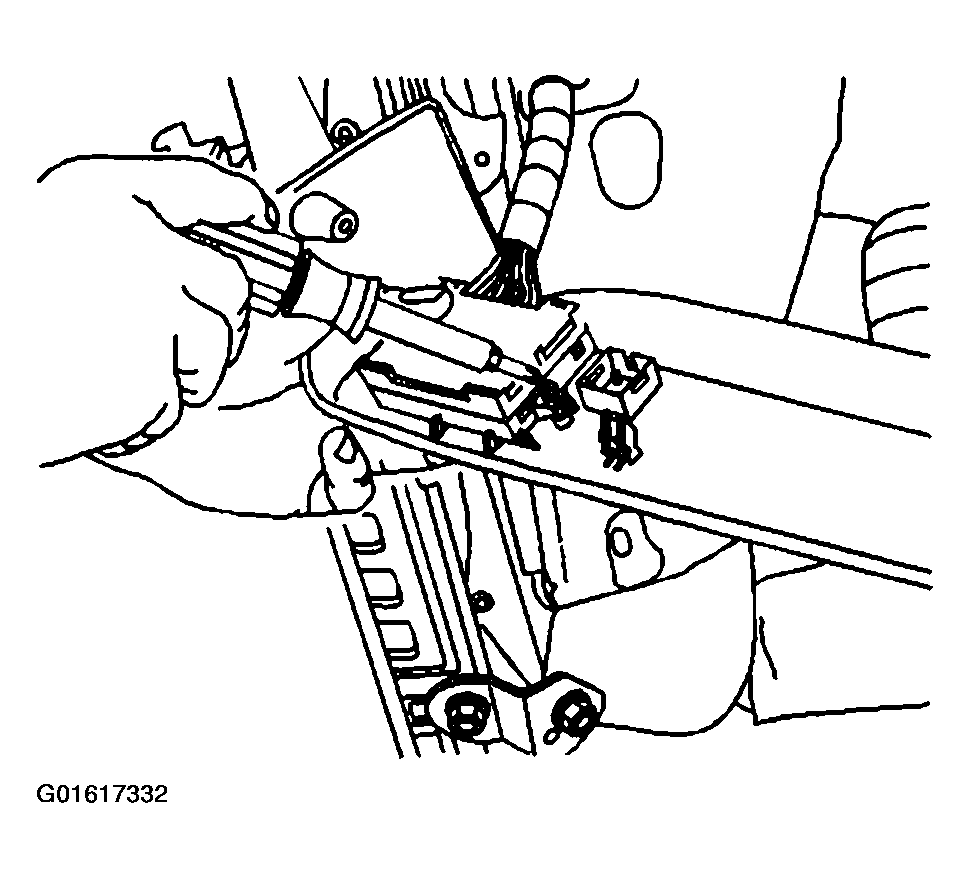

    Fig 1: Removing Seat Switch Screws
    G01617332Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (2) from the power front seat switch.
  4. Remove the power front seat switch.

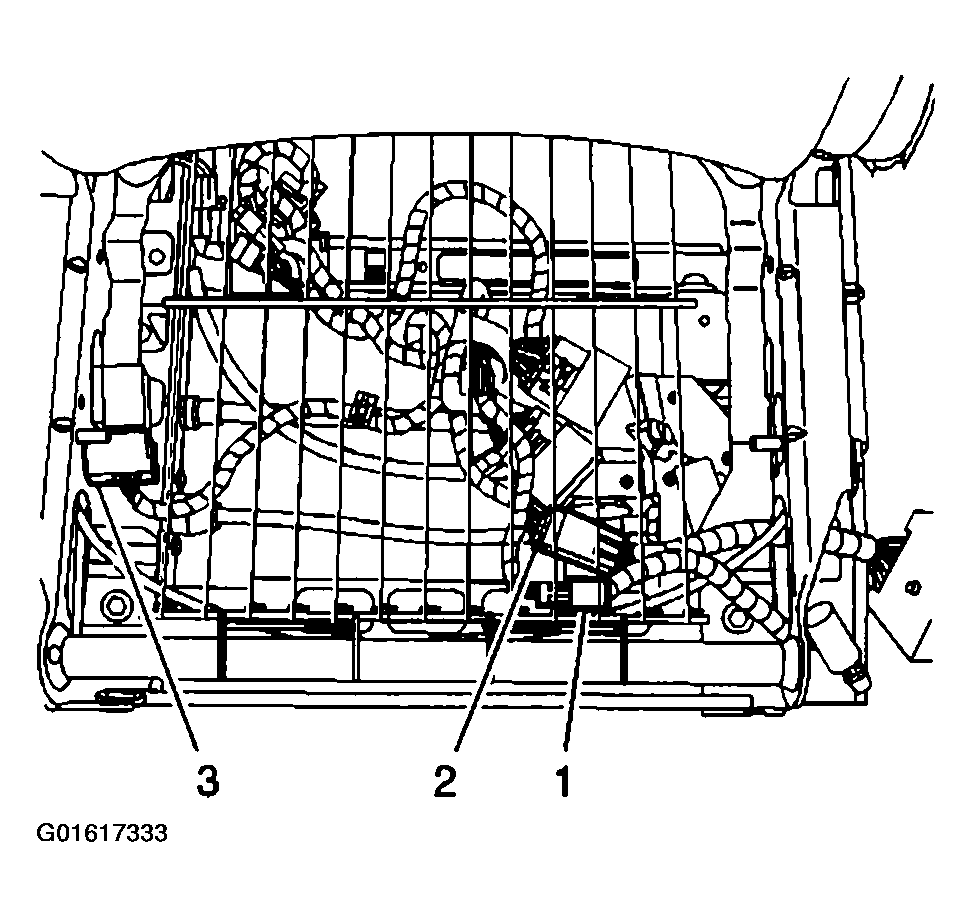

    Fig 2: Power Front Seat Switch Electrical Connector
    G01617333Courtesy of GENERAL MOTORS CORP.
