Driveline Disassembled Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

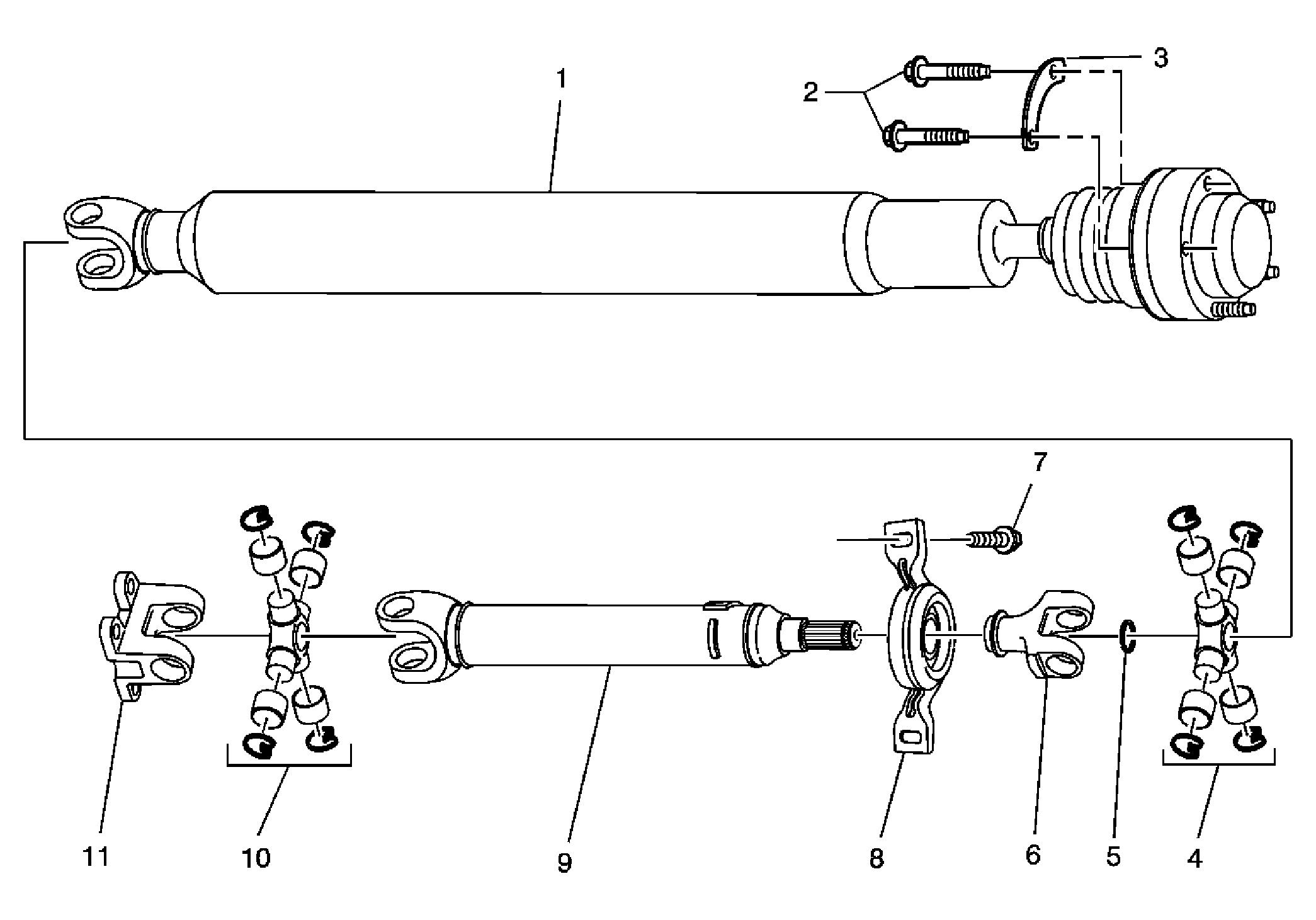

| Callout |
Component Name |
| 1 |
Front Shaft |
| 2 |
Front Mounting Bolt |
| 3 |
Washer |
| 4 |
Universal Joint |
| 5 |
Snap Ring |
| 6 |
Yoke |
| 7 |
Center Support Bearing Bolt |
| 8 |
Center Support Bearing |
| 9 |
Rear Shaft |
| 10 |
Universal Joint |
| 11 |
Rear Flange |
