Auto Level Control (ALC) Sensor Connector End View - With Inflator
Auto Level Control (ALC) Sensor Connector End View - With Inflator

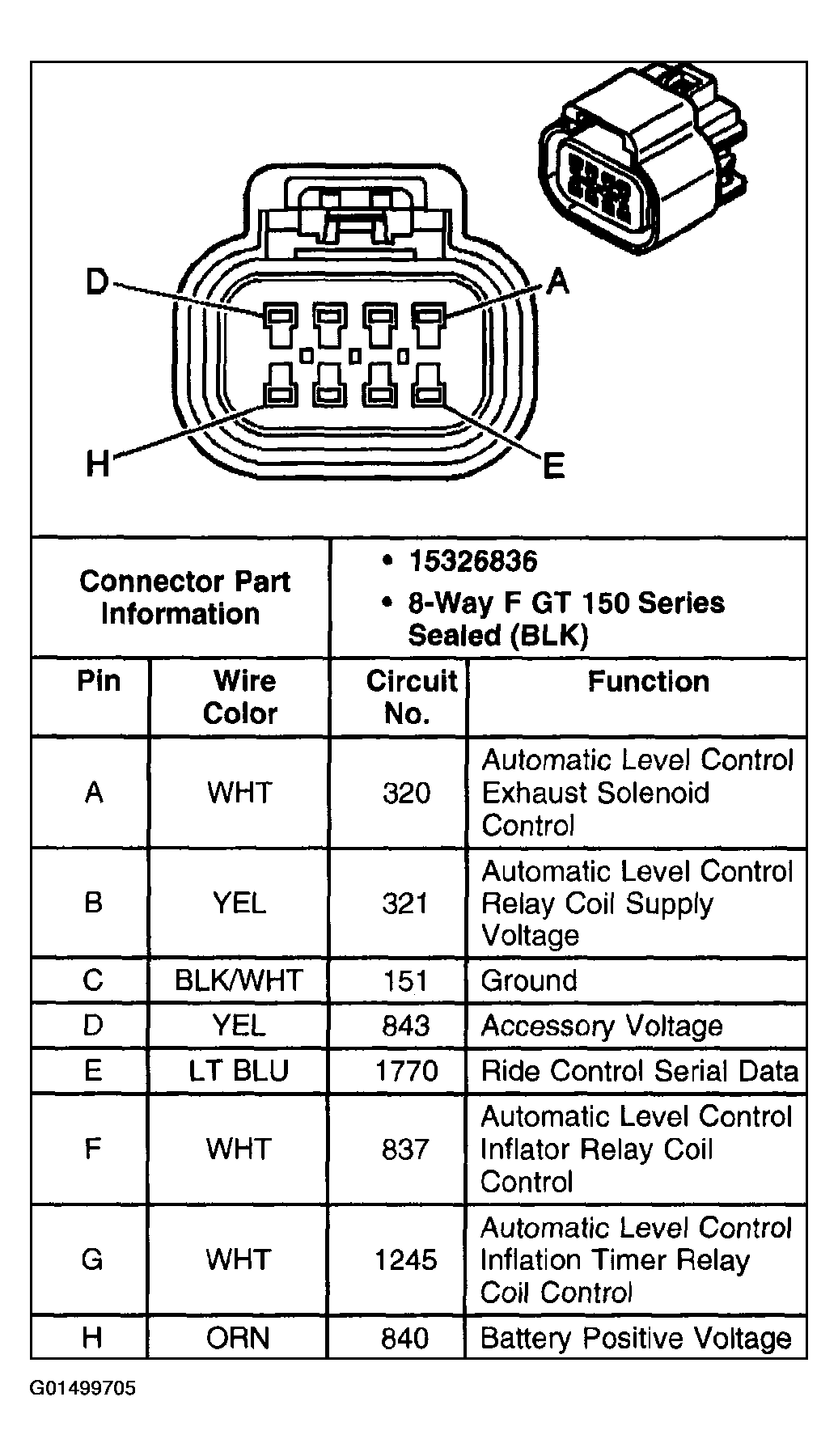

Fig 1: Auto Level Control (ALC) Sensor - With Inflator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
