Driver Information Center (DIC) Switch Connector End View
Driver Information Center (DIC) Switch Connector End View

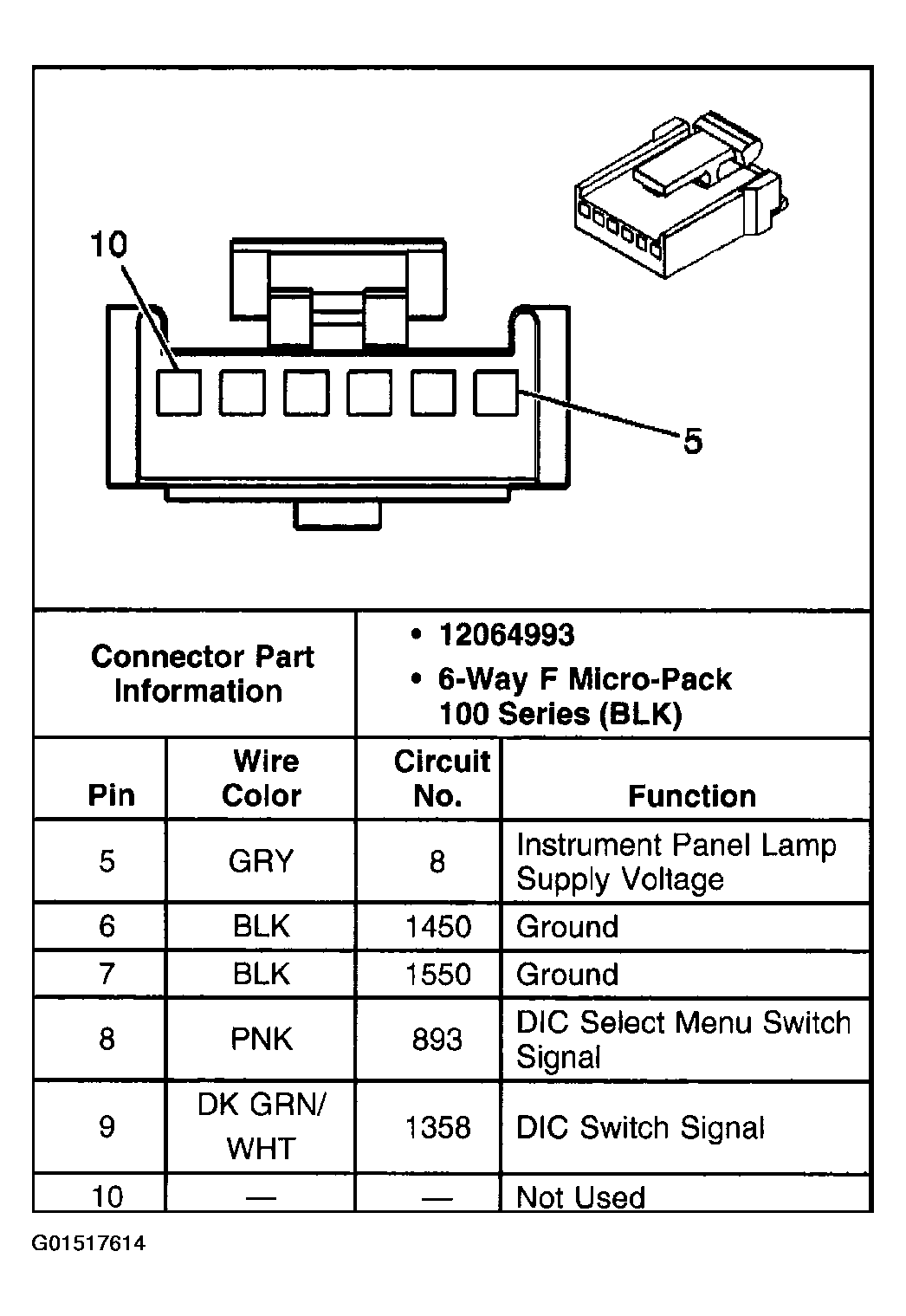

Fig 1: Driver Information Center (DIC) Switch (UH9)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
