Home › Pontiac › 2003 › Aztek AWD › Repair and Diagnosis › Quick Lookups › Wiring Diagrams › OEM Connector End Views › Connector End Views › In-Line Connector End View C101

In-Line Connector End View C101

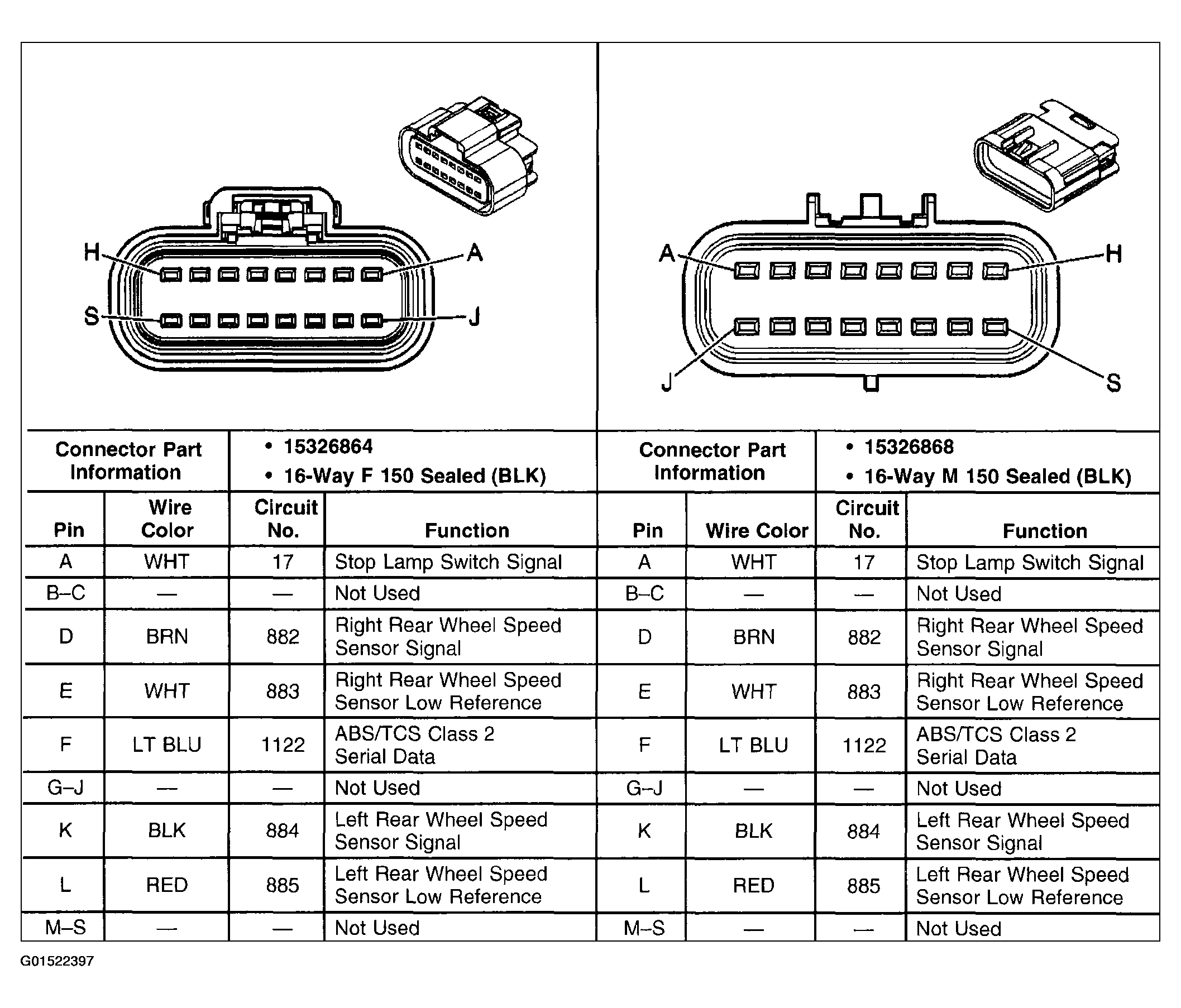

Fig 1: In-Line Connector C101
G01522397Courtesy of GENERAL MOTORS CORP.
