In-Line Connector End View C102

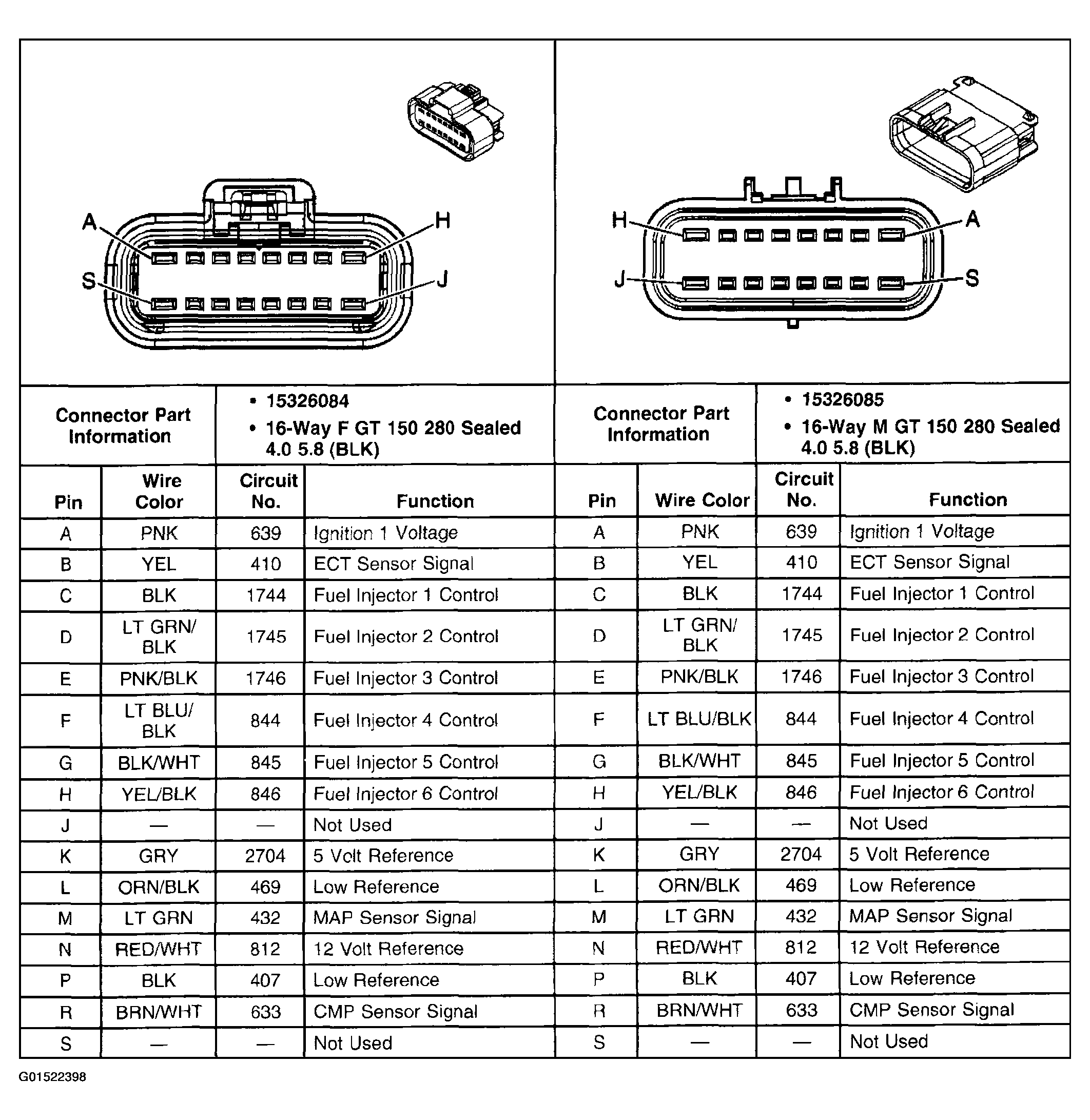

Fig 1: In-Line Connector C102
G01522398Courtesy of GENERAL MOTORS CORP.
