In-Line Connector End View C103

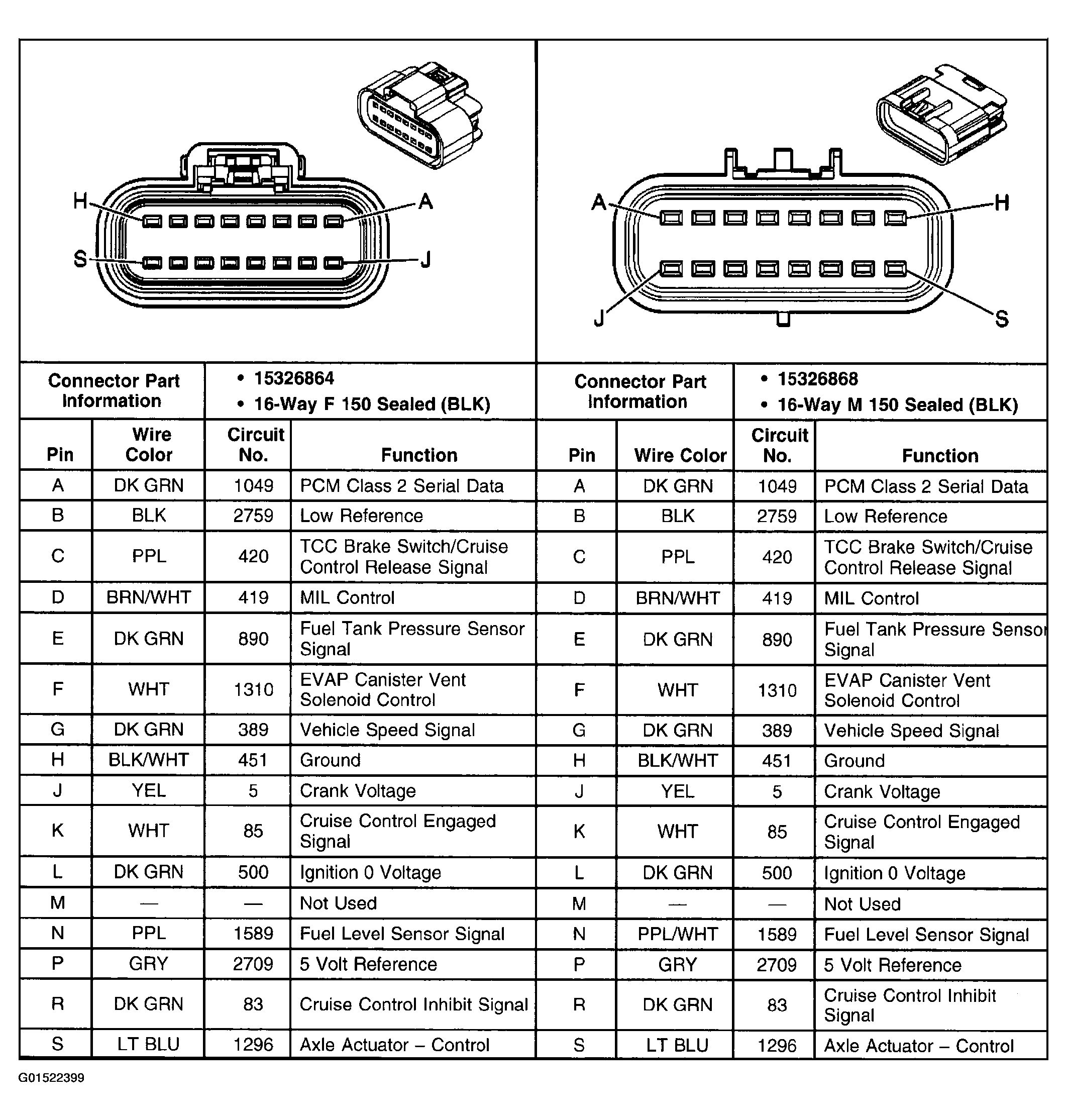

Fig 1: In-Line Connector C103
G01522399Courtesy of GENERAL MOTORS CORP.
