In-Line Connector End View C210

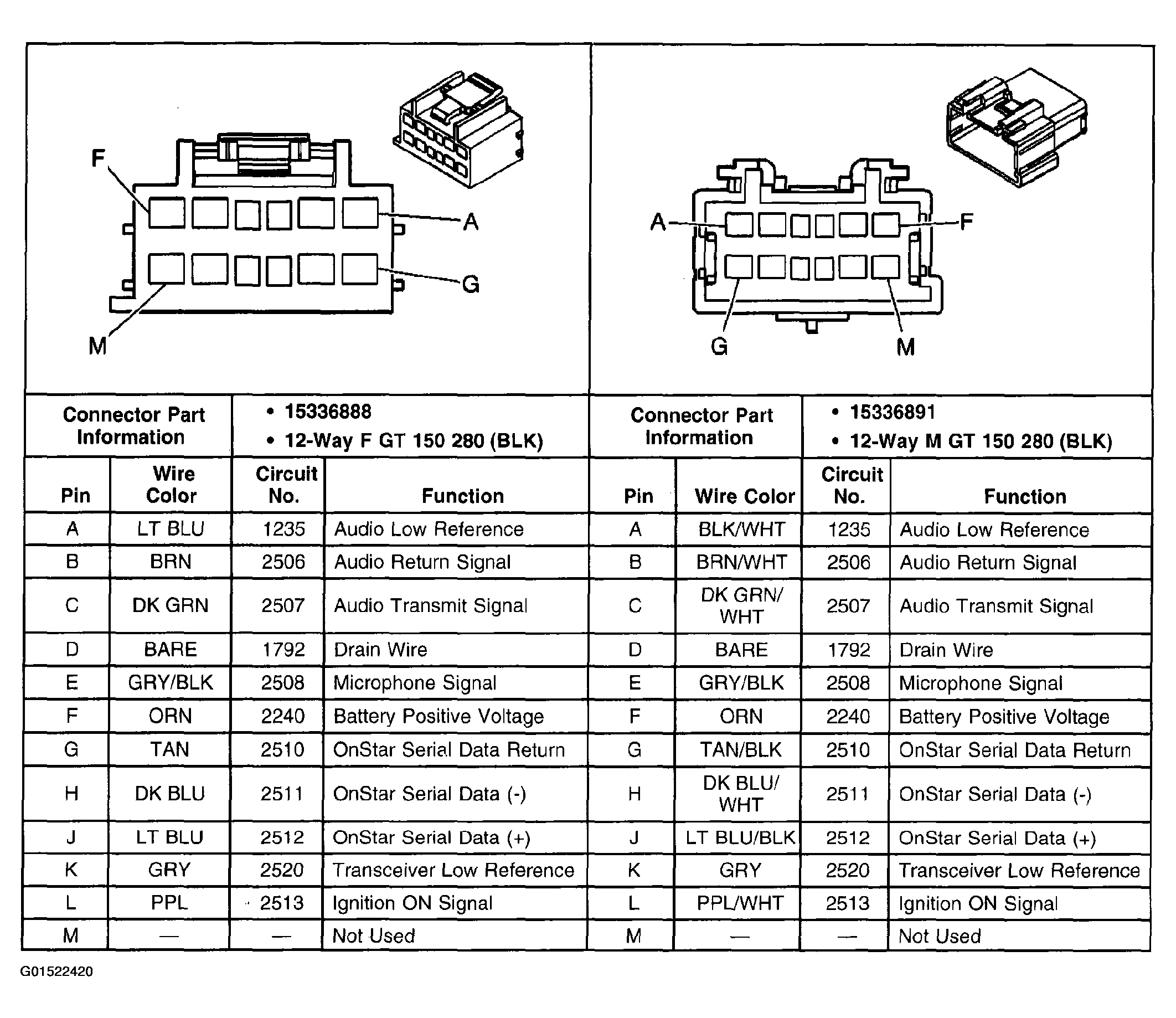

Fig 1: In-Line Connector C210
G01522420Courtesy of GENERAL MOTORS CORP.
