In-Line Connector End View C303

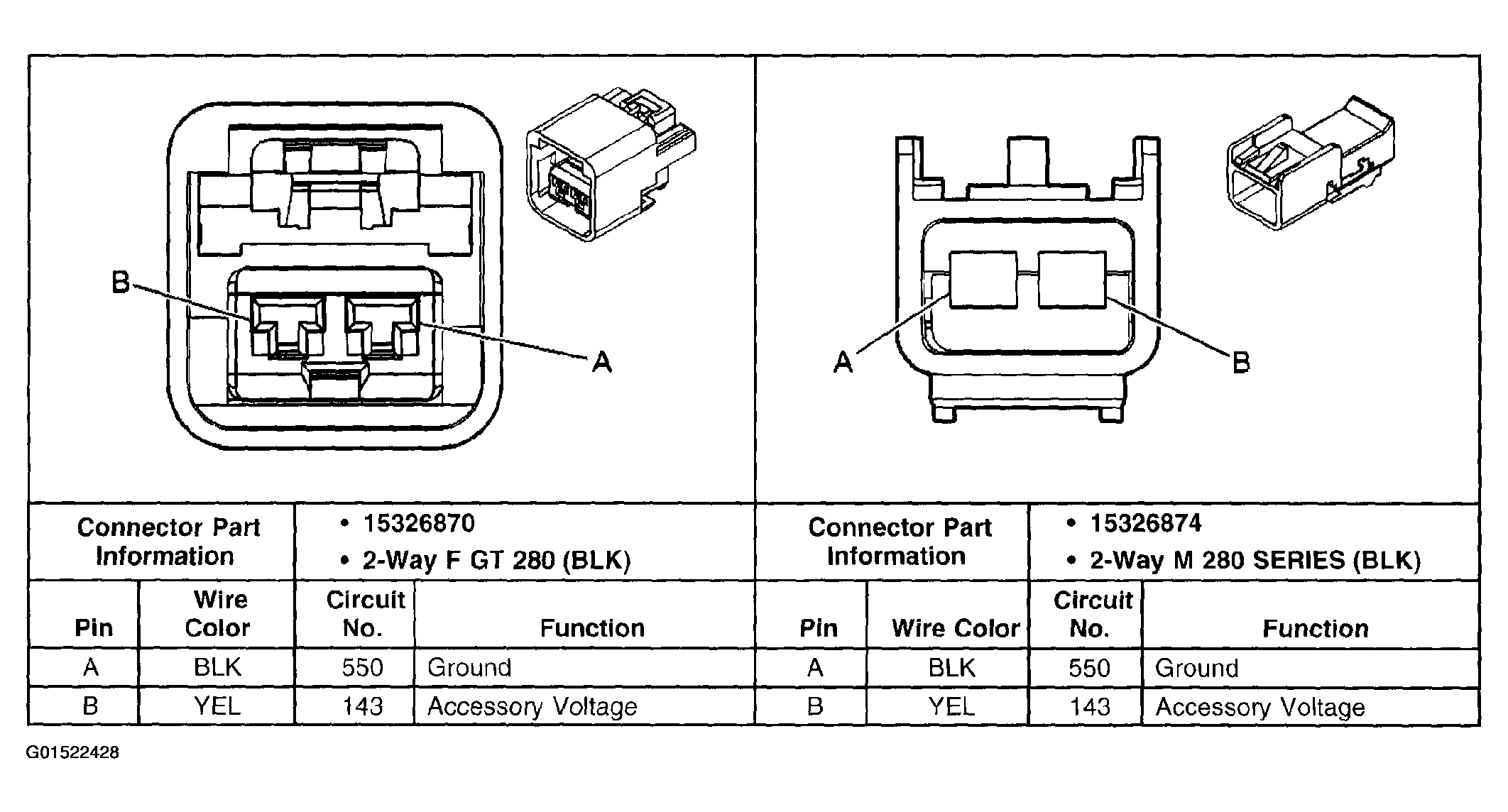

Fig 1: In-Line Connector C303
G01522428Courtesy of GENERAL MOTORS CORP.
