In-Line Connector End View C305

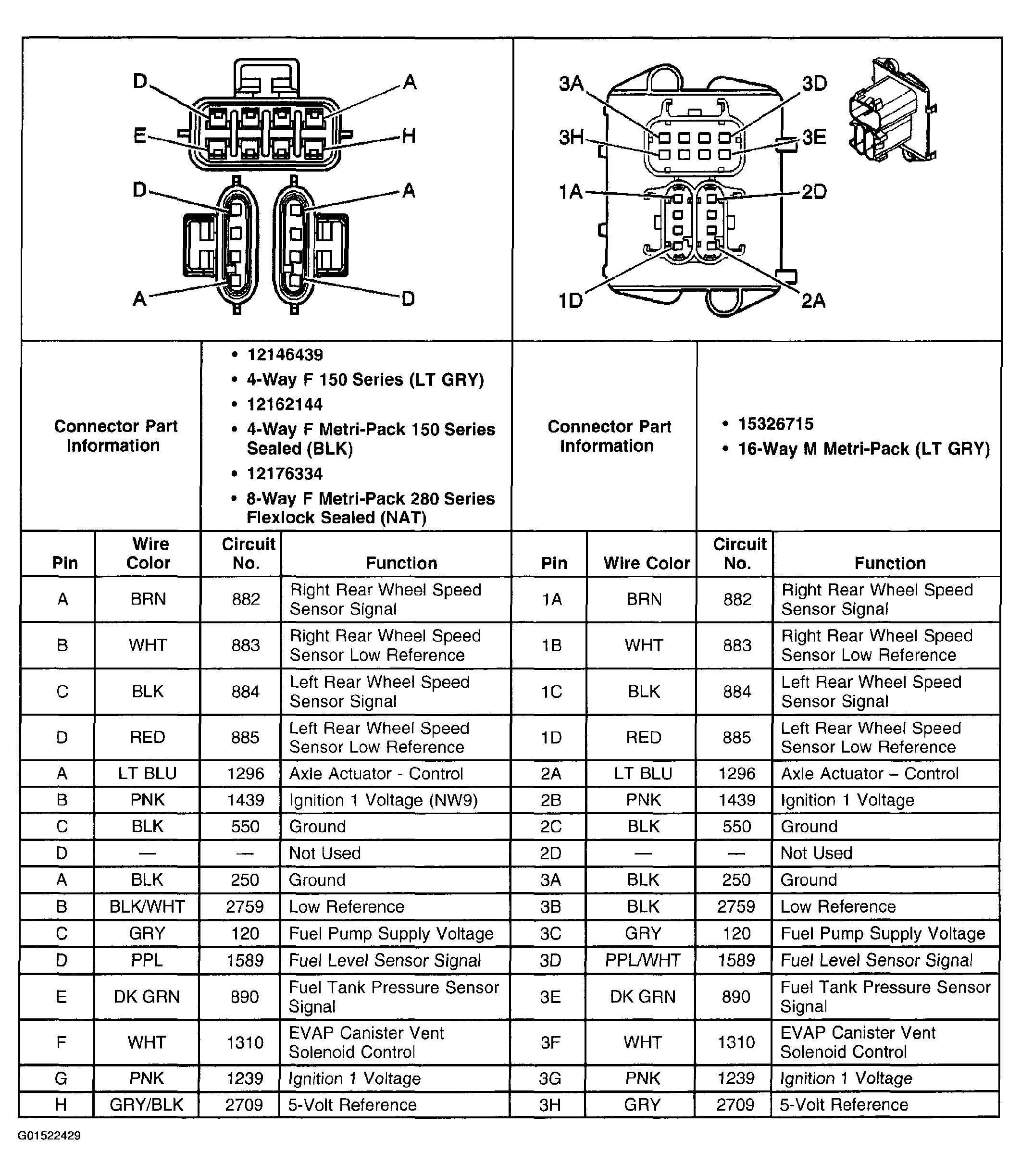

Fig 1: In-Line Connector C305
G01522429Courtesy of GENERAL MOTORS CORP.
