In-Line Connector End View C306

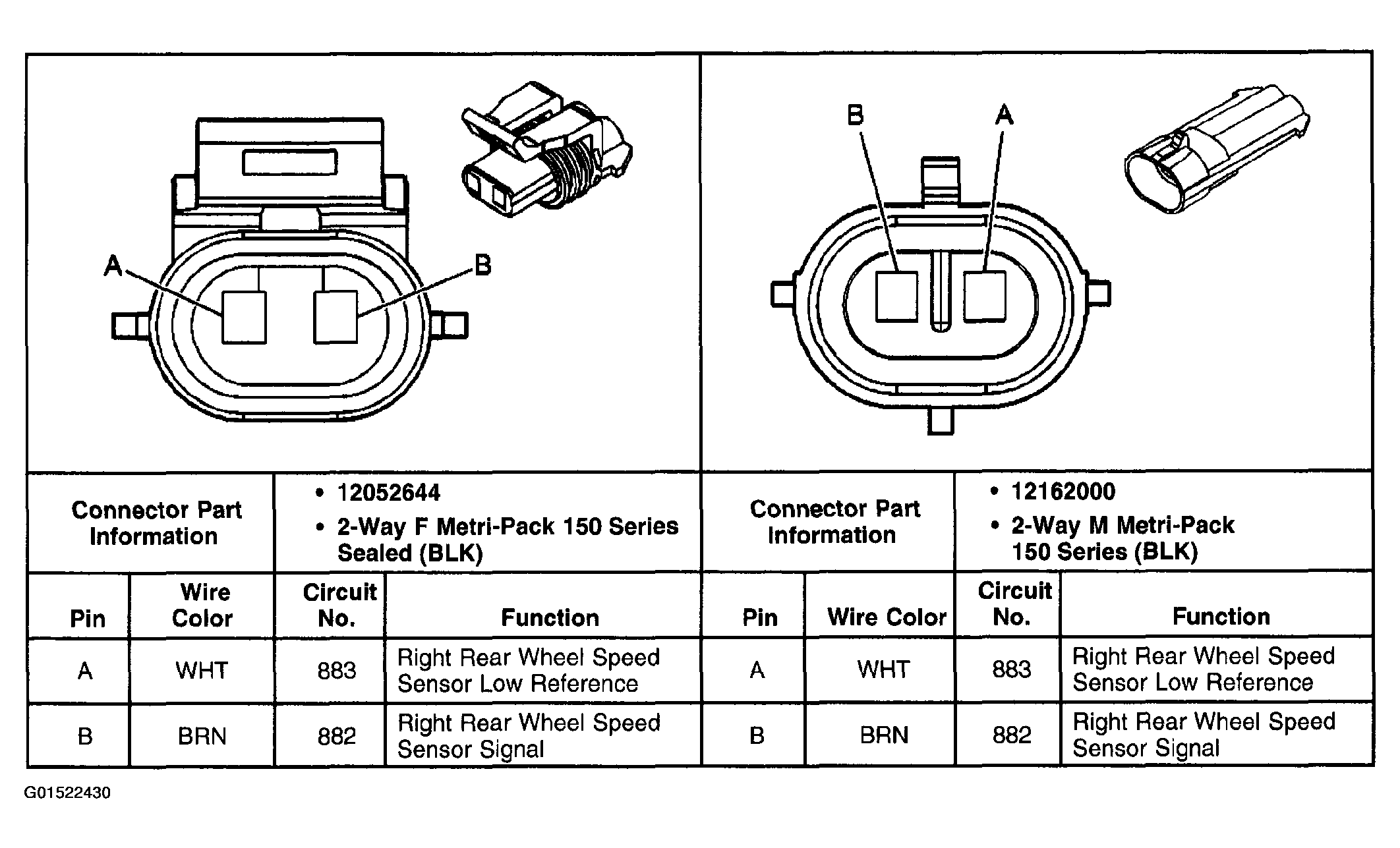

Fig 1: In-Line Connector C306
G01522430Courtesy of GENERAL MOTORS CORP.
