In-Line Connector End View C308

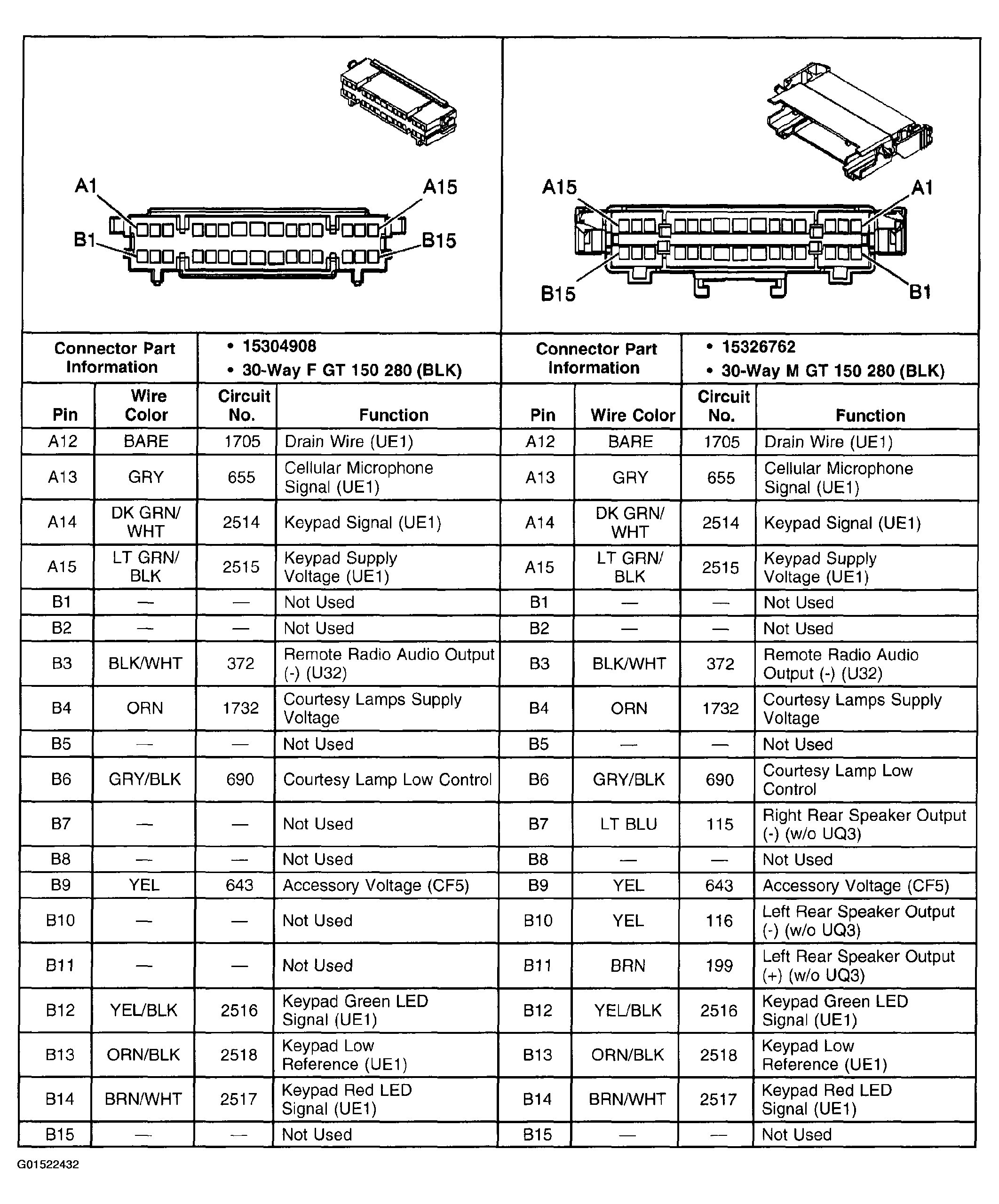

Fig 1: In-Line Connector C308
G01522432Courtesy of GENERAL MOTORS CORP.
