In-Line Connector End View C309

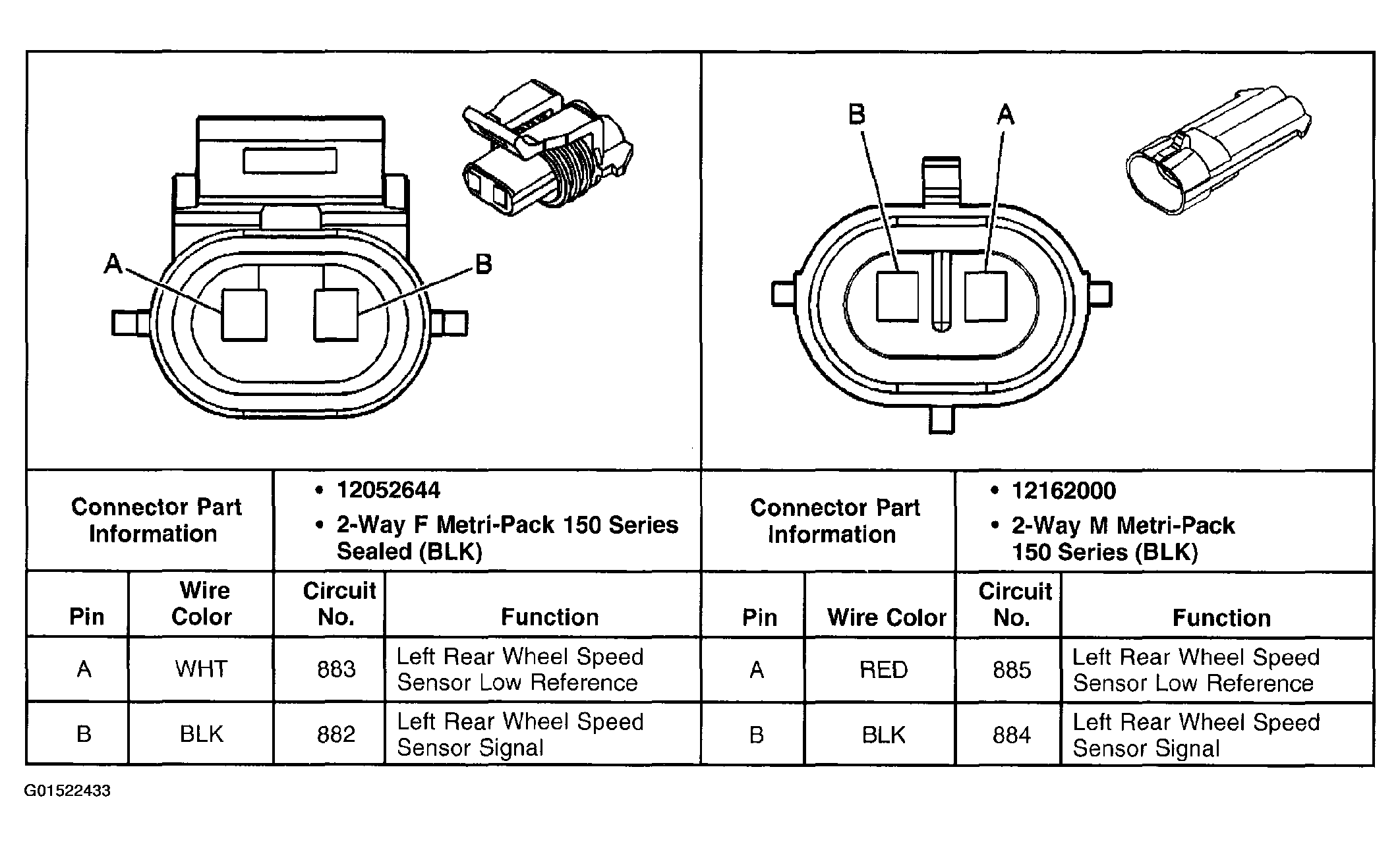

Fig 1: In-Line Connector C309
G01522433Courtesy of GENERAL MOTORS CORP.
