In-Line Connector End View C319

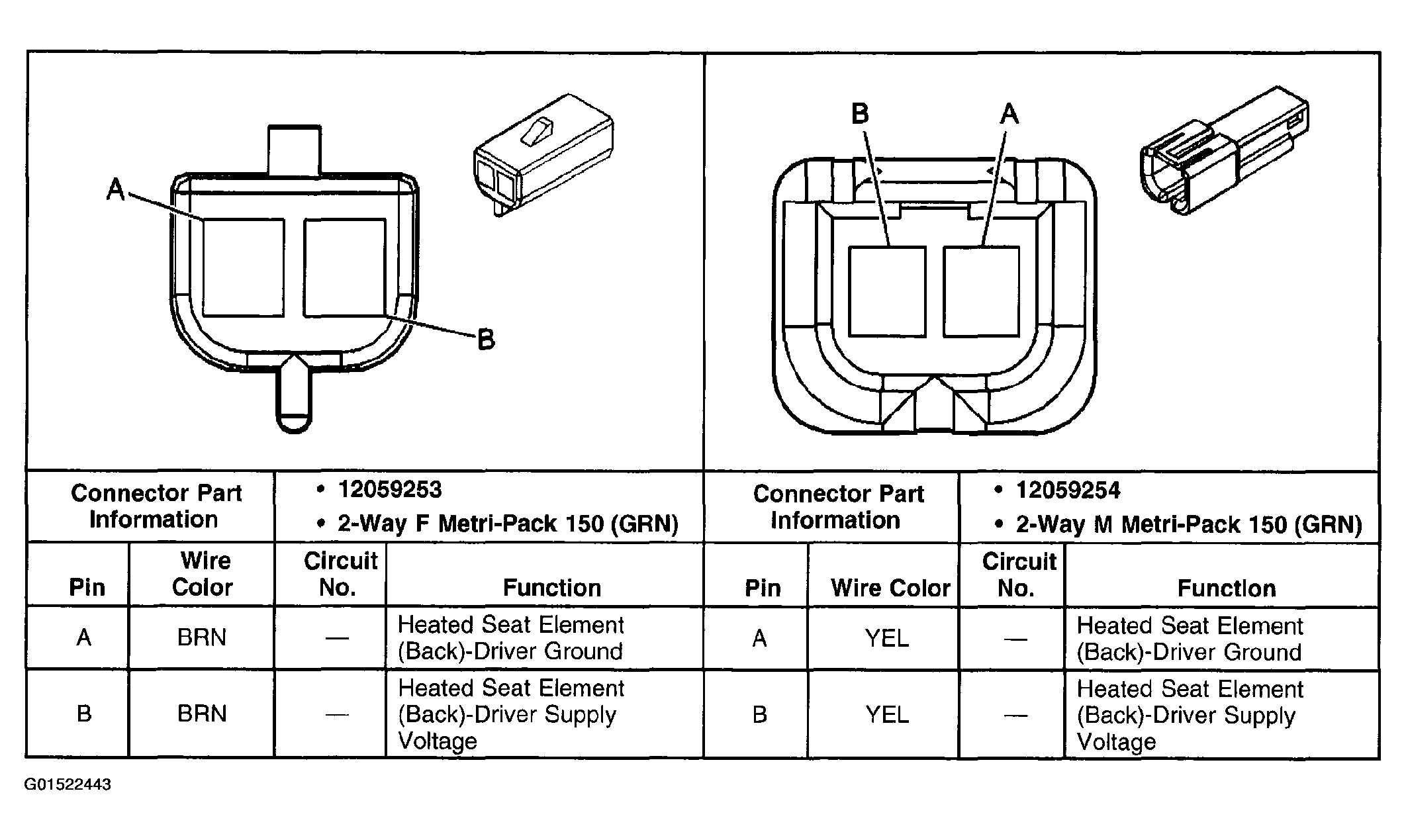

Fig 1: In-Line Connector C319
G01522443Courtesy of GENERAL MOTORS CORP.
