In-Line Connector End View C407

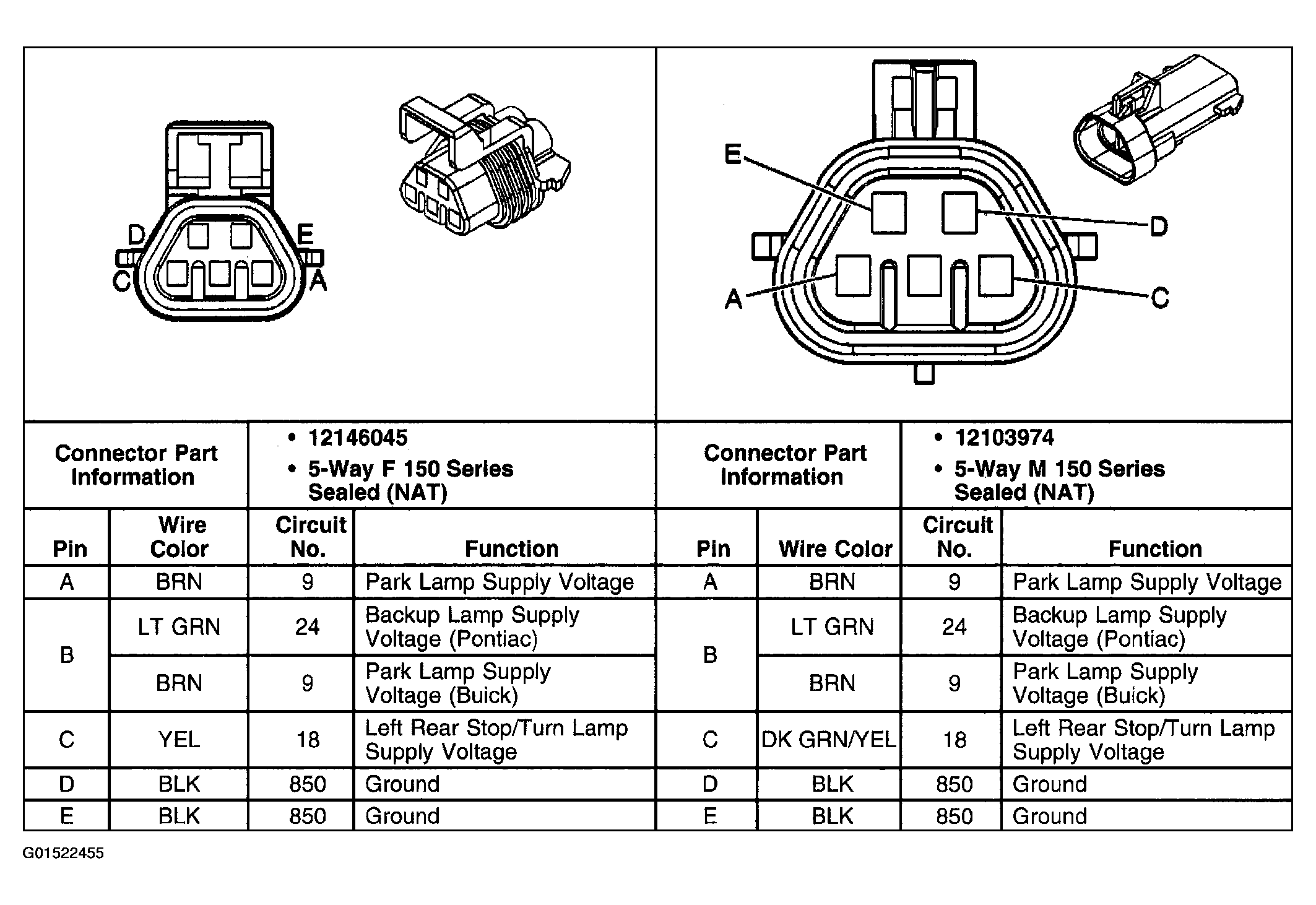

Fig 1: In-Line Connector C407
G01522455Courtesy of GENERAL MOTORS CORP.
