In-Line Connector End View C408

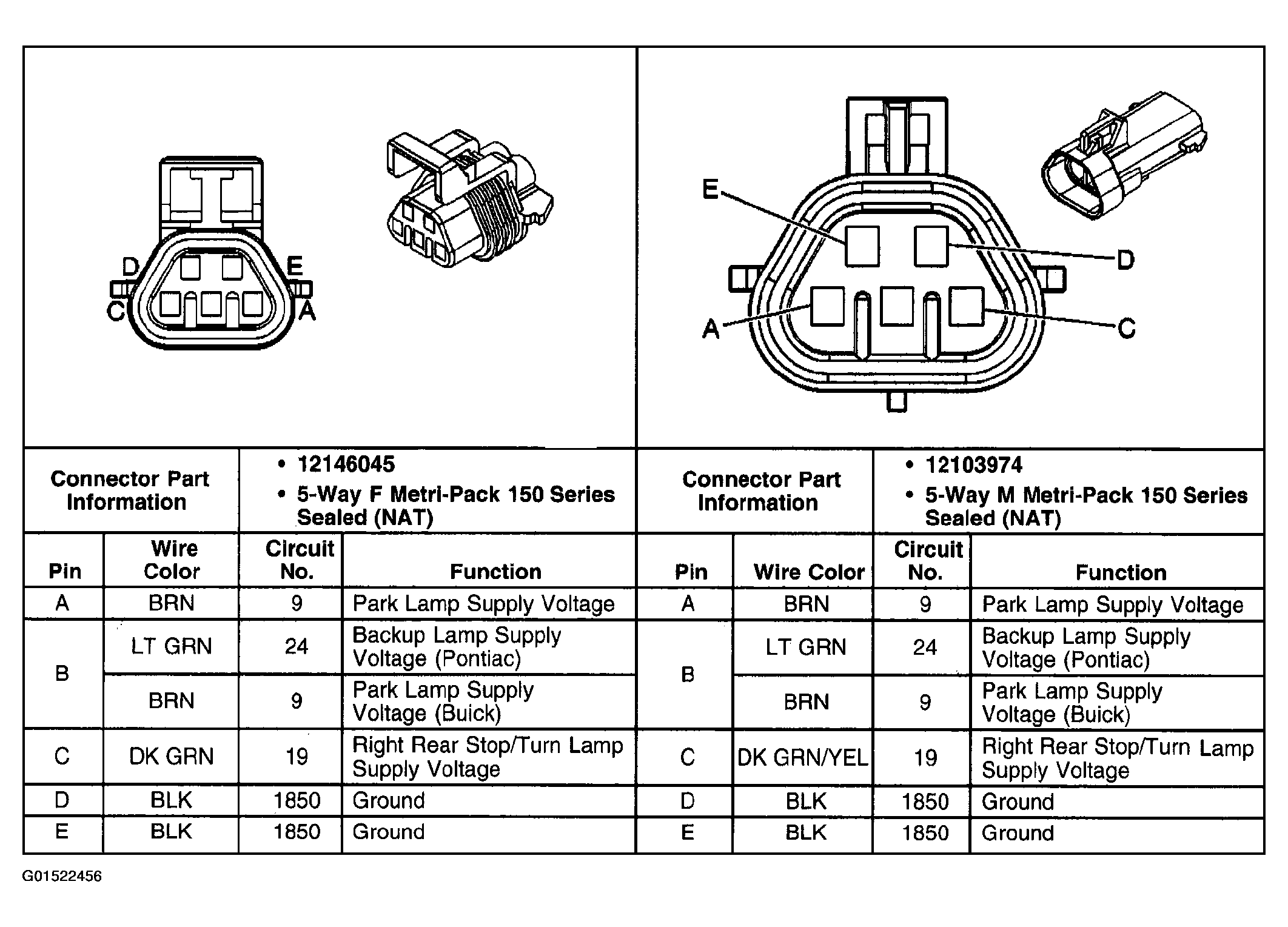

Fig 1: In-Line Connector C408
G01522456Courtesy of GENERAL MOTORS CORP.
