In-Line Connector End View C411
In-Line Connector End View C411

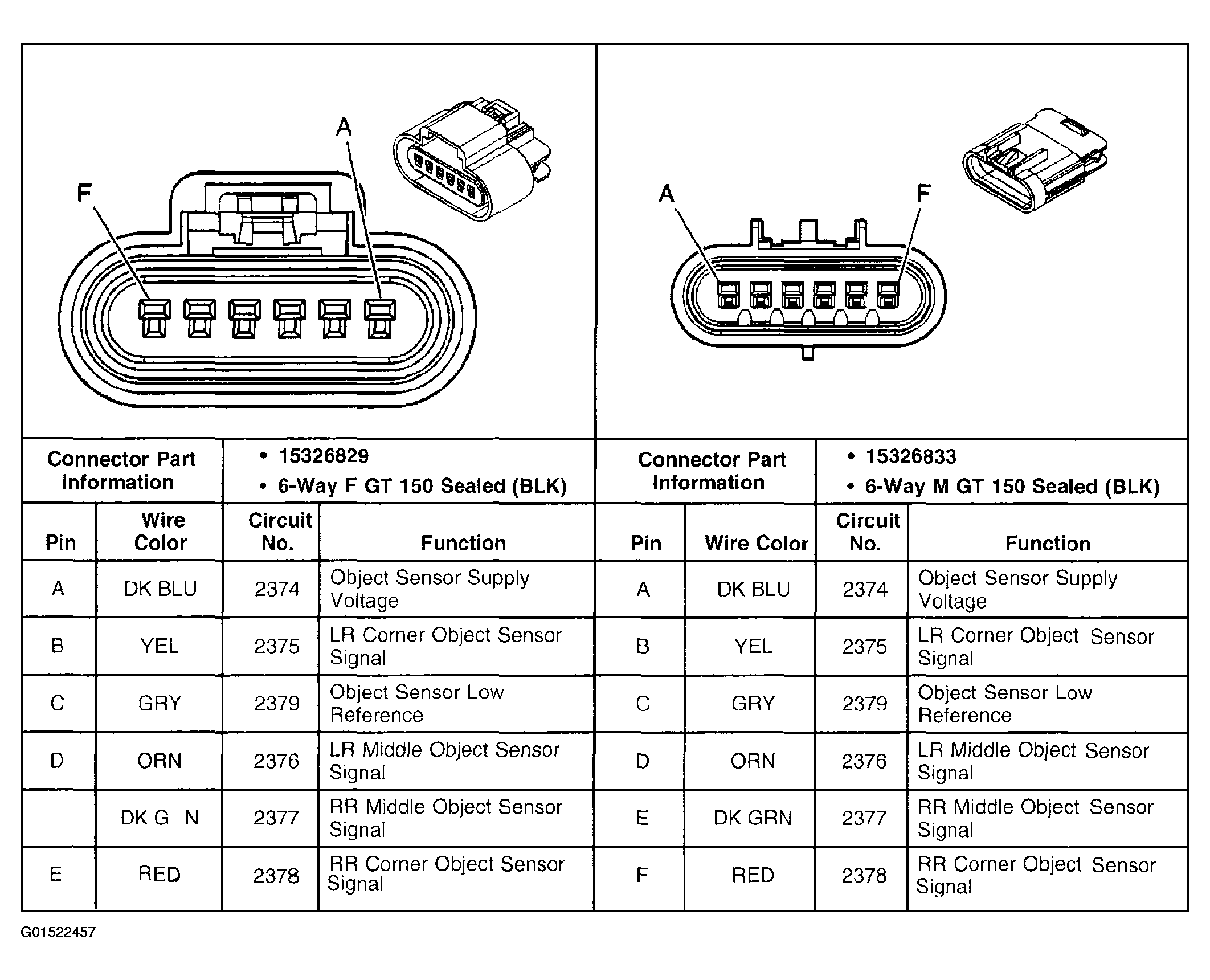

Fig 1: In-Line Connector C411
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
