SP215 Connector End View
SP215 Connector End View

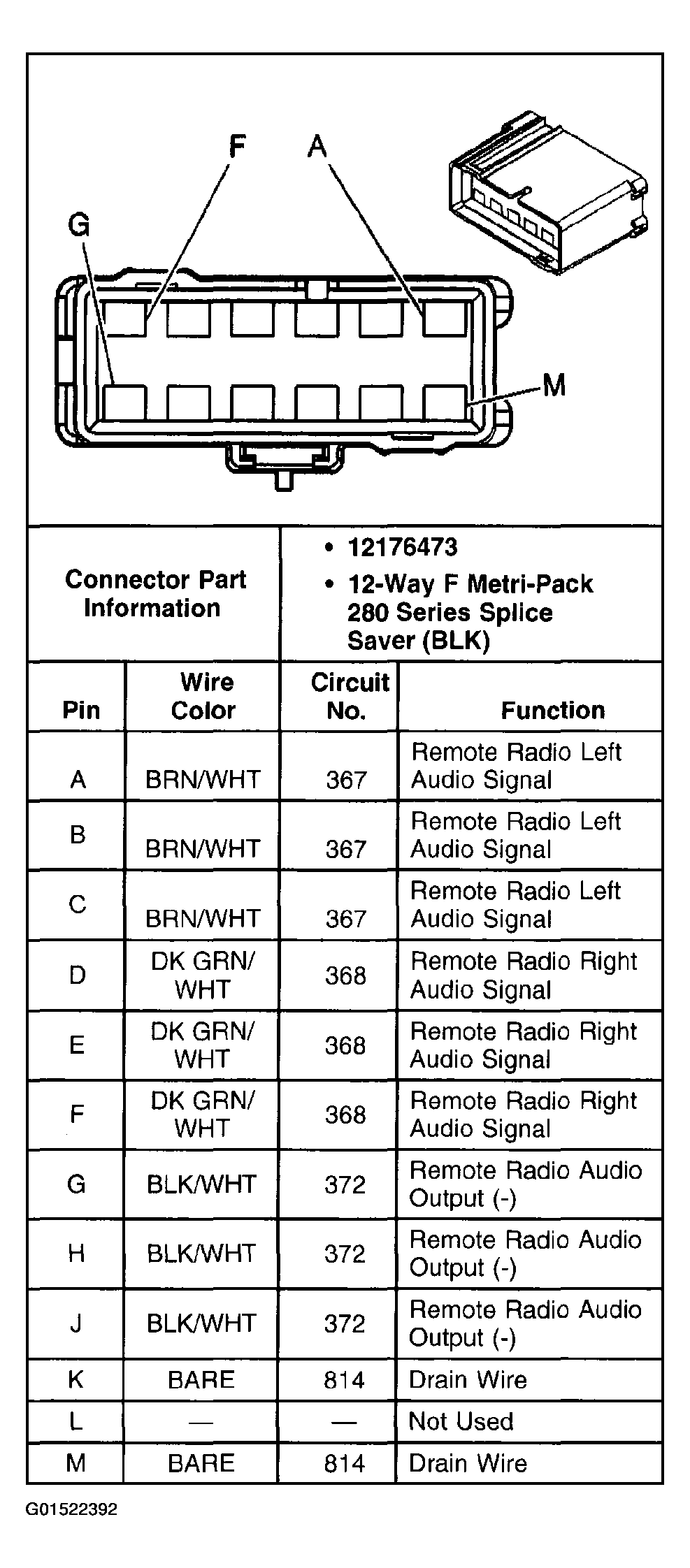

Fig 1: SP215
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
