SP409 Connector End View

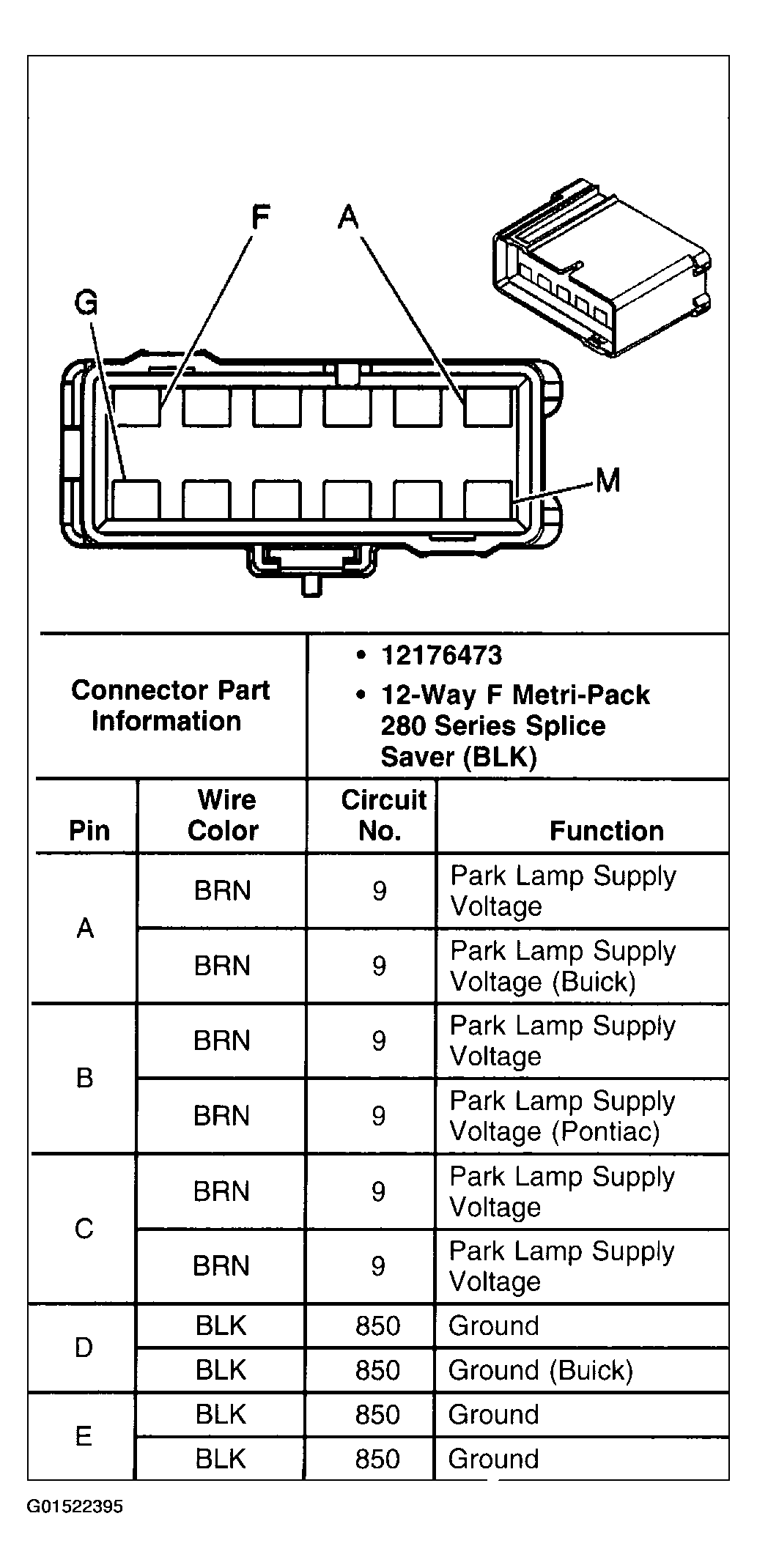

Fig 1: SP409
G01522395Courtesy of GENERAL MOTORS CORP.

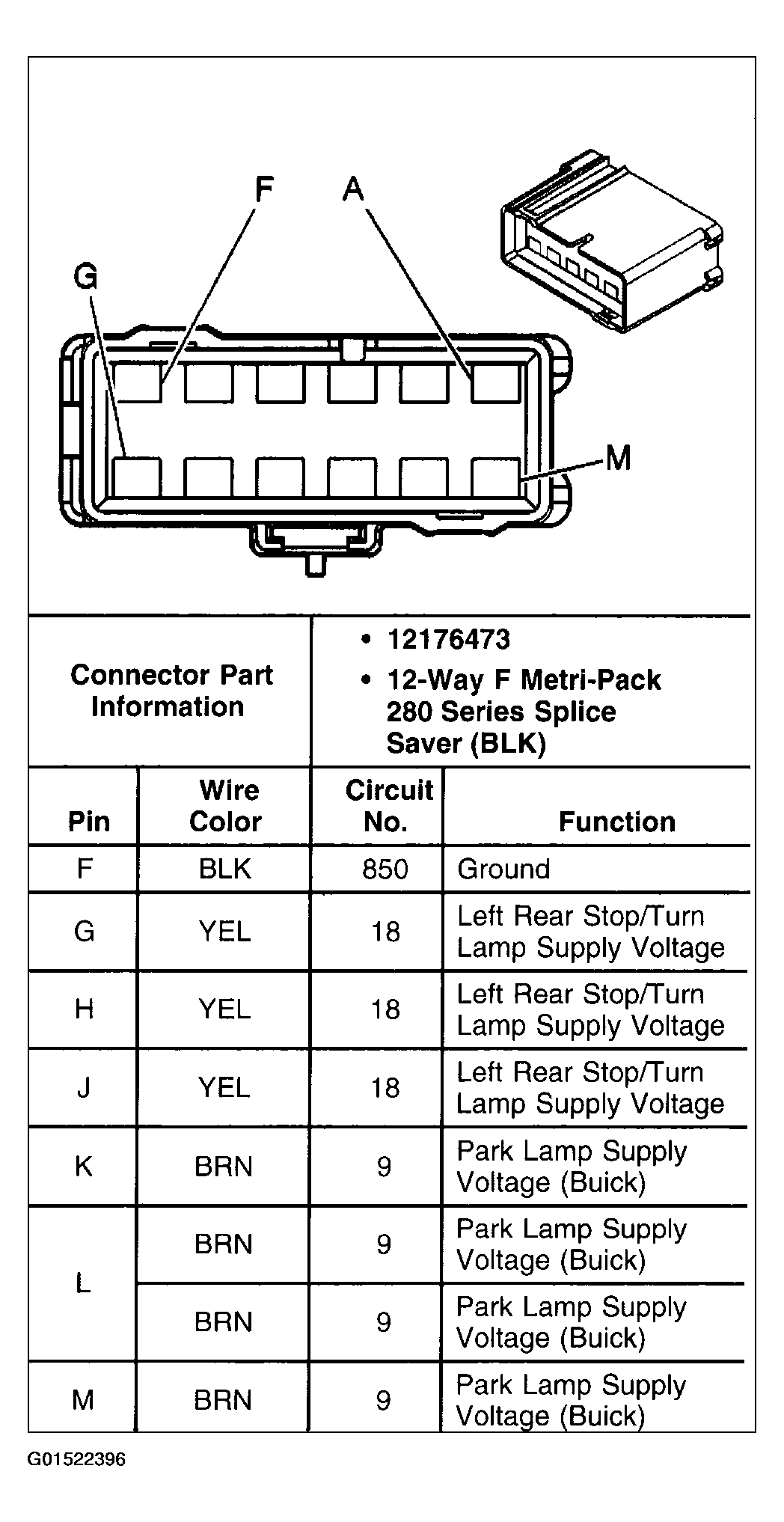

Fig 1: SP409
G01522396Courtesy of GENERAL MOTORS CORP.
